Toyota COROLLA 后组合灯 — Figure 8111

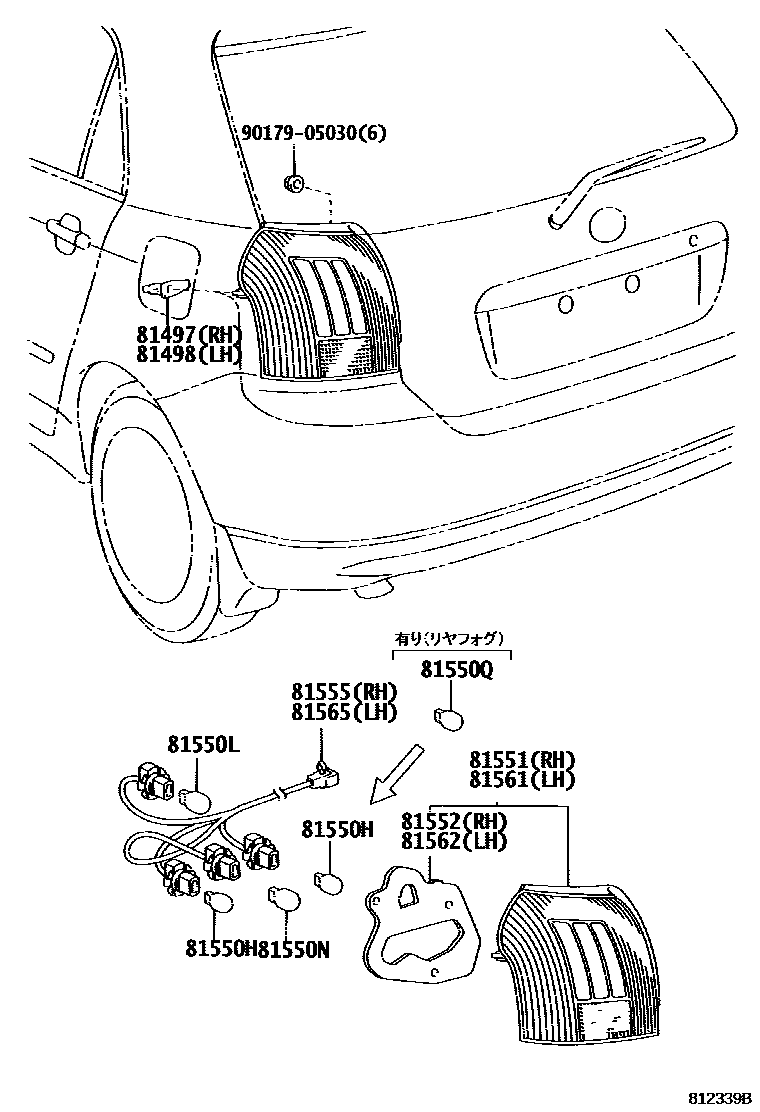

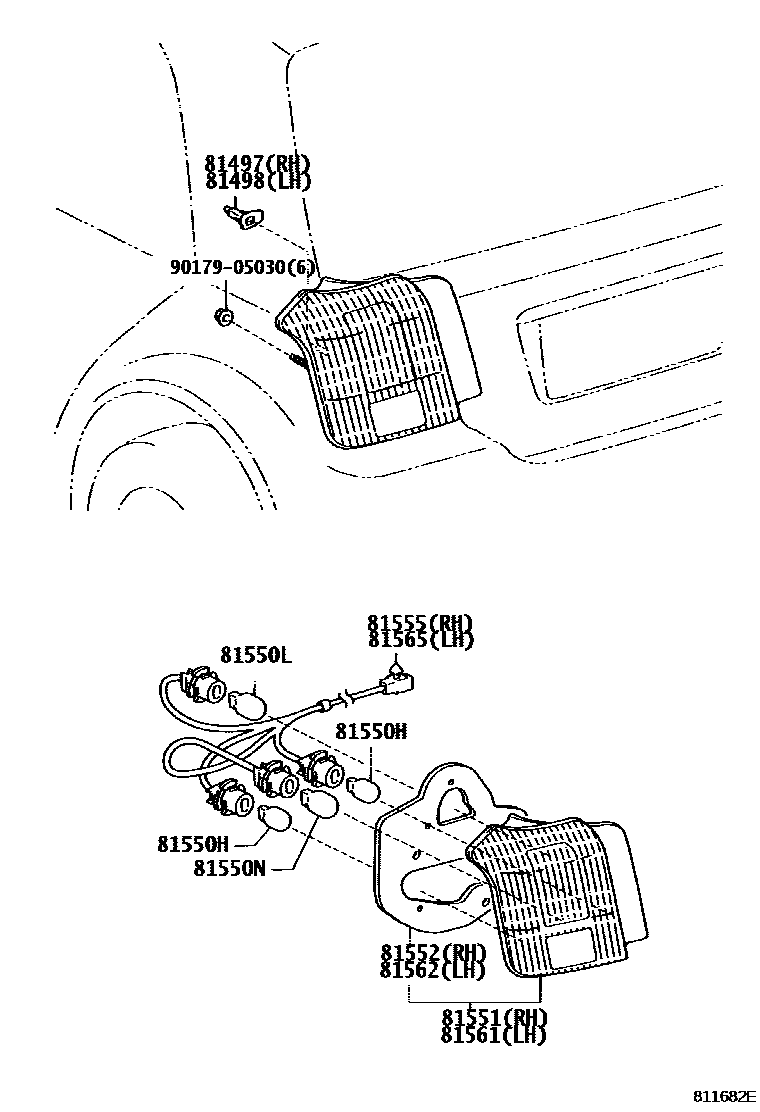

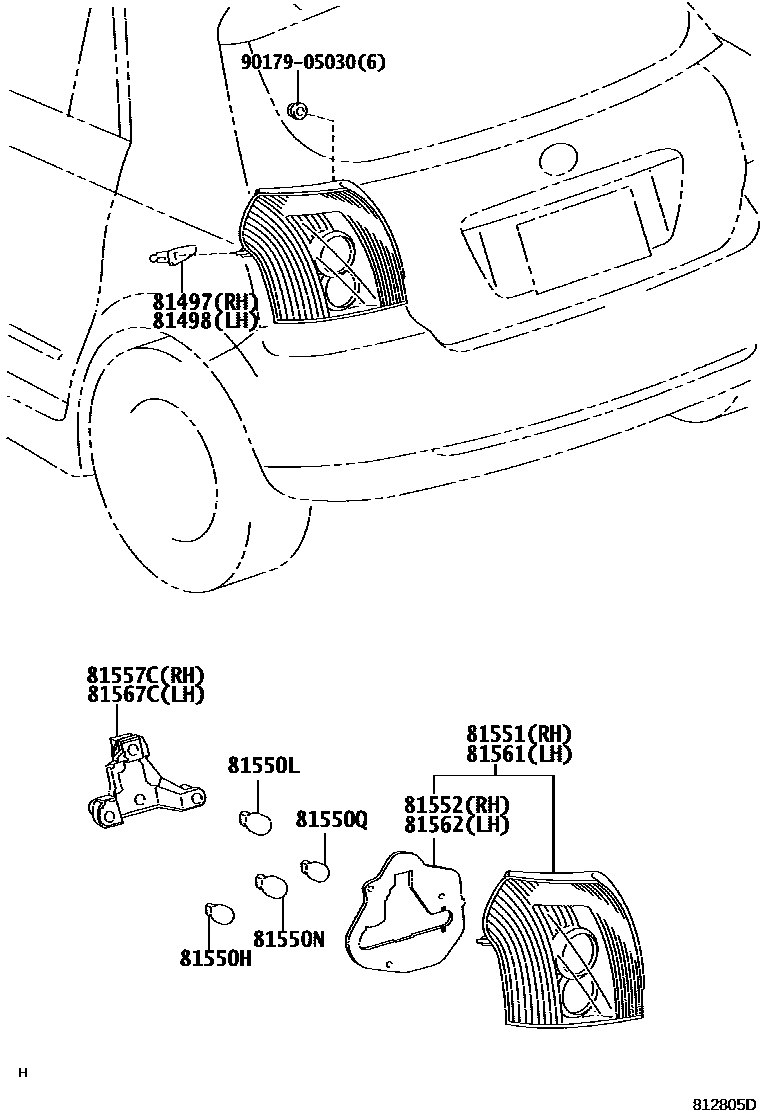

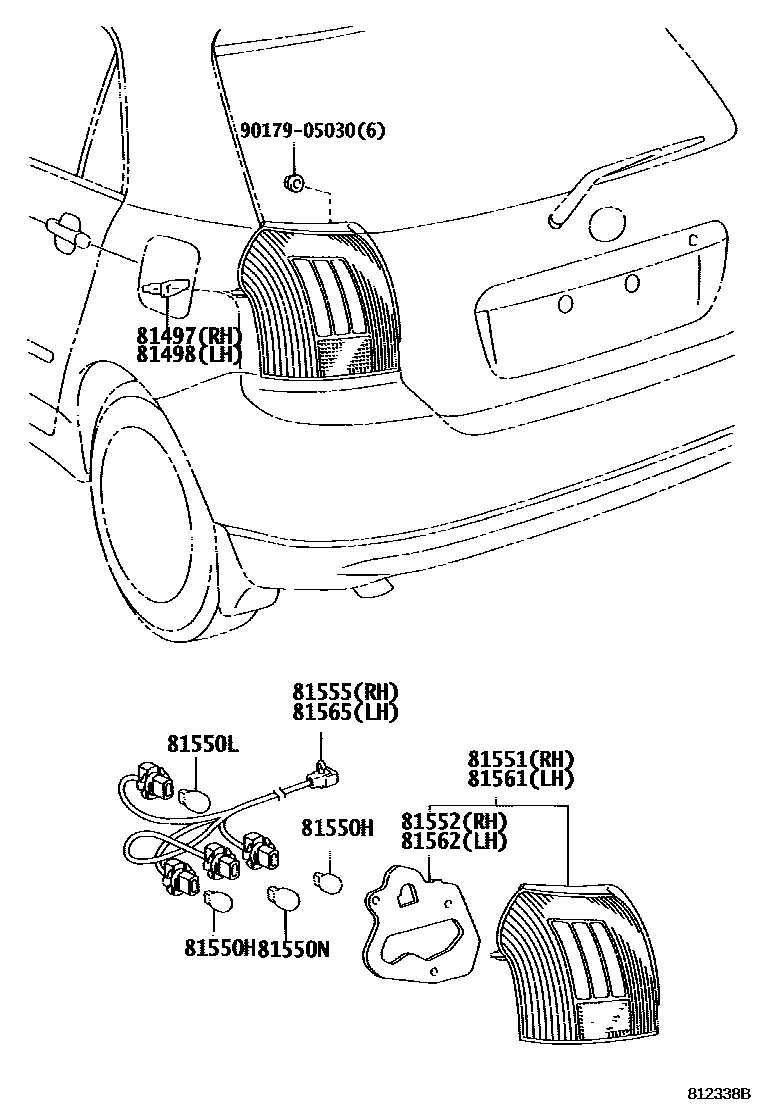

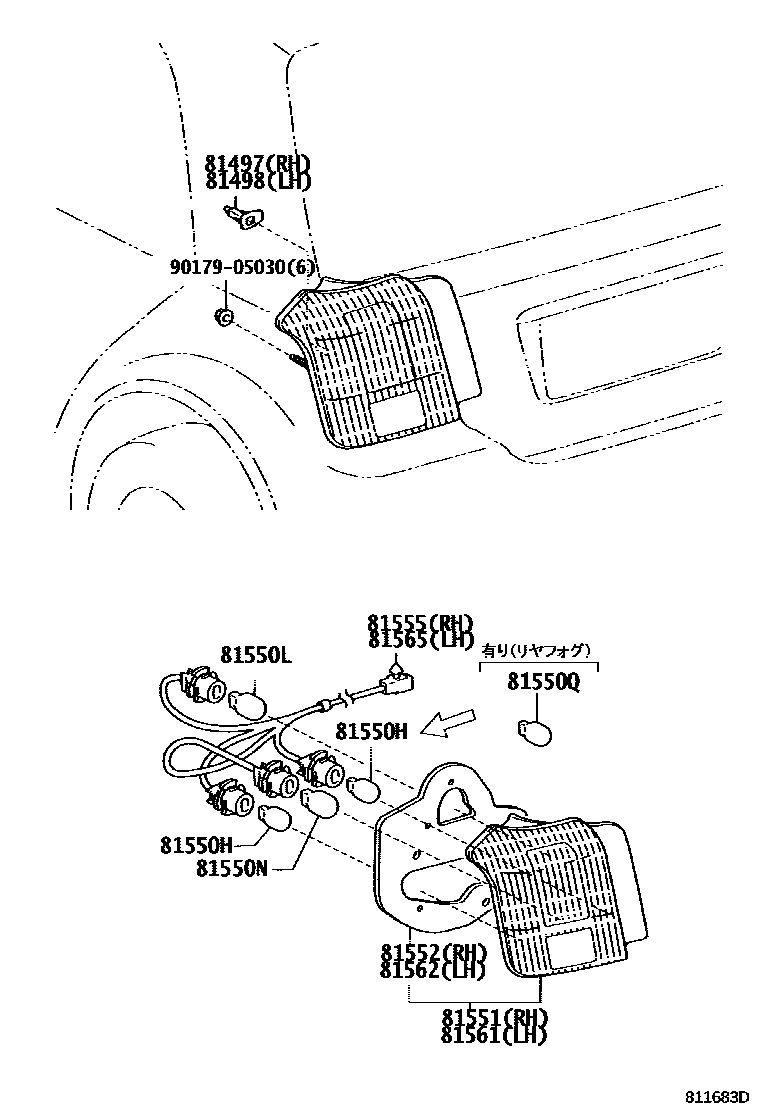

Toyota COROLLA EPC diagram 8111, 后组合灯, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81497 | Right rear combination lamp cover | 81497-13010 |
| 81498 | Left rear combination lamp cover | 81498-13010 |
| 81550H | Tail and brake light bulbs | 90981-13044 · 99132-21210 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15001 · 99132-11210 |
| 81550N | reversing light bulb | 90981-13043 · 99132-11210 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 · 99132-11210 |
| 81551 | Right rear combination lamp shade | 81551-13480 · 81551-13490 · 81551-13550 · 81551-13560 · 81551-13650 · 81551-13660 |
| 81552 | Right rear combination lamp shade gasket | 81552-13480 · 81552-13550 · 81552-13660 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13480 · 81555-13490 · 81555-13550 · 81555-13560 |
| 81557C | Right rear combination lamp cover | 81557-13660 |
| 81561 | Left rear combination lamp shade | 81561-13470 · 81561-13480 · 81561-13490 · 81561-13500 · 81561-13620 |
| 81562 | Left rear combination lamp shade gasket | 81552-13480 · 81552-13550 · 81552-13660 · 81562-13470 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-13470 · 81565-13480 · 81565-13490 · 81565-13500 |
| 81567C | Left rear combination lamp cover | 81567-13620 |
