Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 3 images and 7 PNC and OE references.

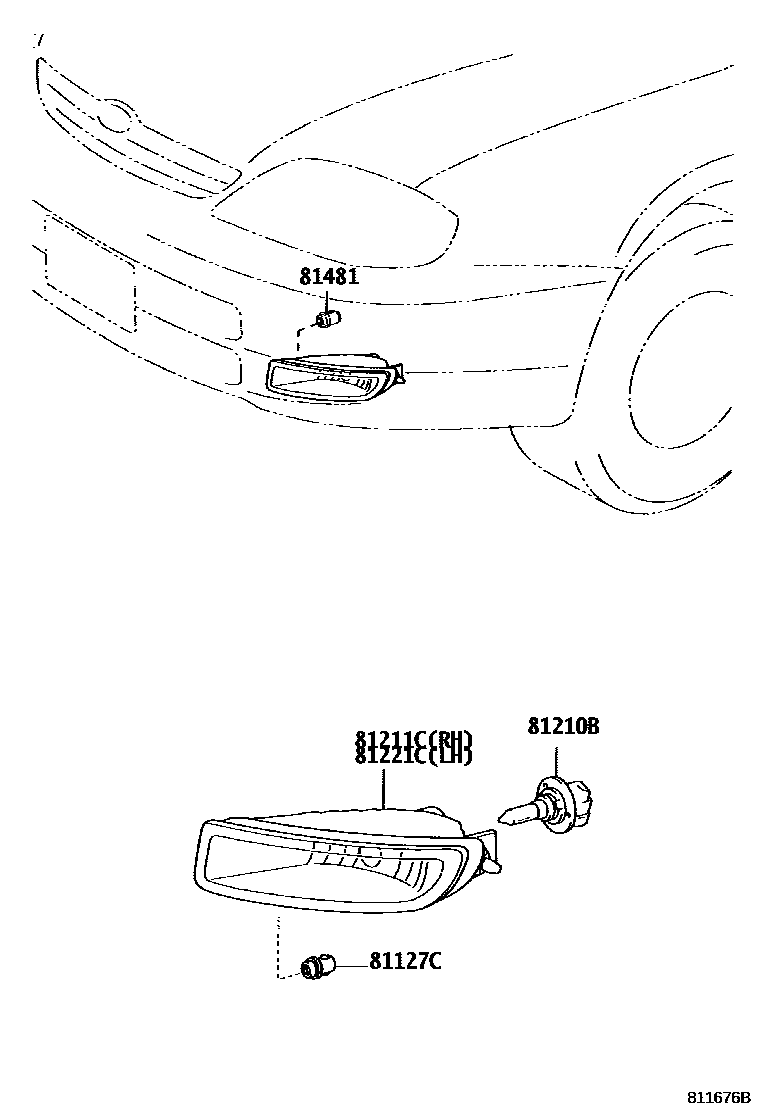

Toyota COROLLA Fog Lamp EPC diagram — 811676B
Fog Lamp — 811676B (200101 – 200209)

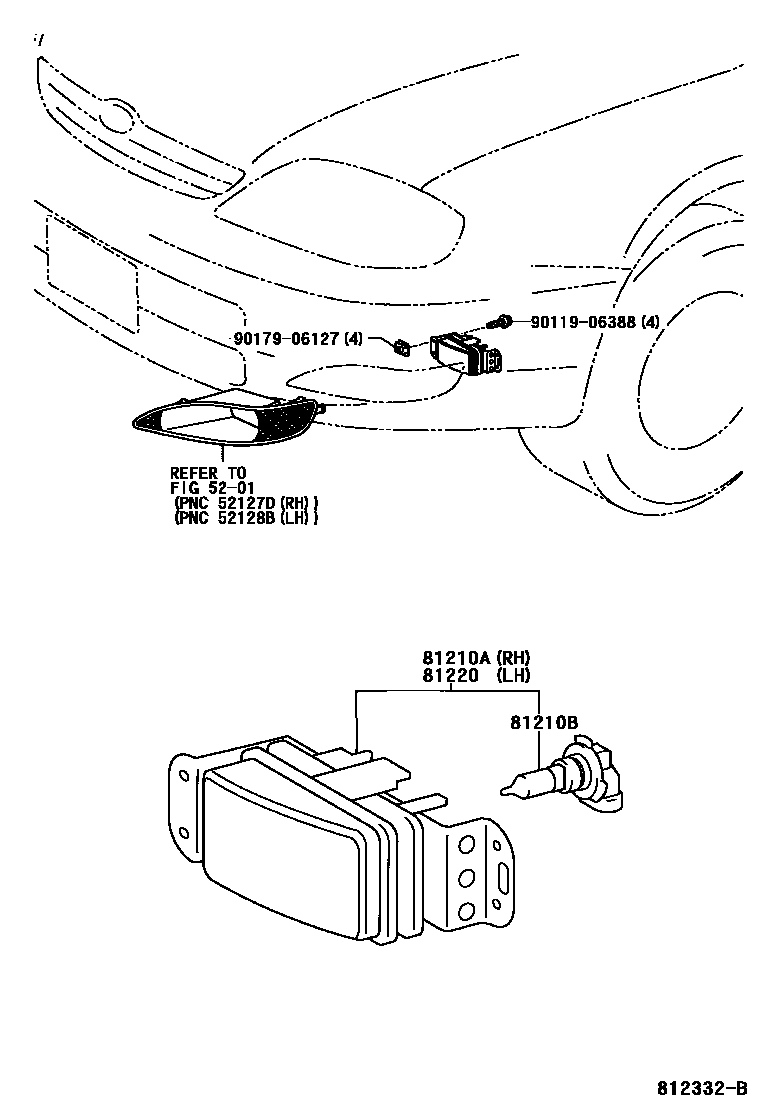

Toyota COROLLA Fog Lamp EPC diagram — 812332B
Fog Lamp — 812332B (200209 – 200404)

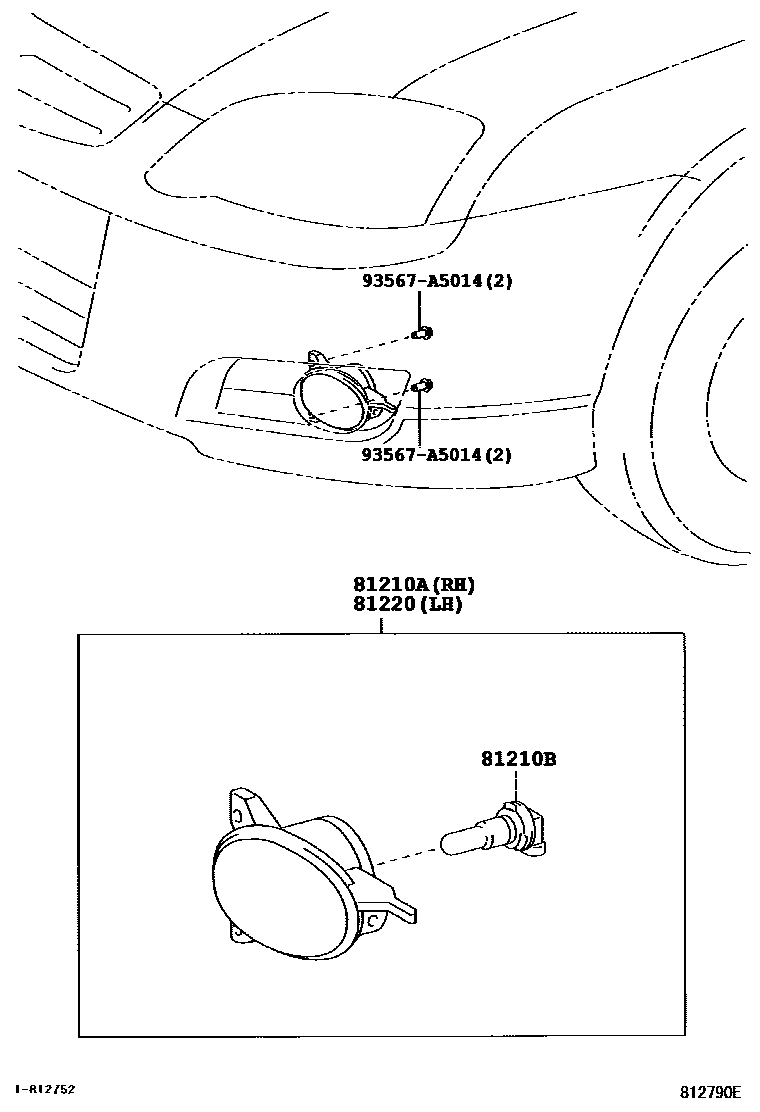

Toyota COROLLA Fog Lamp EPC diagram — 812790E
Fog Lamp — 812790E (200404 – 200609)

PNC and OE references

PNCPart nameOE numbers
81127CFog light support90075-10811
81210ARight fog light assembly81210-02051 · 81210-02090
81210Bfog light bulb90080-81100 · 90981-13047 · 90981-13075 · 90981-13081 · 90981-WD011 · 90981-WD012
81211CRight fog light assembly81211-12150
81220Left fog light assembly81220-02051 · 81220-02090
81221CLeft fog light assembly81221-12160
81481Fog light bracket81481-10030
