Toyota COROLLA Headlamp — Figure 8101

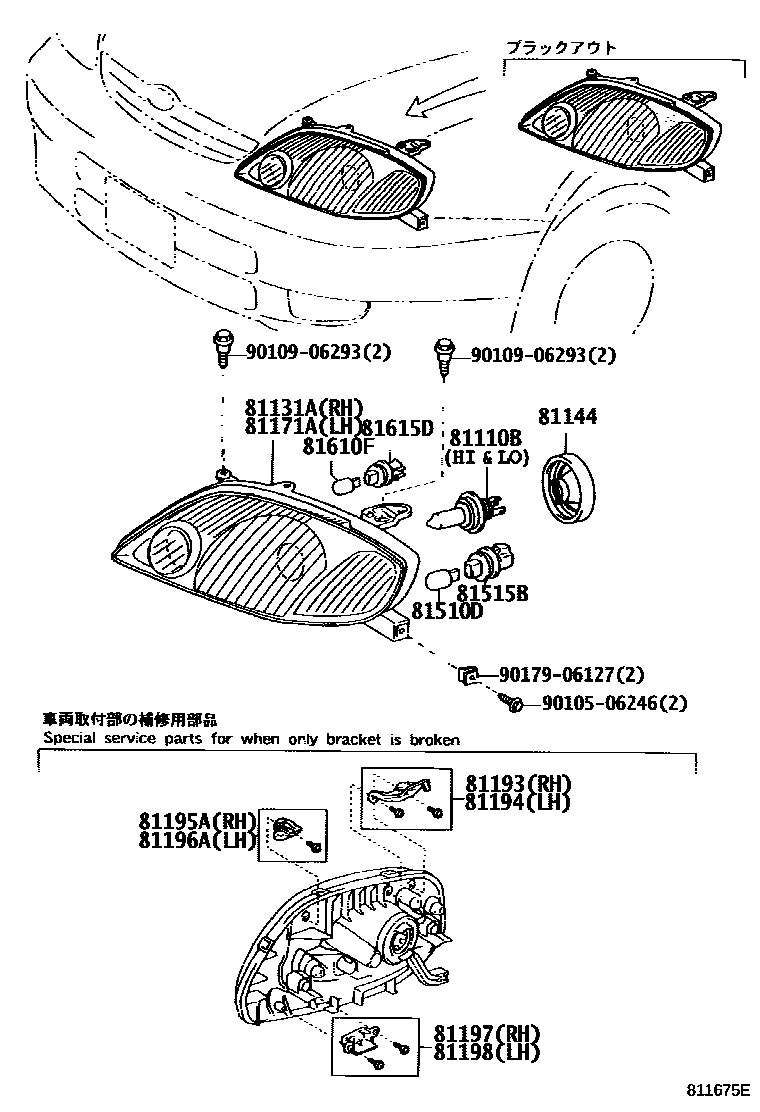

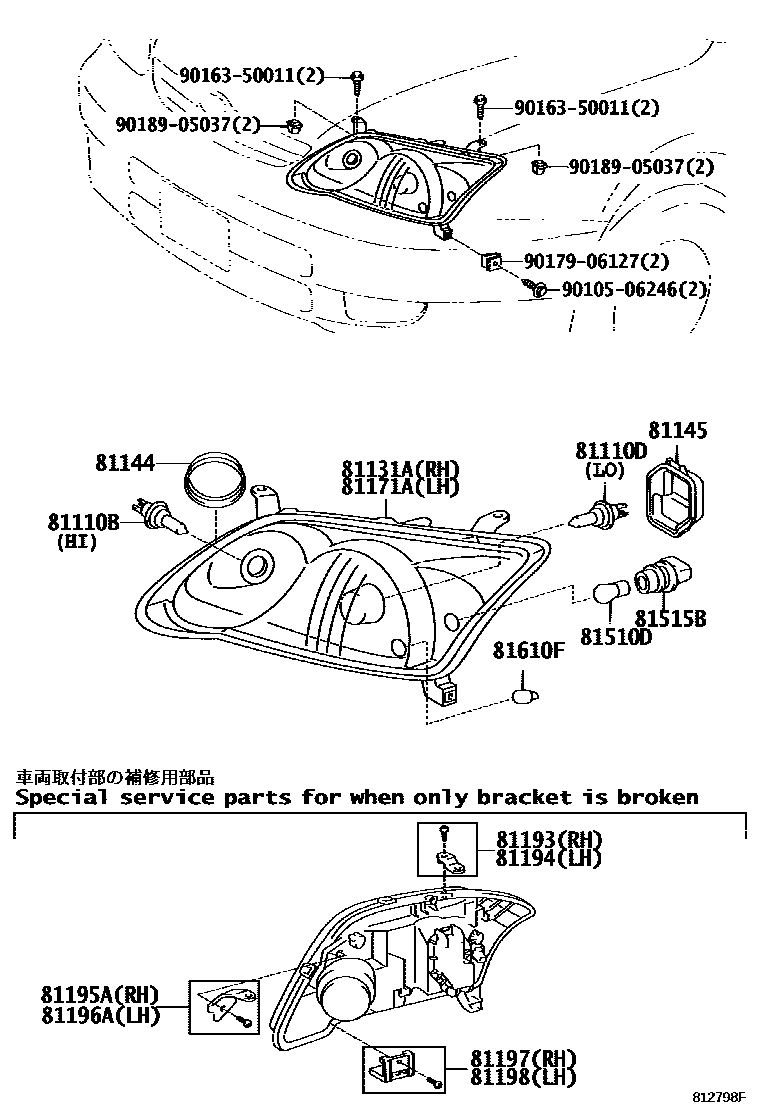

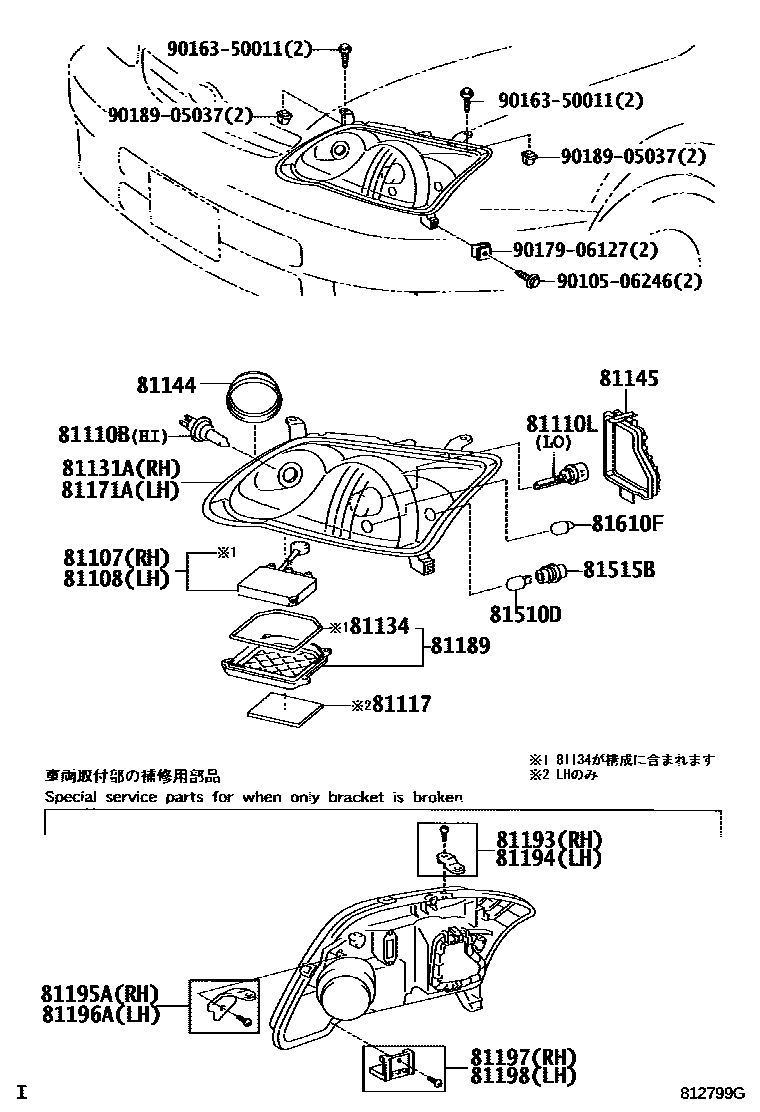

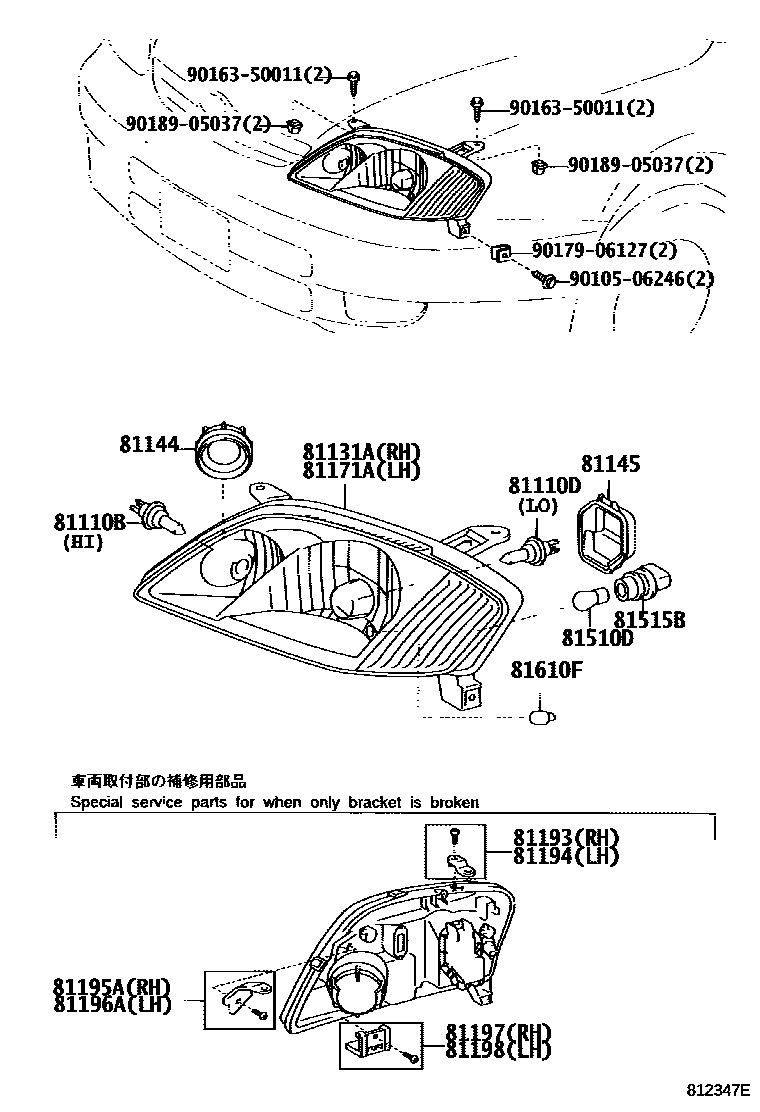

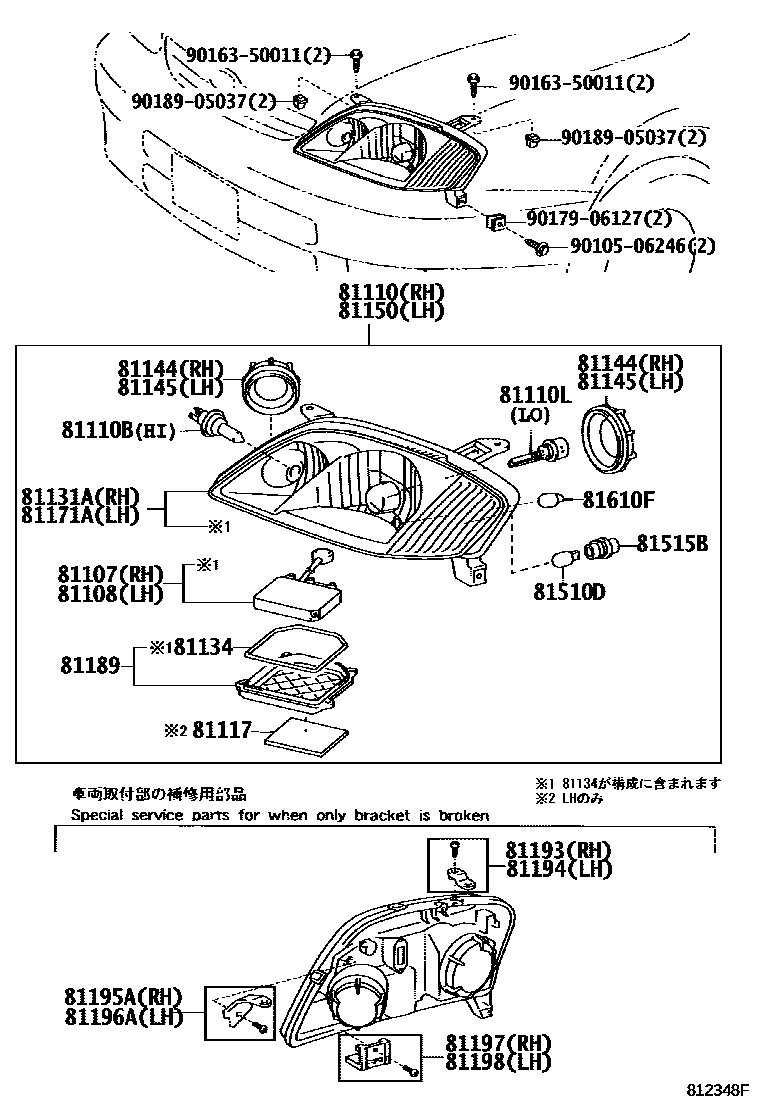

Toyota COROLLA EPC diagram 8101, Headlamp, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-52280 |
| 81108 | Left headlight control ECU sub-assembly | 81107-52280 |
| 81110 | Right headlight assembly | 81110-13280 · 81110-13290 |
| 81110B | Bulb (for headlight No. 1) | 90981-13055 · 90981-13058 · 90981-13079 |
| 81110D | Bulb (for headlight No. 2) | 90981-13079 |
| 81110L | Discharge headlight bulb | 90981-20009 |
| 81117 | Headlight housing seal | 81117-13290 |
| 81131A | Right headlight assembly assembly | 81130-13280 · 81130-13350 · 81130-1E600 · 81130-1E620 · 81145-13290 · 81145-13360 |
| 81134 | headlight gasket | 81134-52280 |
| 81144 | No. 1 headlight cover | 81135-13290 · 81139-13330 · 90075-65002 |
| 81145 | No. 2 headlight cover | 81135-13280 · 81135-13290 · 81135-13360 · 81175-13280 · 81175-13360 |
| 81150 | Left headlight assembly | 81150-13280 · 81150-13290 |
| 81171A | Left headlight assembly assembly | 81170-13280 · 81170-13350 · 81170-1E480 · 81170-1E500 · 81185-13290 · 81185-13360 |
| 81189 | headlight cover | 81139-13290 · 81189-13290 |
| 81193 | Right headlight upper protective ring | 81193-12010 · 81193-13020 |
| 81194 | Left headlight upper protective ring | 81193-13020 · 81194-12010 |
| 81195A | Right headlight lower protection ring | 81195-12010 · 81195-13020 |
| 81196A | Left headlight lower protection ring | 81196-12010 · 81196-13020 |
| 81197 | Right headlight lower bracket | 81197-12010 · 81197-13010 |
| 81198 | Left headlight lower bracket | 81197-13010 · 81198-12010 |
| 81510D | front turn signal light bulb | 90981-15011 · 90981-15020 |
| 81515B | Front turn signal lamp holder | 81515-42050 · 90069-81027 · 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60001 |
