Toyota COROLLA 燃油箱和燃油管 — Figure 7701

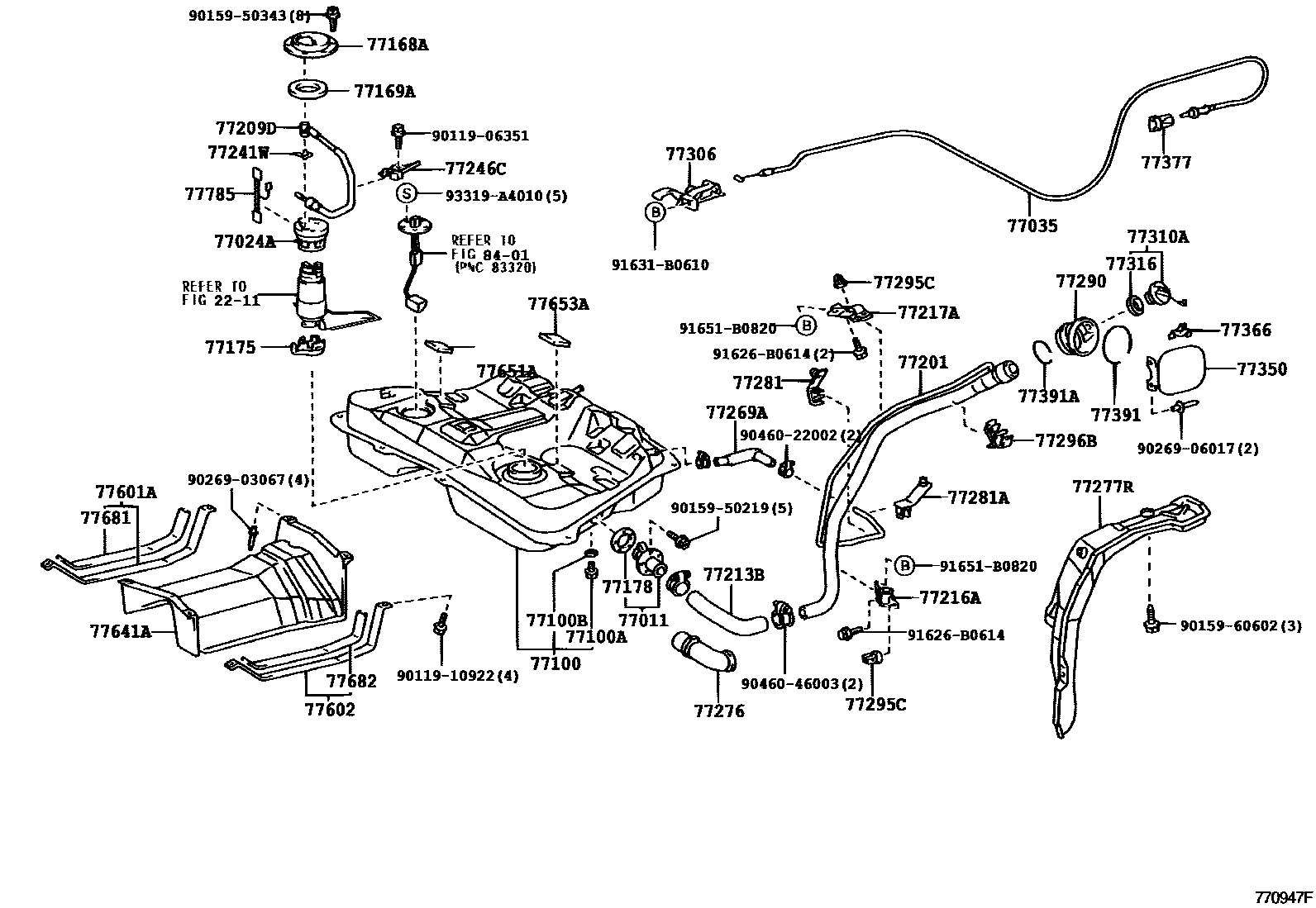

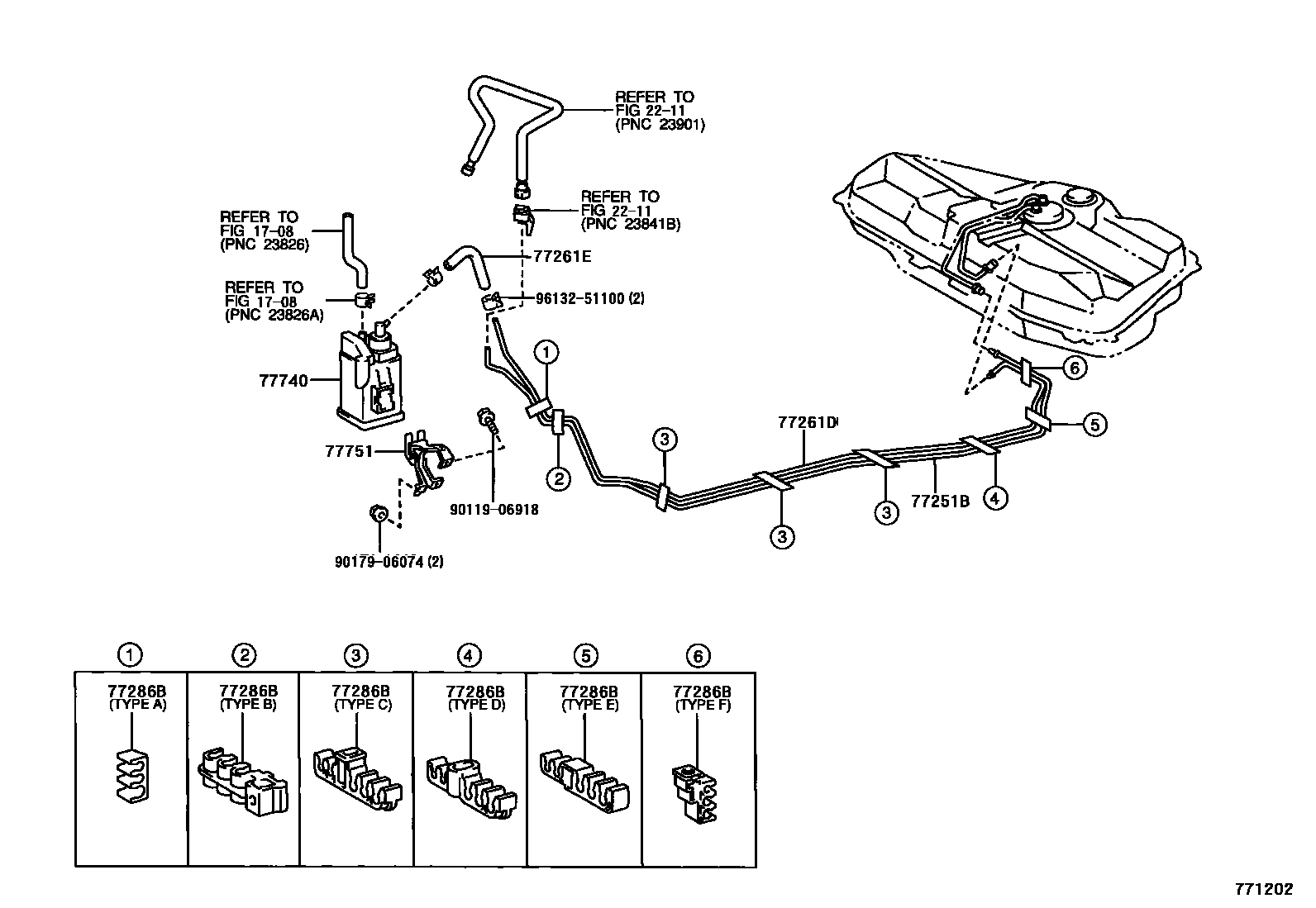

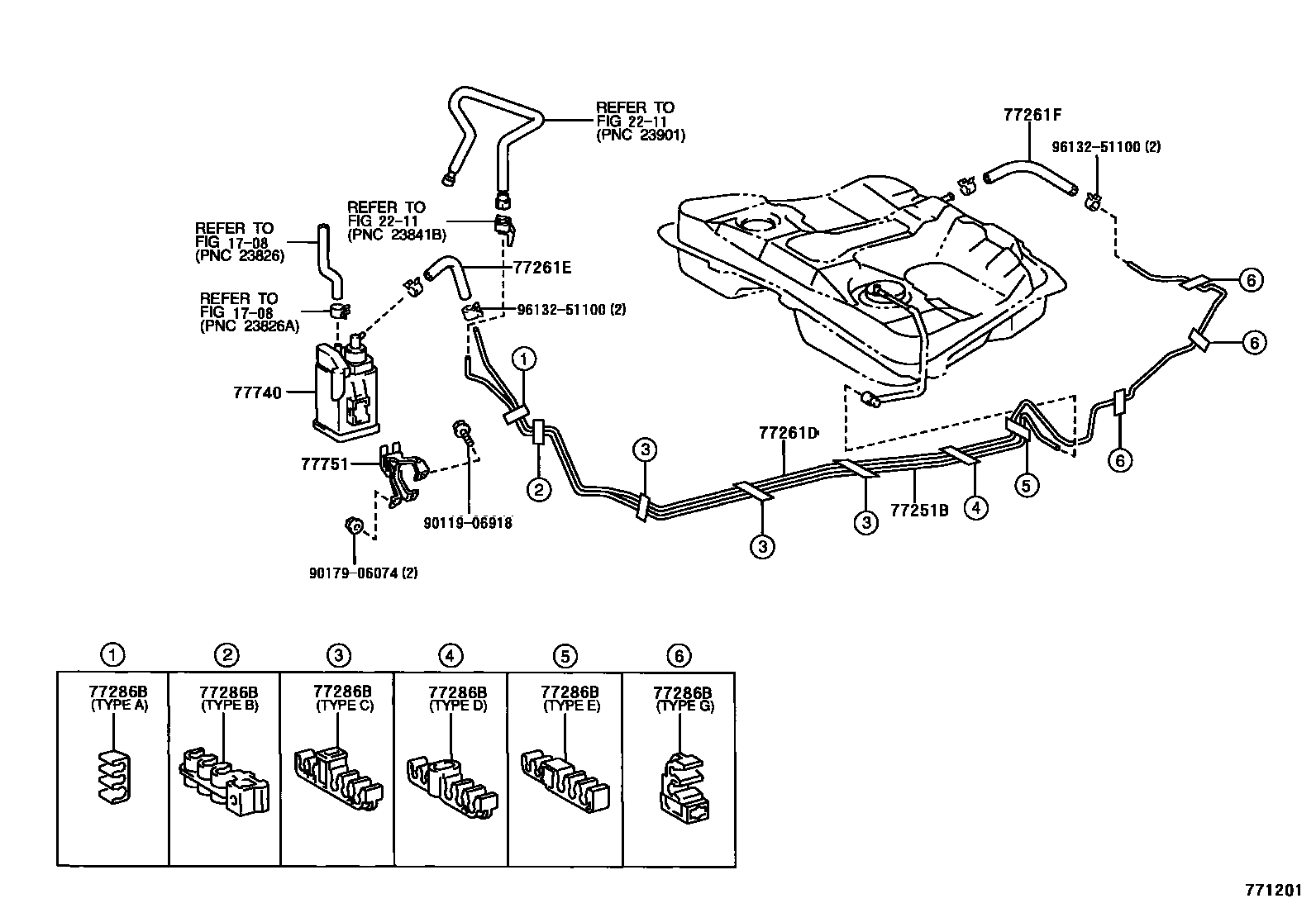

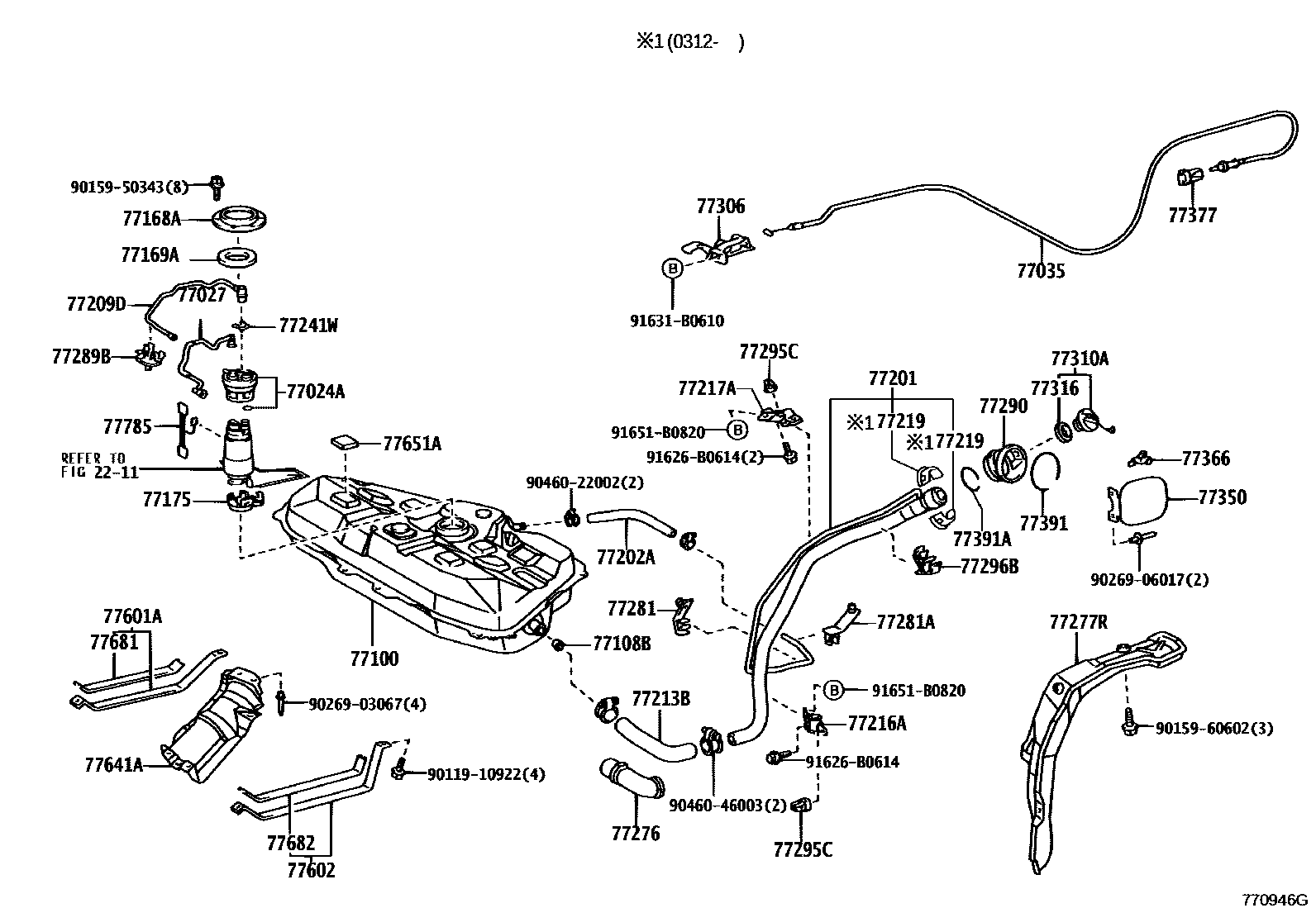

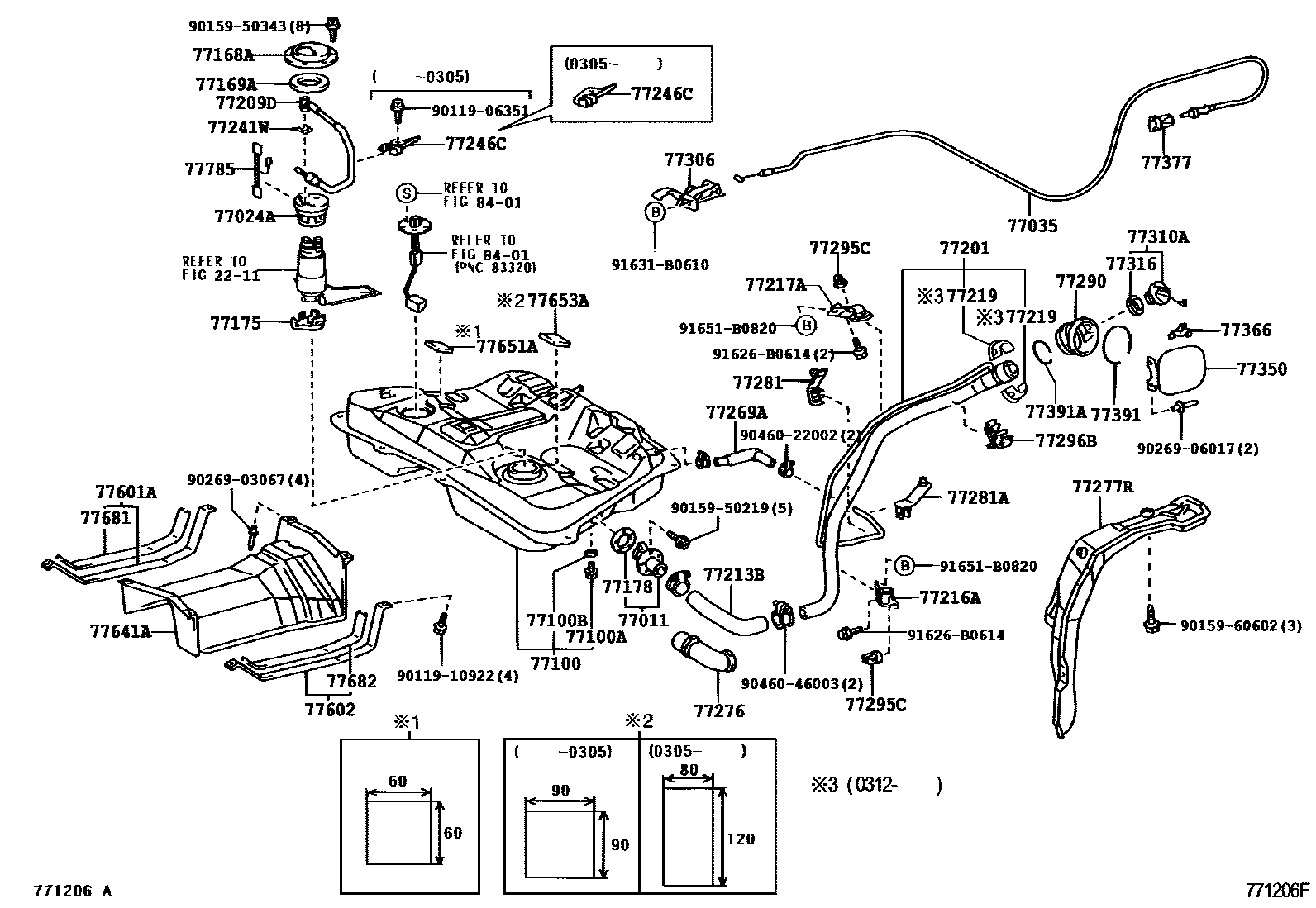

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 5 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-63010 |
| 77024A | Fuel absorber sub-assembly | 77024-12010 · 77024-30070 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-12020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12400 |
| 77100 | fuel tank assembly | 77001-12820 · 77001-12830 · 77001-12840 · 77001-12A70 · 77001-12C40 |
| 77100A | Screw plug (for fuel tank) | 90105-12116 |
| 77100B | Gasket (for fuel tank) | 90430-12245 |
| 77108B | Fuel tank refueling check valve sub-assembly | 77108-12040 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33050 · 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-30050 · 77175-47010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12580 · 77201-12591 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-12160 · 77209-12170 |
| 77213B | Fuel tank to filler pipe hose | 77213-32090 · 77213-63010 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32050 |
| 77219 | Fuel tank filler pipe cap | 77219-52050 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-21010 · 77246-63010 |
| 77251B | main fuel pipe | 77251-12640 · 77251-12660 · 77251-12670 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12440 · 77261-12450 · 77261-12460 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95337-06013 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 95337-06018 |
| 77269A | fuel tank breather hose | 77269-32010 |
| 77276 | Fuel hose protector | 77276-12050 |
| 77277R | Fuel tank filler pipe protection device | 77277-12170 |
| 77281 | No. 1 main fuel pipe bracket | 77281-32040 |
| 77281A | Fuel filler pipe clamp | 77281-12070 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12060 · 77286-47020 · 77289-20060 · 77298-12060 · 77298-12100 · 77298-20080 · 77299-32030 |
| 77289B | No. 3 fuel pipe clamp | 77289-12030 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12150 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-12030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-13020 |
| 77310A | Fuel tank cap assembly | 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-13080 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-12230 · 77601-12240 |
| 77602 | Fuel tank upper shell sub-assembly | 77601-12240 · 77602-12180 |
| 77641A | No. 1 fuel tank protective shell | 77606-32040 · 77641-12160 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77653A | No. 3 fuel tank liner | 77653-60020 · 77653-60060 |
| 77681 | Fuel tank right side strap seat | 77681-34030 · 77682-16010 |
| 77682 | Fuel tank left side strap seat | 77681-32060 · 77682-16010 |
| 77740 | Carbon canister assembly | 77740-12690 · 77740-12710 |
| 77751 | Carbon canister base bracket | 77705-12110 · 77750-12170 |
| 77785 | fuel pump wiring harness | 77785-52020 |
