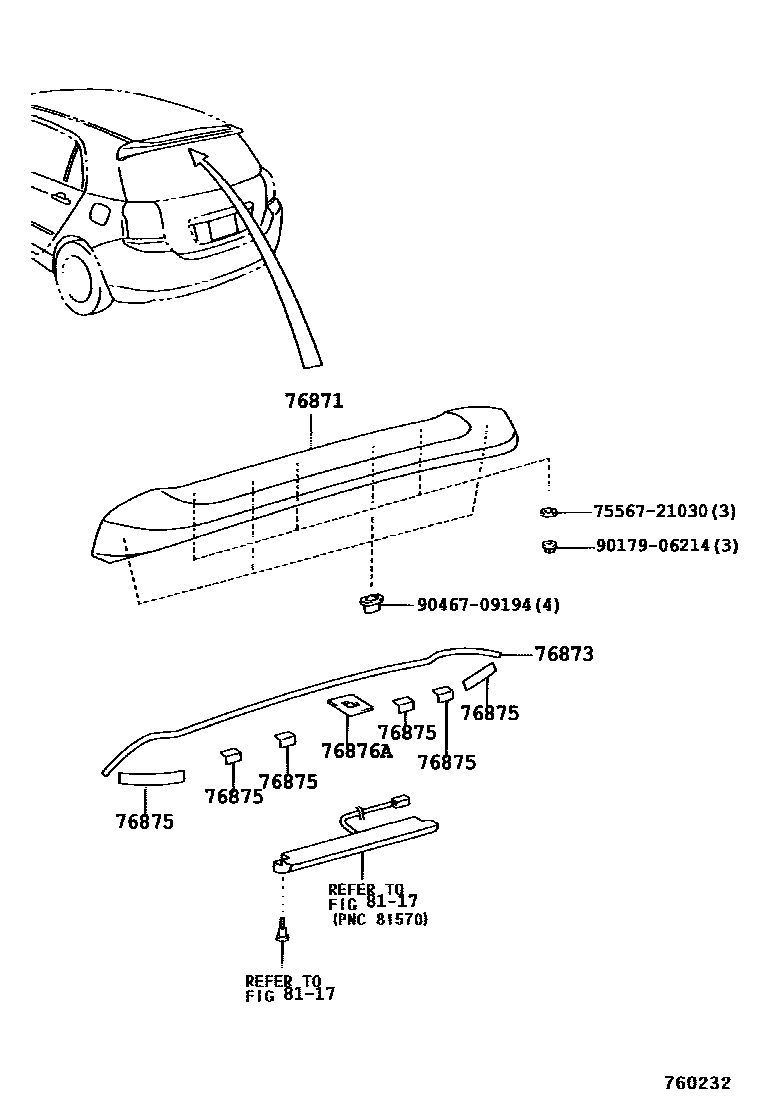

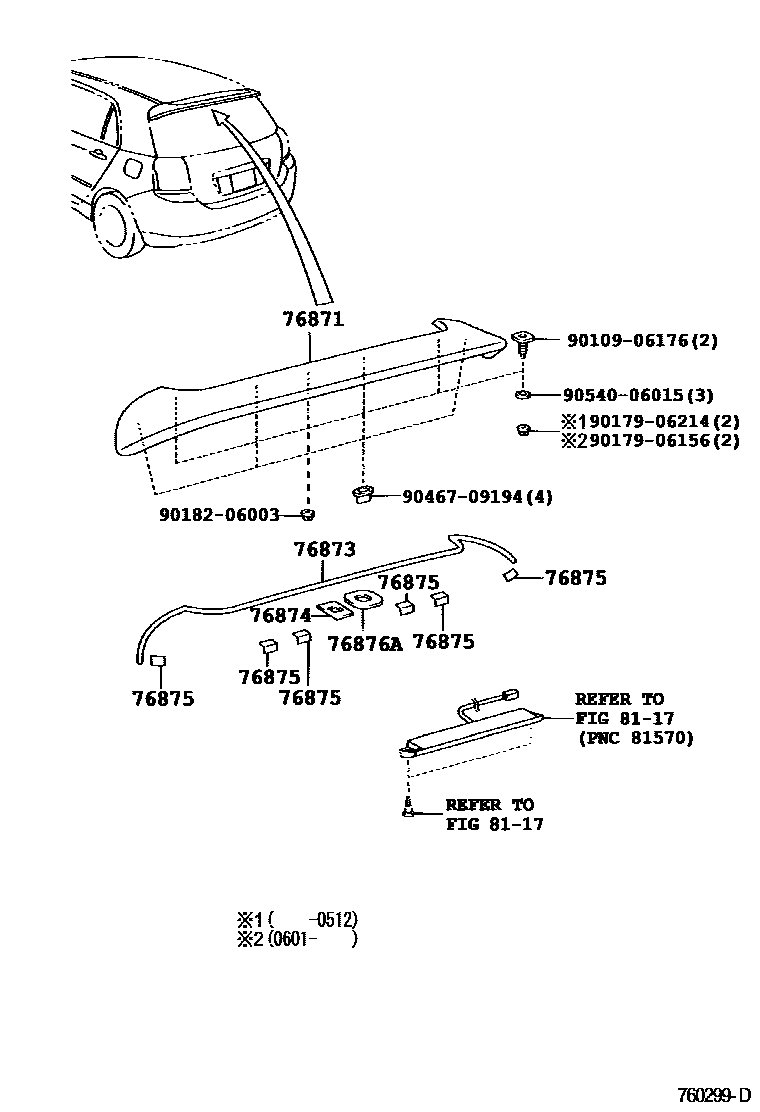

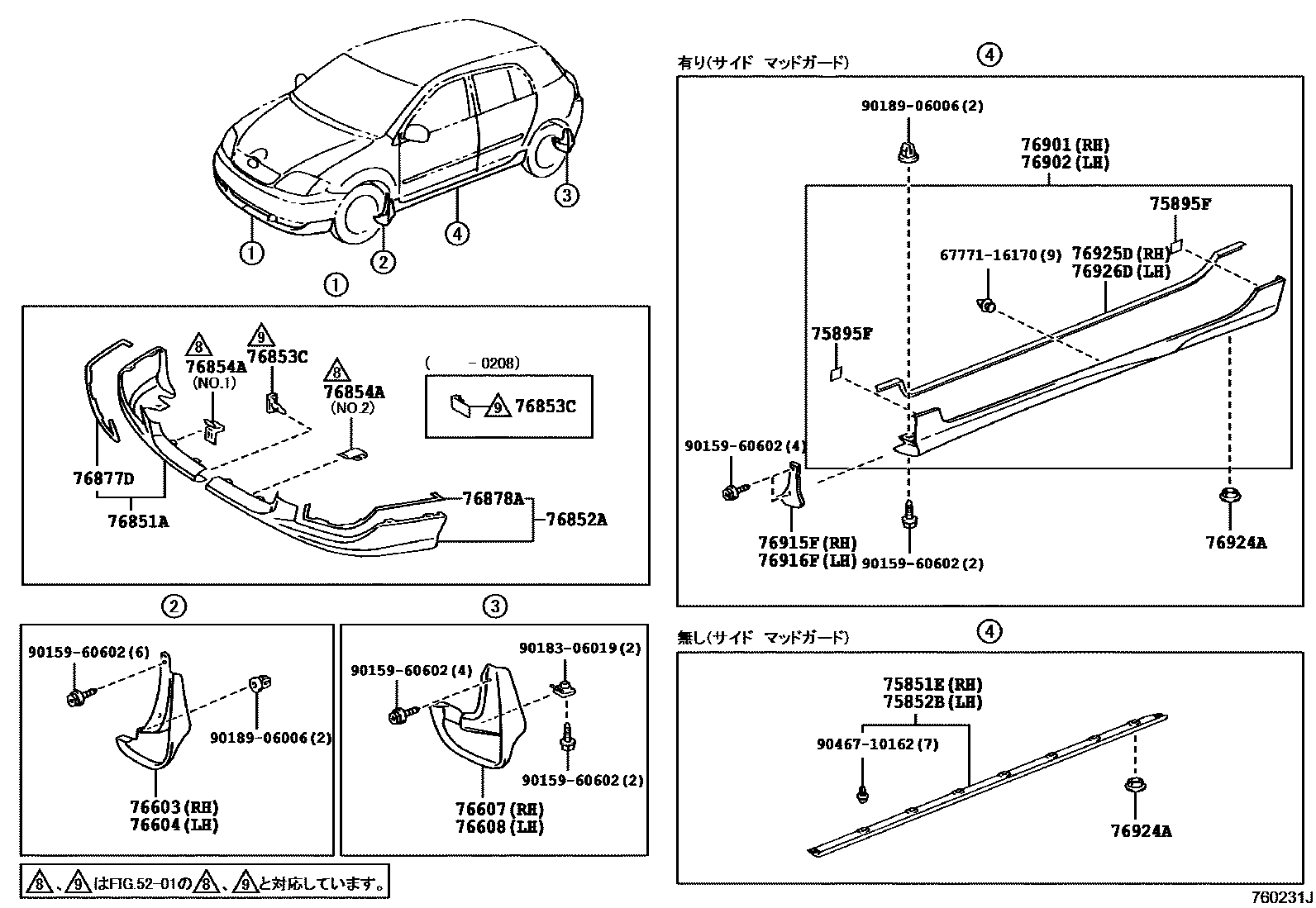

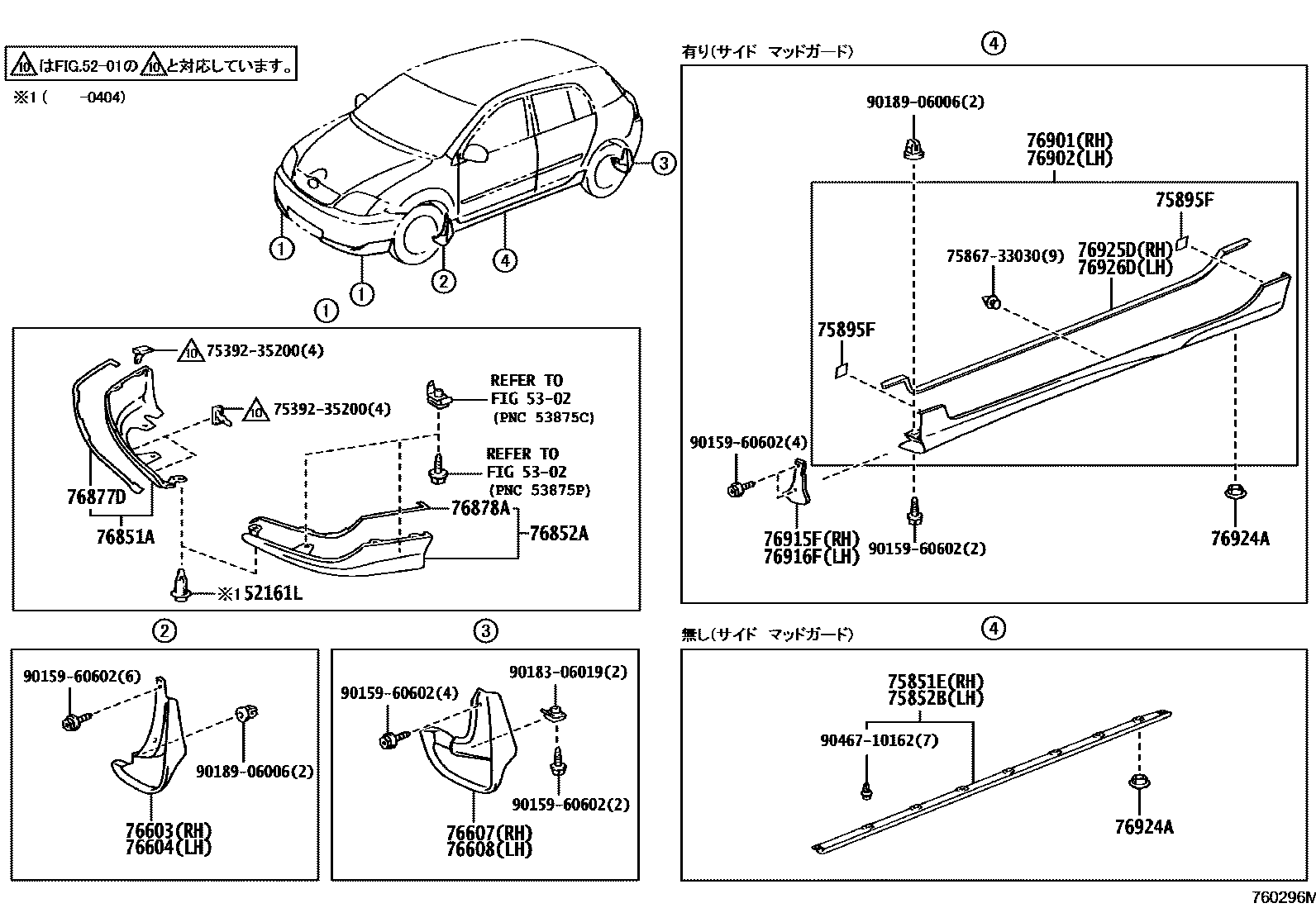

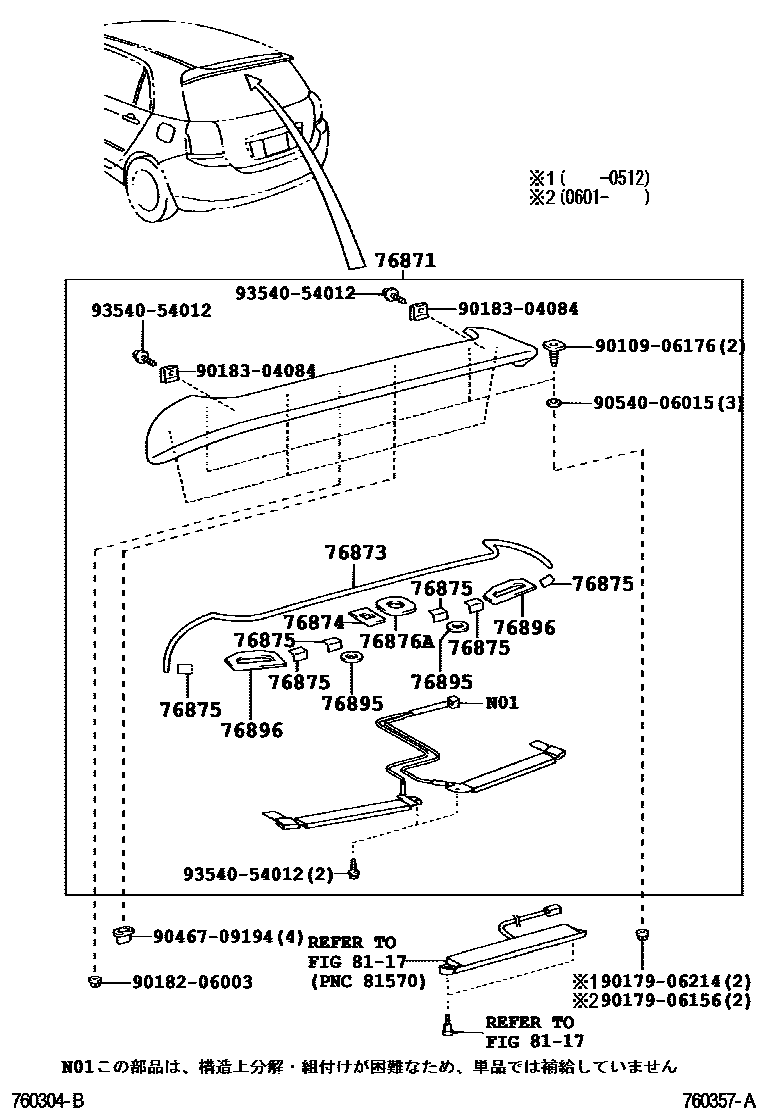

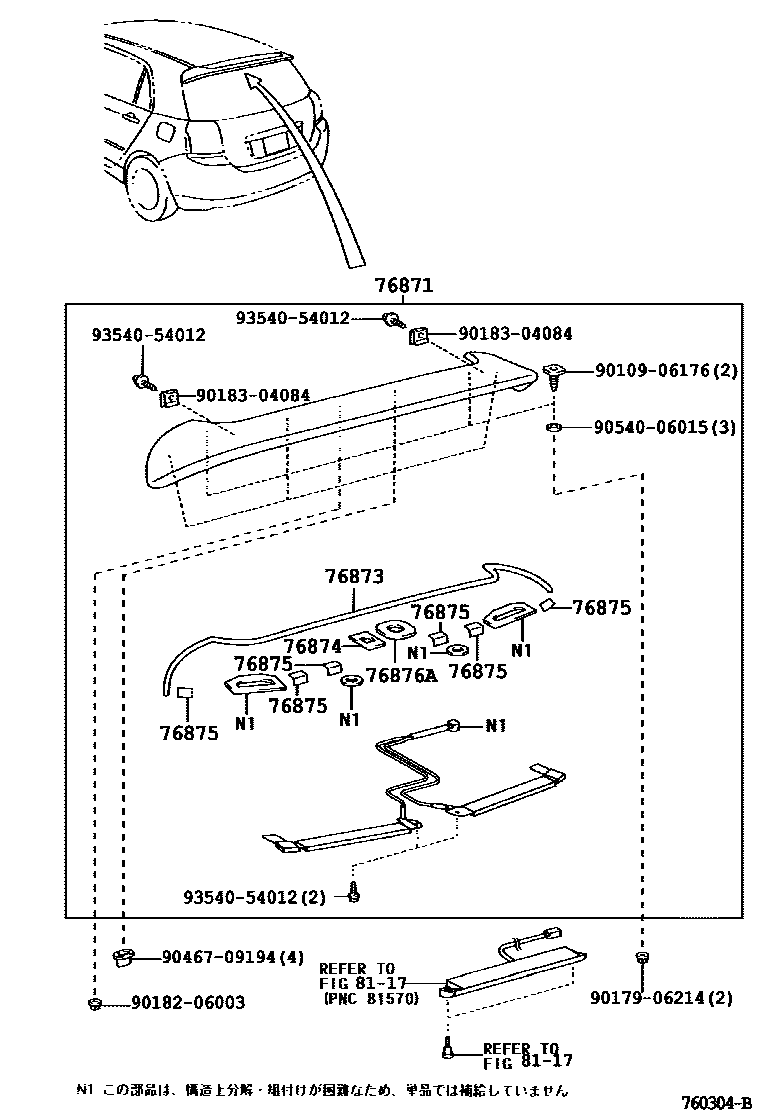

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161L | front spoiler insert | 52161-16010 |
| 75851E | Right body door sill panel protection strip | 75851-12090 · 75851-12091 |
| 75852B | Left body door sill panel protection strip | 75852-12060 · 75852-12061 |
| 75895F | No. 1 protective strip tape | 75895-13020 |
| 76853C | No. 1 front spoiler fixing piece | 75392-35200 · 76853-10010 |
| 76854A | No. 2 front spoiler fixing piece | 76854-13010 · 76854-44010 |
| 76873 | No. 2 rear spoiler protective strip | 76873-13050 |
| 76874 | No. 3 rear spoiler protective strip | 76874-13070 |
| 76875 | No. 4 rear spoiler protective strip | 76875-13030 |
| 76876A | No. 10 rear spoiler protective strip | 76876-13010 |
| 76895 | No. 5 rear spoiler protective strip | 76895-13030 |
| 76896 | No. 6 rear spoiler protective strip | 76896-13010 |
| 76915F | Right front fender | 76915-13020 |
| 76916F | Left front fender | 76916-13020 |
| 76924A | No. 2 side fender fixings | 76924-52020 · 76924-52021 |
