Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 5 PNC and OE references.

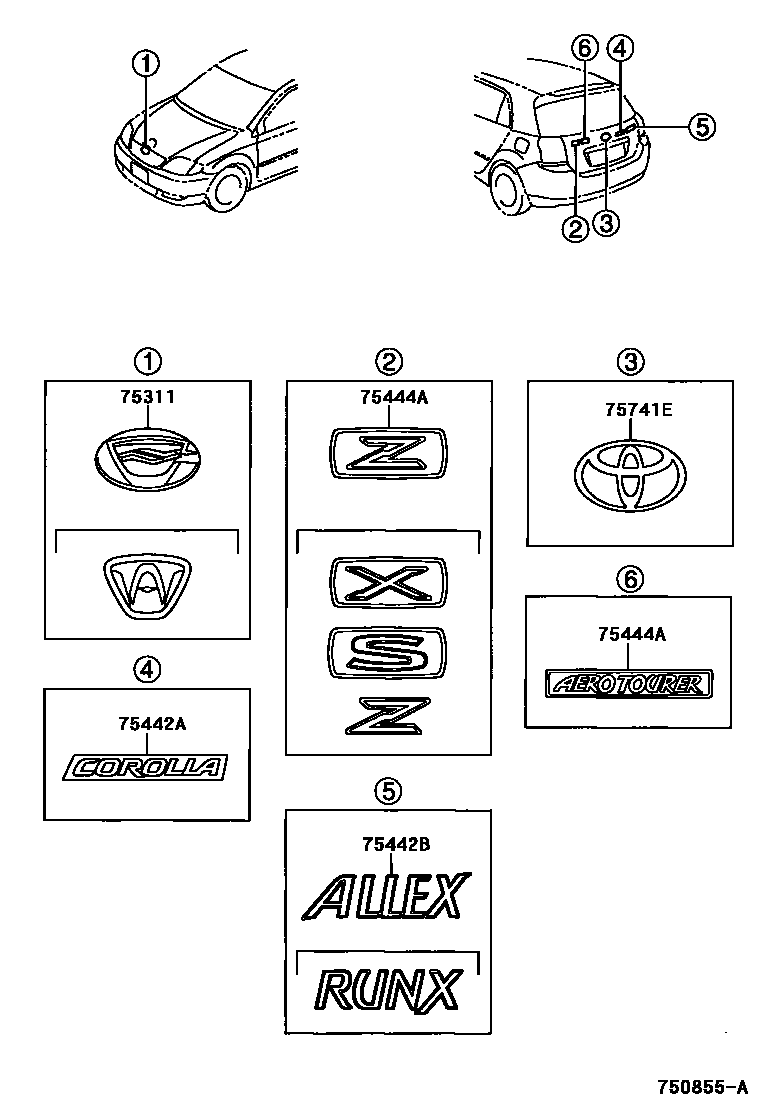

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750855A
丰田徽标和铭牌(车外和车内) — 750855A (200101 – 200404)

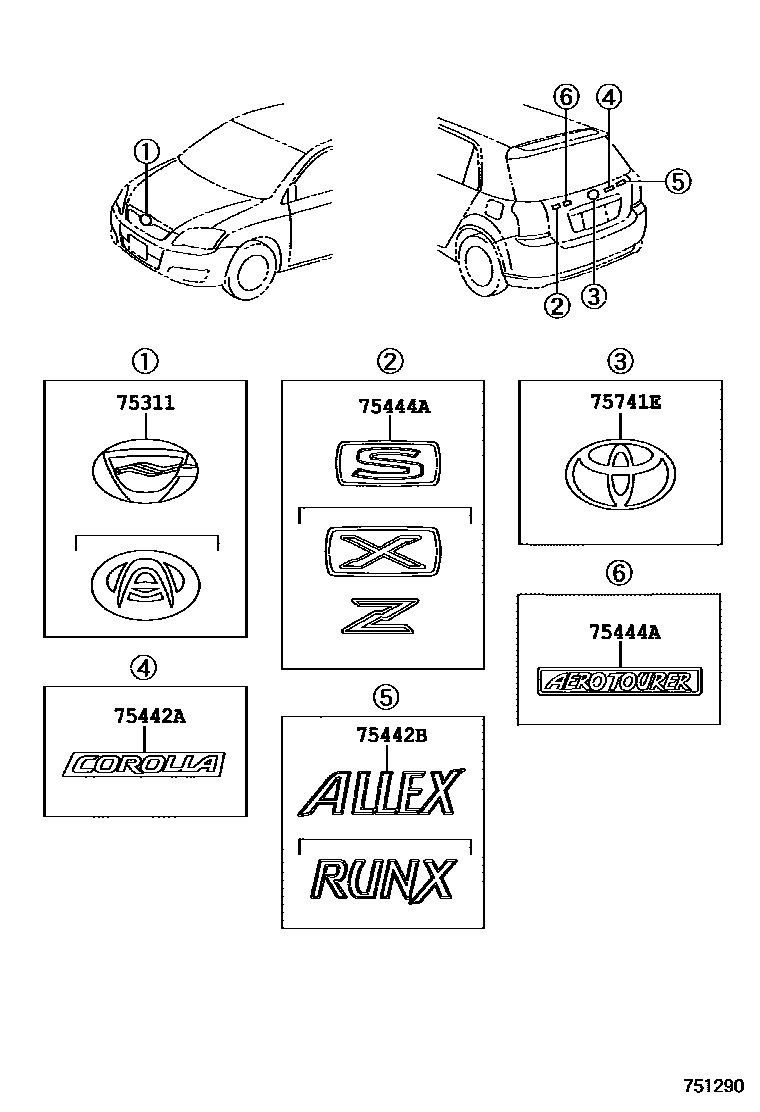

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751290
丰田徽标和铭牌(车外和车内) — 751290 (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-13150 · 75311-13160 · 75311-13190 · 75311-1E070
75442ANo. 2 nameplate on back door75442-13260
75442BNo. 2 nameplate on back door75442-13270 · 75442-13280
75444ANo. 4 nameplate on back door75443-13320 · 75443-13370 · 75444-13290 · 75444-13410 · 75444-1A710
75741Elogo90975-02011
