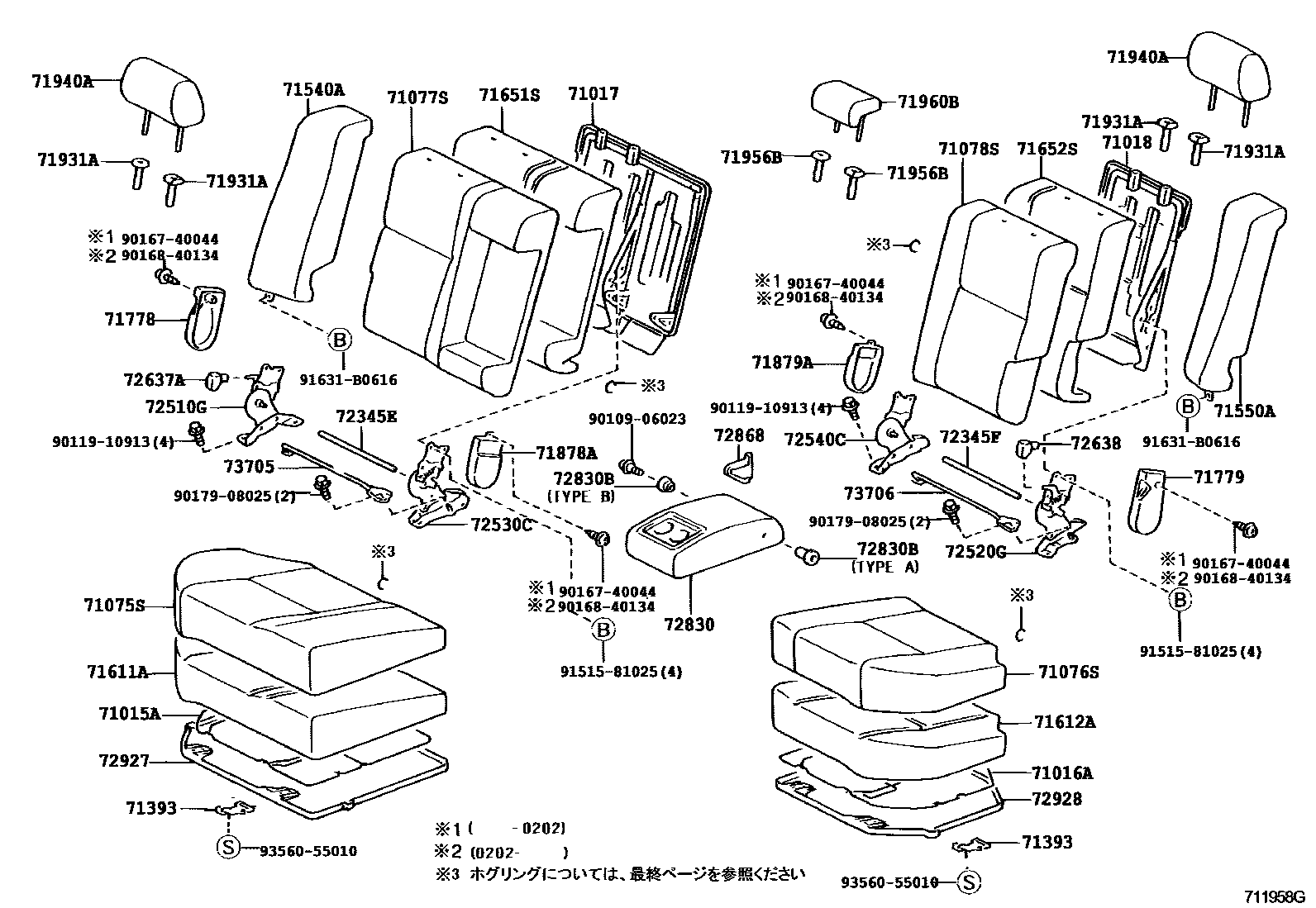

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13070 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-13240 · 71017-13250 · 71017-13290 · 71017-13300 |
| 71018 | Rear left seat back frame sub-assembly | 71018-13100 |
| 71611A | Rear right seat cushion | 71611-13240 |
| 71612A | Rear left seat cushion | 71612-13110 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-13280 · 71651-13290 · 71651-13320 · 71651-13330 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-13170 |
| 72345E | Seat back recliner connecting tube | 72345-13050 |
| 72345F | Right seat back recliner connecting pipe | 72345-13050 |
| 72510G | Rear right seat backrest inclination outer adjuster assembly | 72510-13020 |
| 72520G | Rear left seat backrest tilt outer adjuster assembly | 72520-13020 |
| 72530C | Rear right seat backrest inclination angle inner adjuster assembly | 72530-13020 |
| 72540C | Rear left seat backrest inclination angle inner adjuster assembly | 72540-13020 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 · 90386-08077 |
| 72927 | Rear right seat cushion lower cover | 72927-13040 |
| 72928 | Rear left seat cushion lower cover | 72928-13030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-13010 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-13010 |
