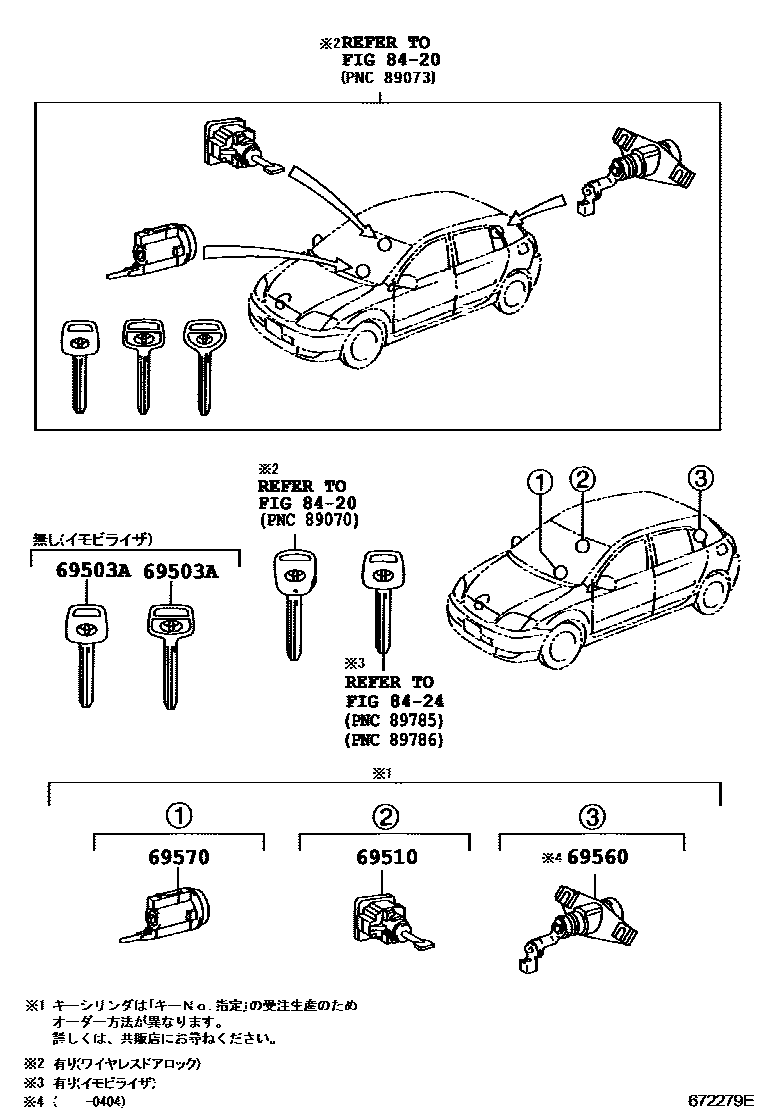

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503A | external tooth key | 90999-00186 · 90999-00199 |
| 69510 | Right front door lock cylinder assembly | 69510-12310 |
| 69560 | Rear door lock cylinder assembly | 69560-13130 |
| 69570 | Ignition switch lock cylinder assembly | 69570-12190 |
