Toyota COROLLA 底板和底板装饰罩 — Figure 6404

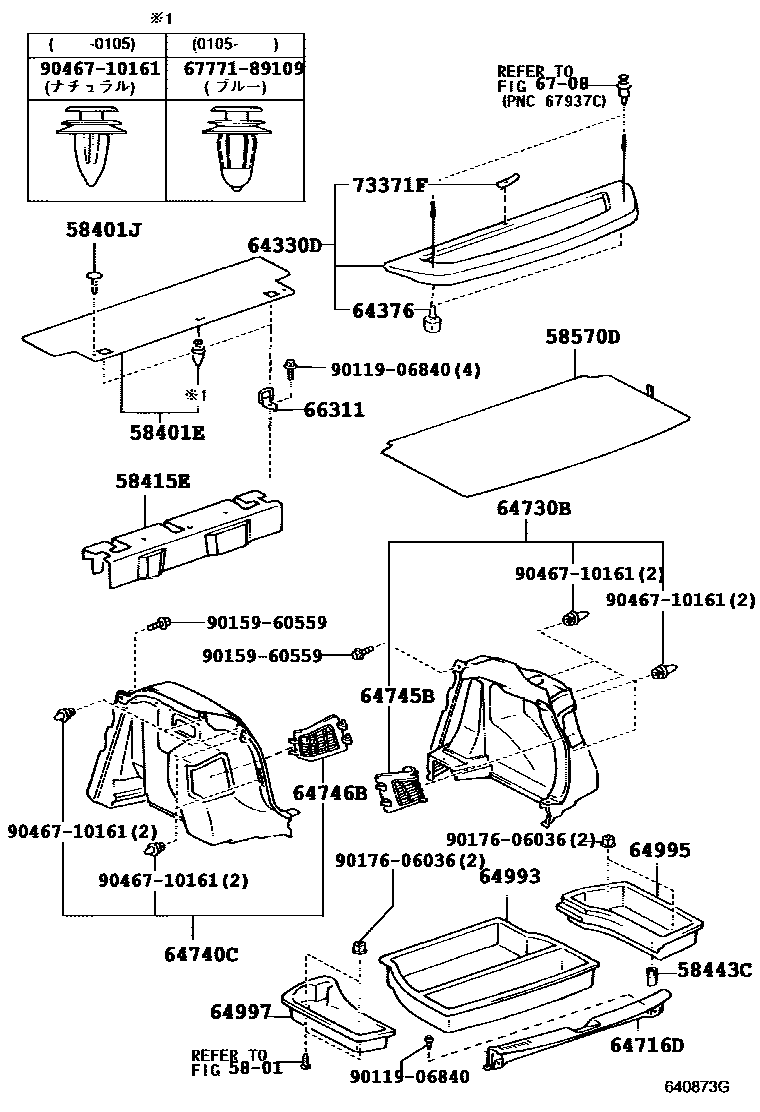

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58415E | Rear floor panel No. 1 | 58415-13060 |
| 58443C | Bottom tank cushion | 58443-13040 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-12020 |
| 64993 | Bottom floor box | 64993-13030 |
| 64995 | Bottom right floor box | 64995-13020 |
| 64997 | Bottom left floor box | 64997-13020 |
| 66311 | rope hook | 66310-13010 |
