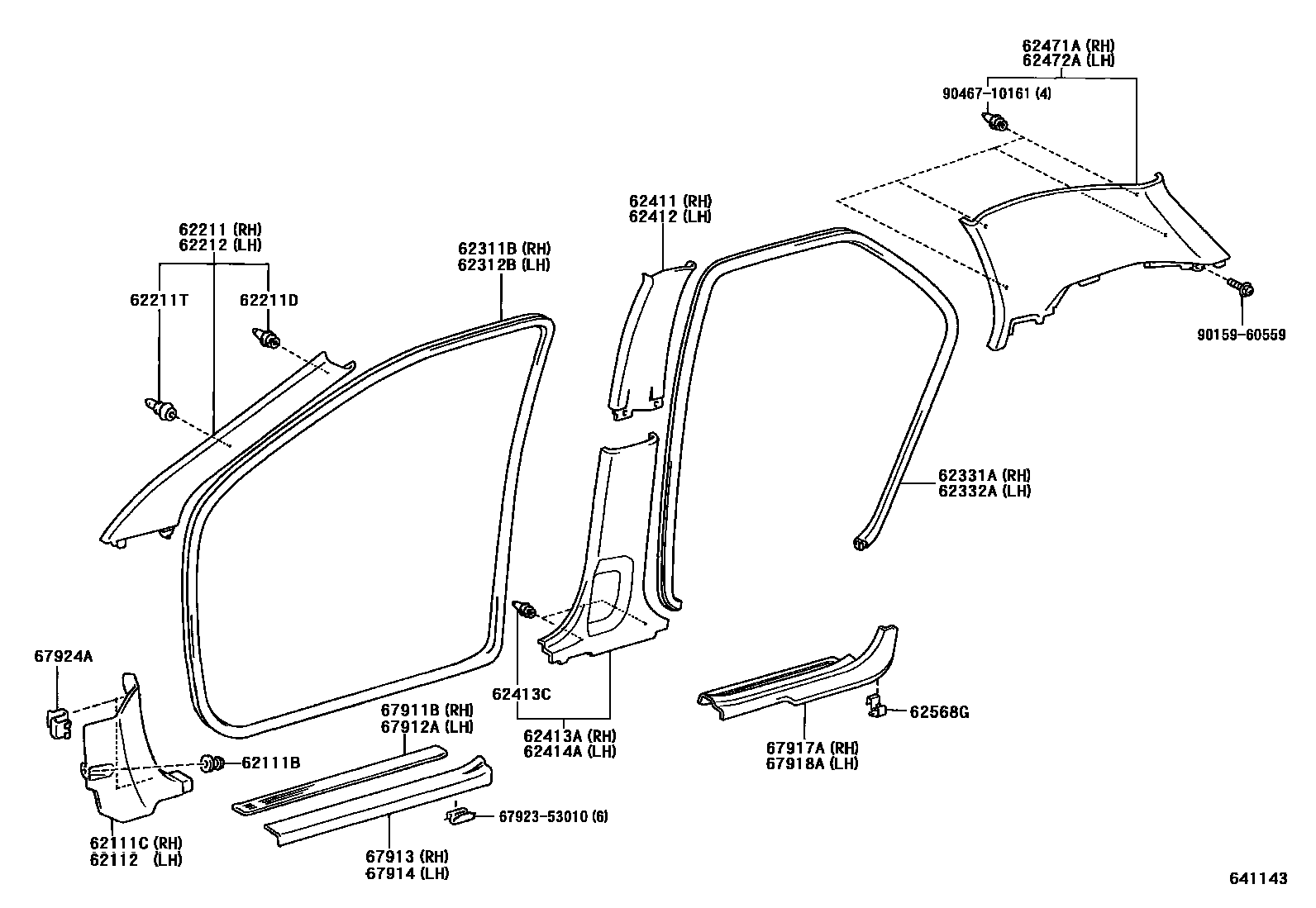

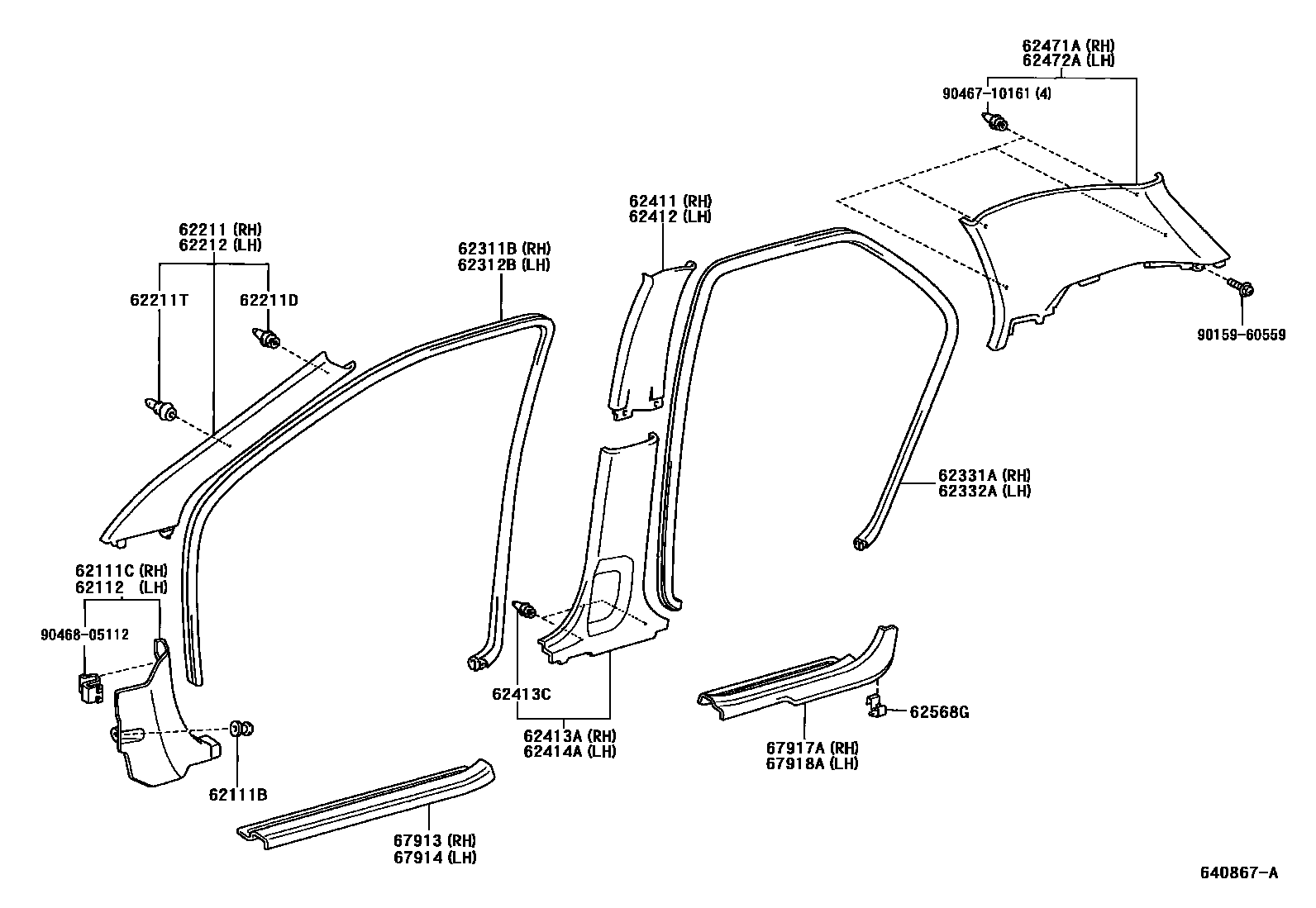

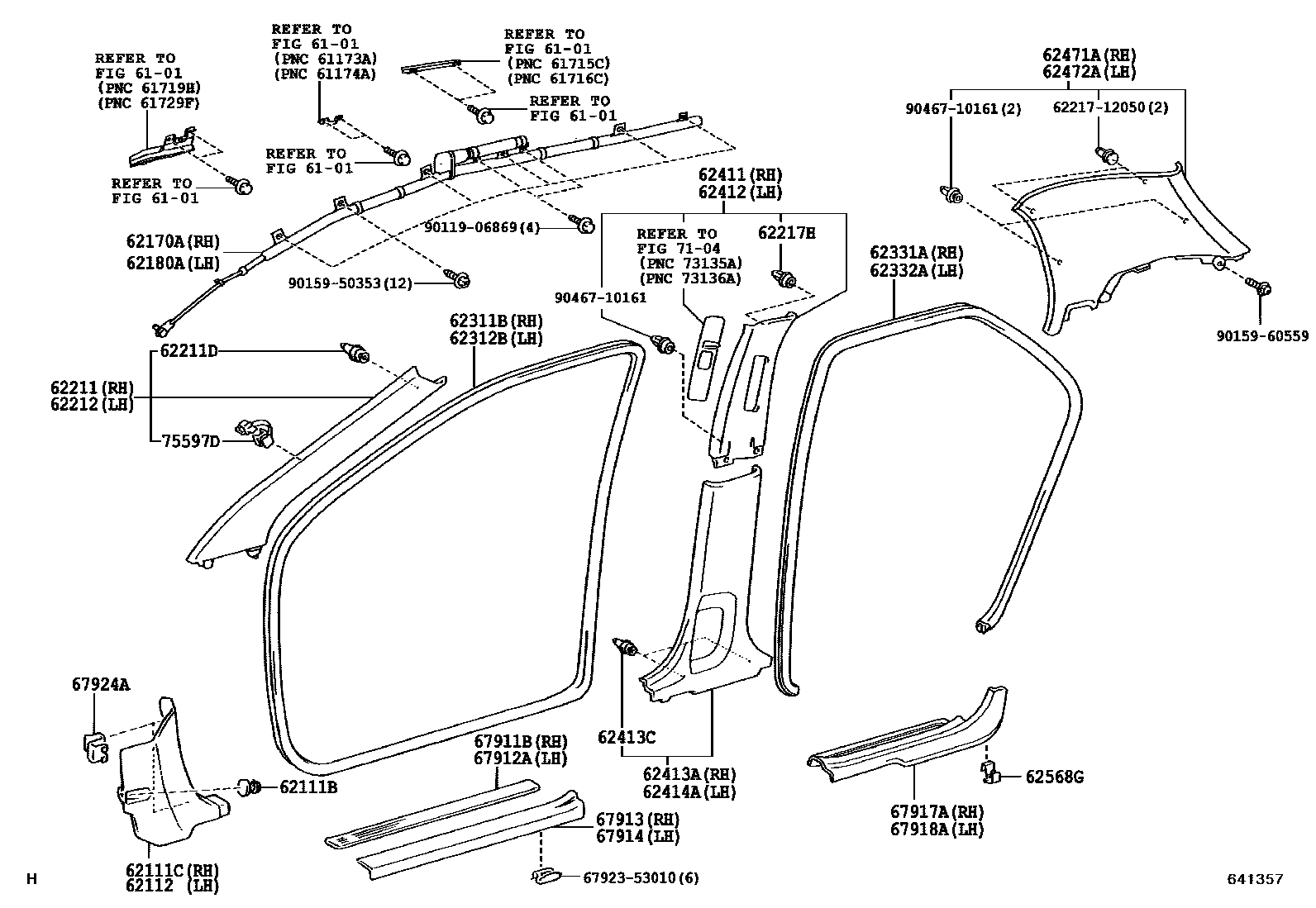

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62170A | Right curtain air bag assembly | 62170-13011 |
| 62180A | Left curtain air bag assembly | 62180-13011 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 · 90467-10188 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10192 |
| 62217H | Center pillar decorative plate clip | 62217-13010 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-09215 |
| 62568G | No. 3 door inner sill protection strip clip | 62568-13030 |
| 67911B | Right front door outer wear plate | 67911-13010 |
| 67912A | Left front door outer wear plate | 67912-13010 |
| 67924A | Door No. 2 wear plate clip | 67924-46010 |
| 75597D | Roof side trim clips | 75597-05010 |
