Toyota COROLLA 侧梁 — Figure 6101

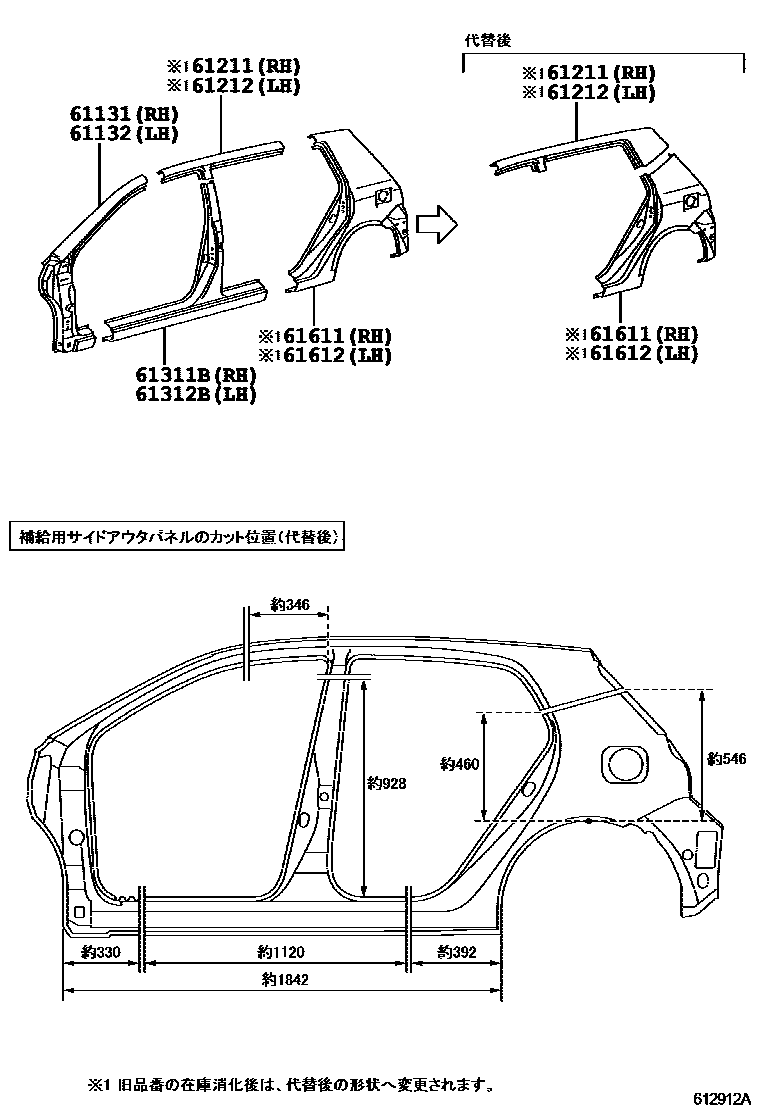

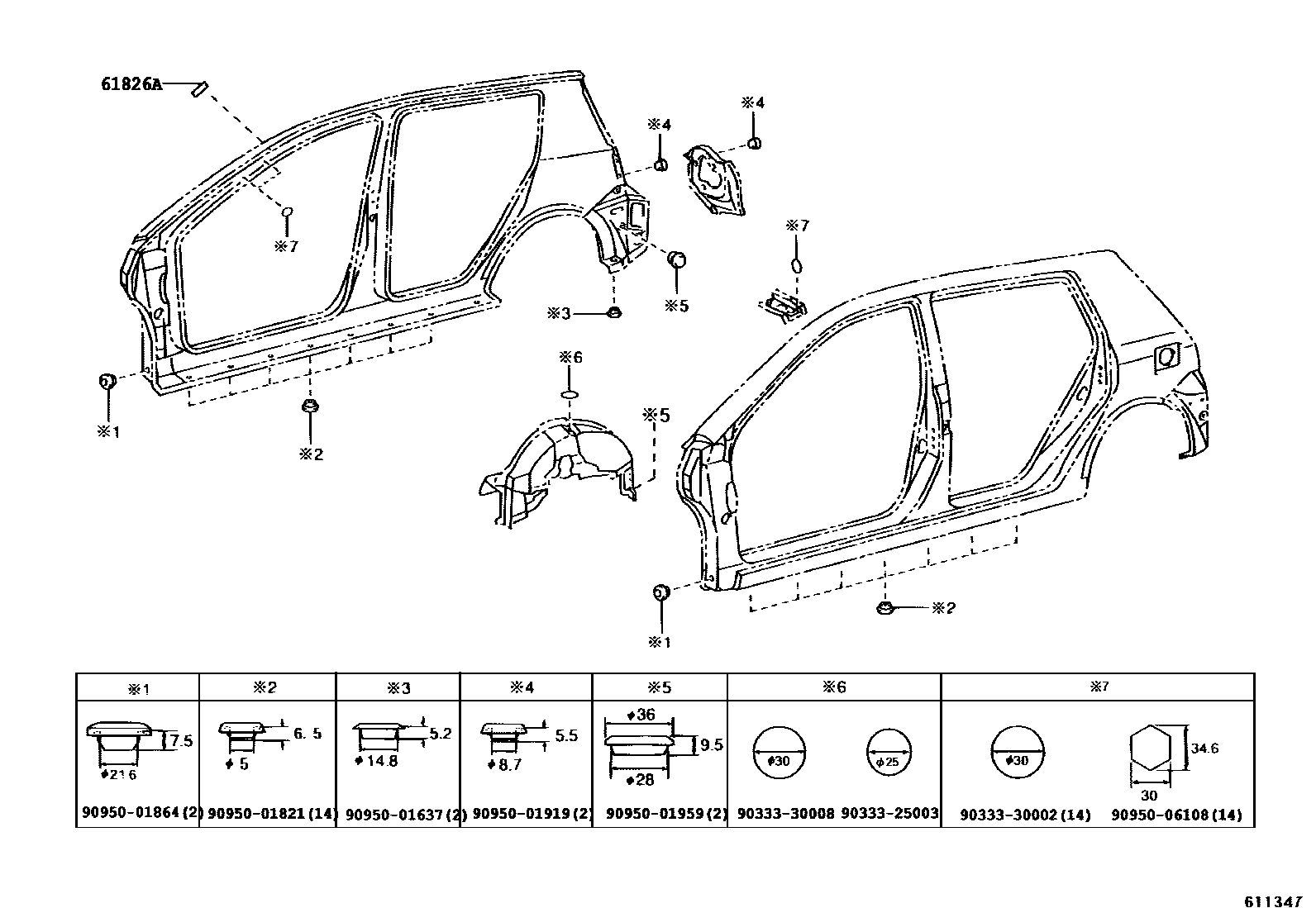

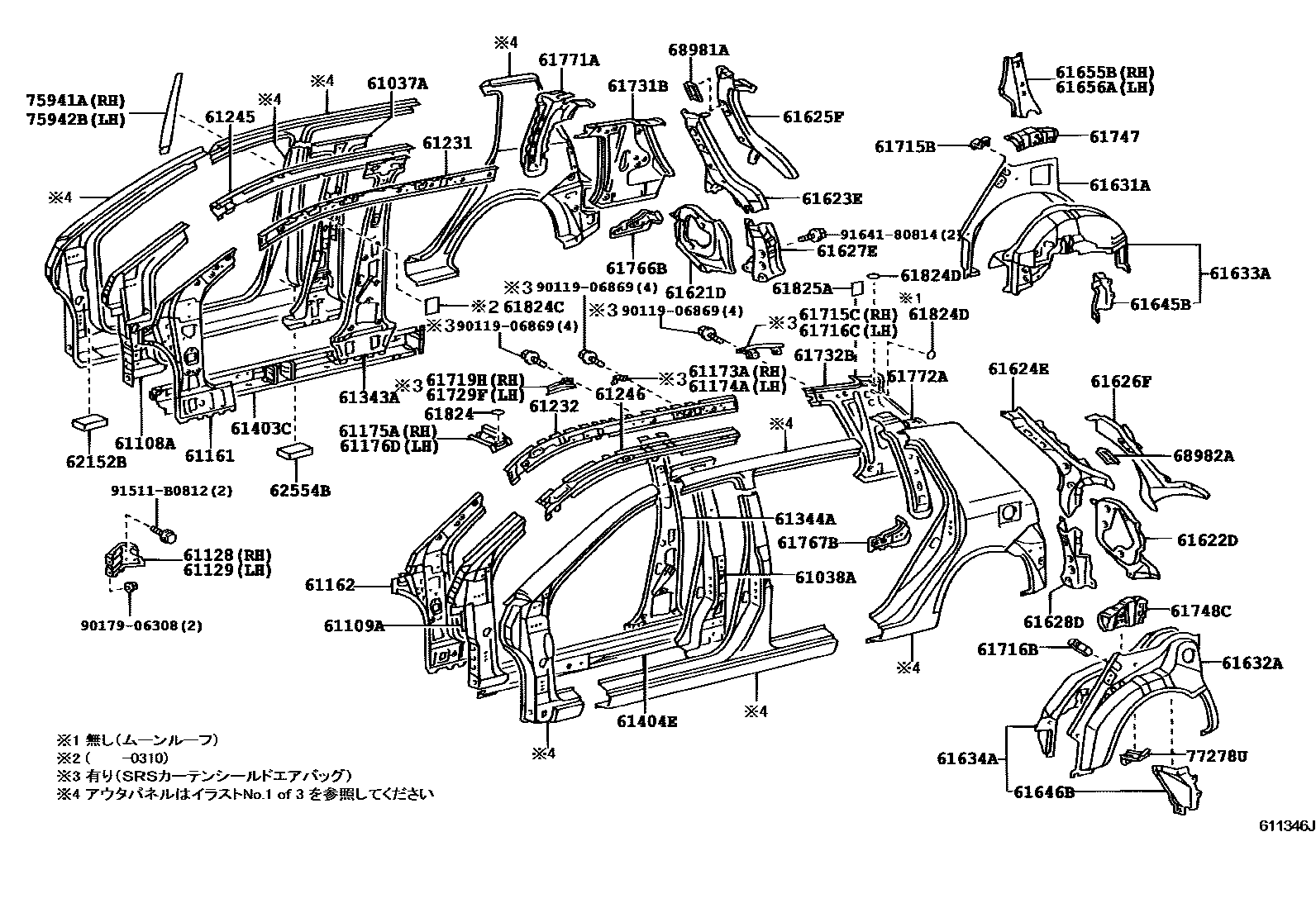

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12903 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12903 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12230 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12220 |
| 61128 | Right front wall side panel reinforcement | 61103-12190 · 61103-12200 |
| 61129 | Left front wall side panel reinforcement | 61104-12220 · 61104-12230 |
| 61131 | Right body outer front upper pillar | 61131-13050 · 61131-13060 |
| 61132 | Left body outer front upper pillar | 61132-13050 · 61132-13060 |
| 61161 | Right upper body inner front pillar | 61023-12320 · 61023-12350 |
| 61162 | Left side inner front upper pillar | 61024-12320 · 61024-12350 |
| 61173A | Reinforcement member on the right inner front pillar of the body | 61173-12120 |
| 61174A | Reinforcement member on the left inner front pillar of the body | 61174-12120 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12140 · 61175-12200 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12150 · 61176-12201 |
| 61211 | Roof right outer longitudinal beam | 61211-13080 |
| 61212 | Roof left outer longitudinal beam | 61212-13080 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-13220 · 61231-13221 |
| 61232 | Roof left inner longitudinal beam | 61232-13200 · 61232-13201 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-13050 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-13050 |
| 61311B | Right body outer center pillar | 61311-13030 · 61311-13040 |
| 61312B | Left body outer center pillar | 61312-13030 · 61312-13040 |
| 61343A | Right body inner center pillar | 61343-12240 |
| 61344A | Left body inner center pillar | 61344-12240 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12010 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12011 |
| 61611 | Right side hoarding | 61601-13550 · 61601-13560 |
| 61612 | left side panel | 61602-13610 · 61602-13620 |
| 61621D | Back door right opening slot | 61621-13060 · 61621-13061 |
| 61622D | Rear door left opening slot | 61622-13060 · 61622-13061 |
| 61623E | Right rear side panel inner panel extension | 61623-13050 |
| 61624E | Left rear side panel inner panel extension | 61624-13040 |
| 61625F | Extension on right side panel | 61625-13900 |
| 61626F | Extension on left side panel | 61626-13900 |
| 61627E | Right rear side panel lower extension | 61627-13010 |
| 61628D | Left rear side panel lower extension | 61628-13010 |
| 61631A | Right wheel cover outer panel | 61631-12410 |
| 61632A | Left side wheel cover outer panel | 61632-12430 |
| 61633A | Right wheel housing lining panel | 61607-12926 · 61607-12928 |
| 61634A | Left side wheel housing lining panel | 61608-12921 · 61608-12922 · 61608-12924 · 61608-12926 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61655B | Right side wheel cover inner corner panel | 61655-13030 |
| 61656A | Left side wheel housing inner corner panel | 61656-13030 · 61656-13031 |
| 61715B | Right front roof inner extension | 61715-13050 |
| 61715C | Roof right bracket | 61715-12060 |
| 61716B | Left front roof inner extension | 61715-13050 |
| 61716C | Roof left bracket | 61716-12070 |
| 61719H | Roof right side longitudinal beam bracket sub-assembly | 61707-12040 |
| 61729F | Roof left side longitudinal beam bracket sub-assembly | 61708-12030 |
| 61731B | Roof right inner panel | 61731-13390 · 61731-13391 |
| 61732B | Roof left inner panel | 61732-13400 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13060 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13090 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-13080 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-13070 |
| 61771A | Back window opening right corner panel | 61771-13070 |
| 61772A | Rear window opening left corner panel | 61772-13070 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-50020 |
| 61824D | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61825A | Noise Control Panel No. 2 | 61815-28010 · 61815-32020 |
| 61826A | Noise Control Panel No. 3 | 61826-12020 · 61826-52020 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 68981A | Back door right side support rod fixing | 68981-13040 |
| 68982A | Back door left support rod fixing | 68981-13040 |
| 75941A | Right center pillar trim | 75941-12010 · 75941-12011 |
| 75942B | Left center pillar trim | 75942-12010 · 75942-12011 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
