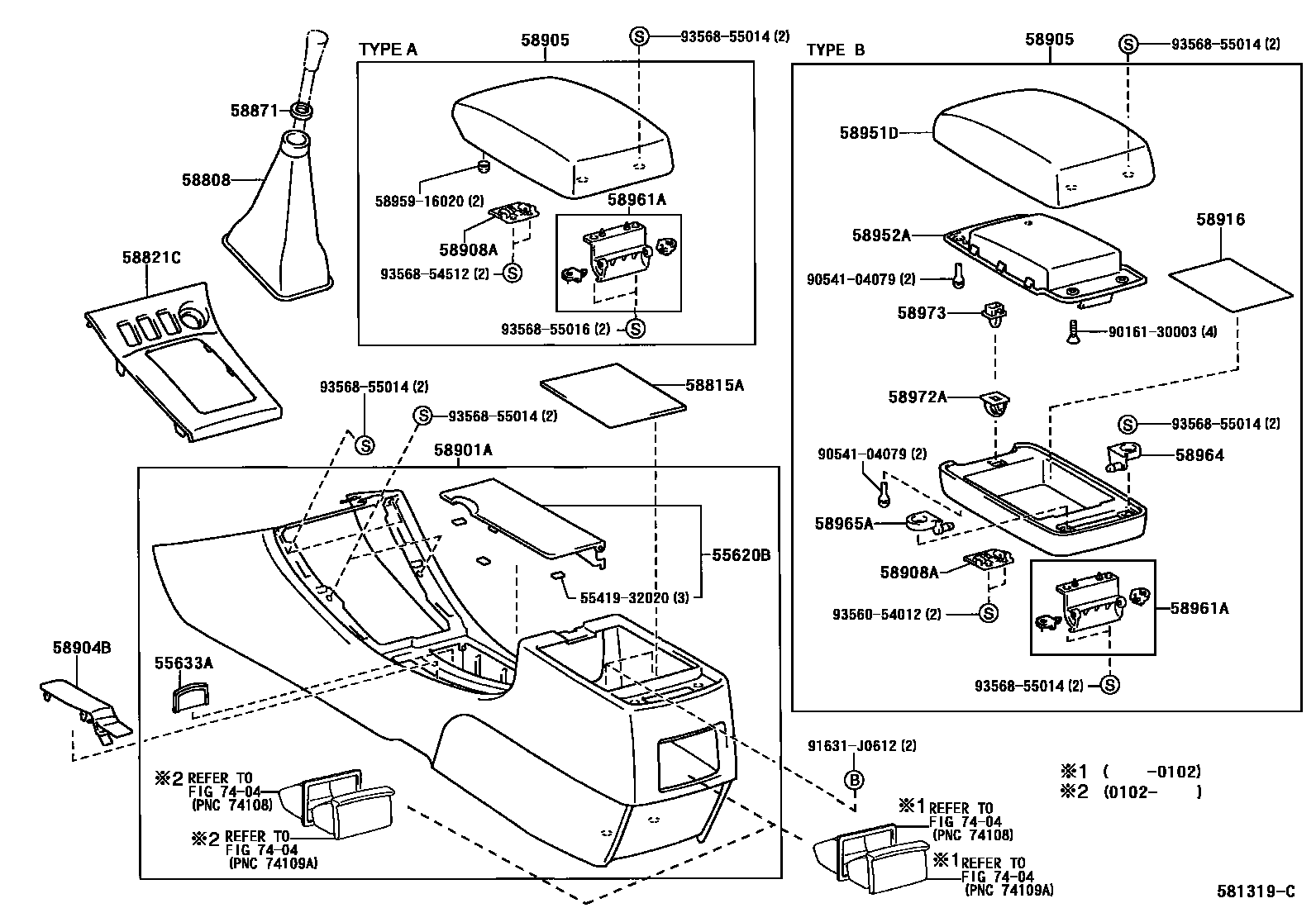

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-12060 |
| 58871 | Armrest box cushion | 58871-20060 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58916 | Armrest box bottom pad | 58916-12080 |
| 58961A | Armrest box lid protruding hinge | 58907-12050 |
| 58964 | Armrest box cover No. 1 stop | 58964-20040 |
| 58965A | Armrest box cover No. 2 stopper | 58965-20050 |
| 58972A | Armrest box lid lock base | 58972-34010 |
| 58973 | Armrest box lid lock pin | 58973-34010 |
