Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 3 PNC and OE references.

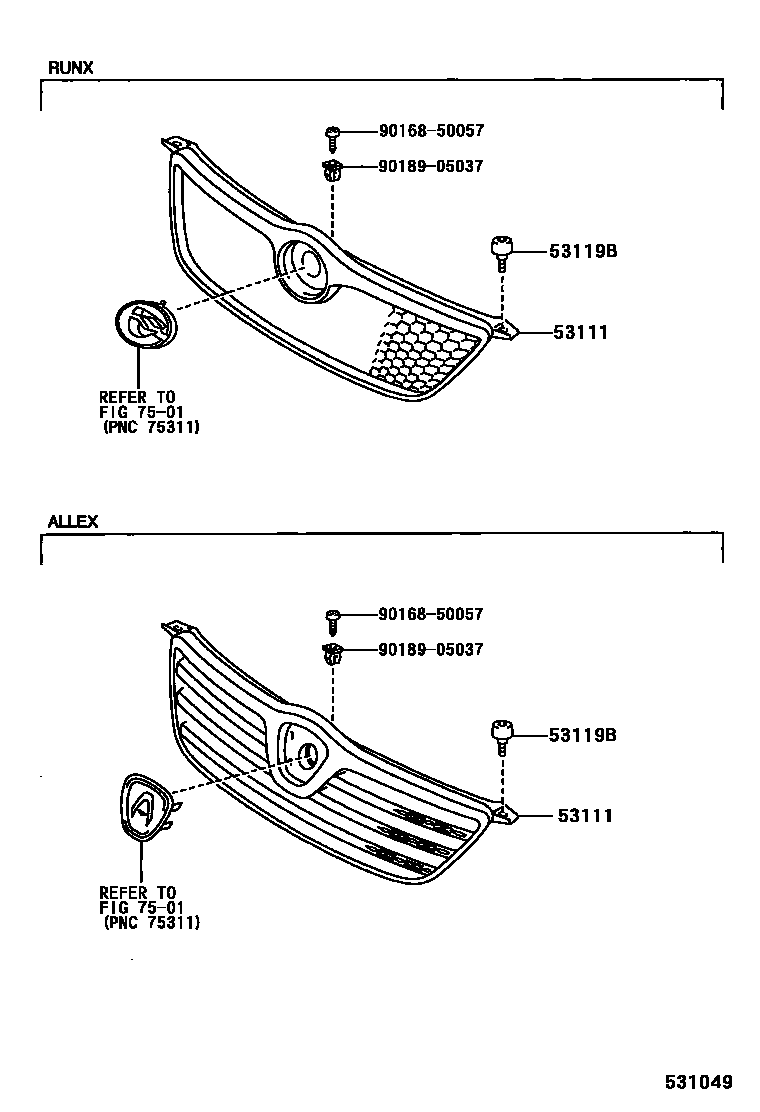

Toyota COROLLA radiator grille EPC diagram — 531049
radiator grille — 531049 (200101 – 200209)

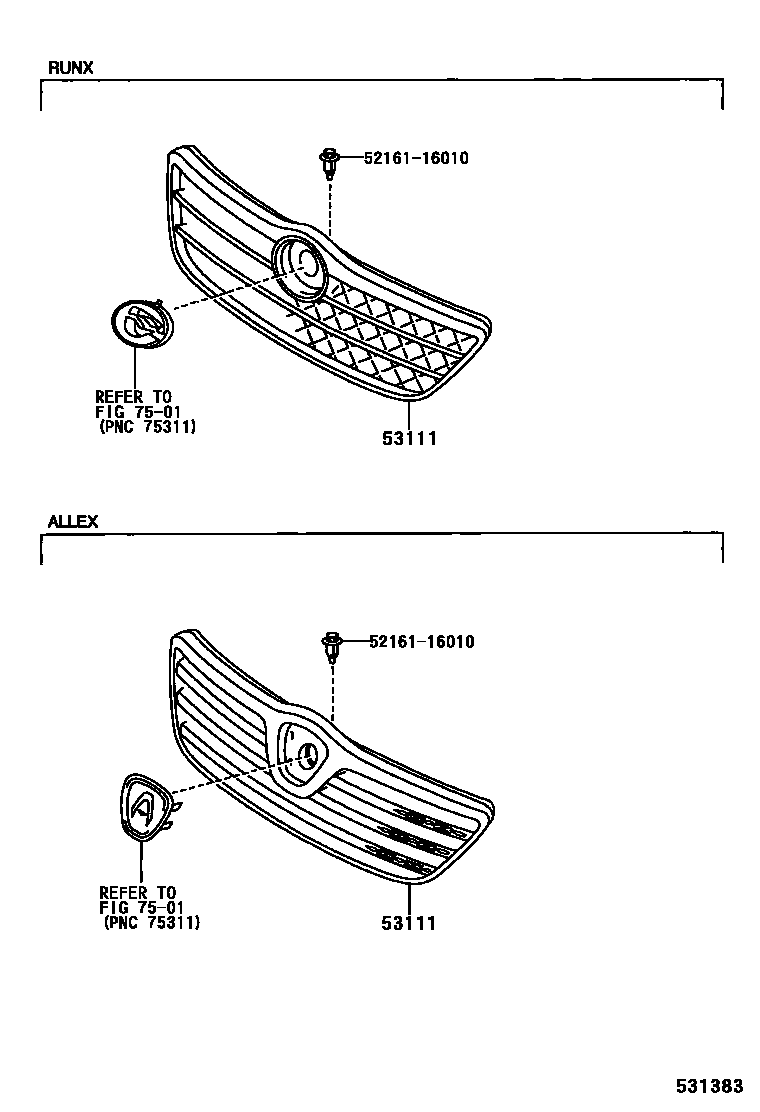

Toyota COROLLA radiator grille EPC diagram — 531383
radiator grille — 531383 (200209 – 200404)

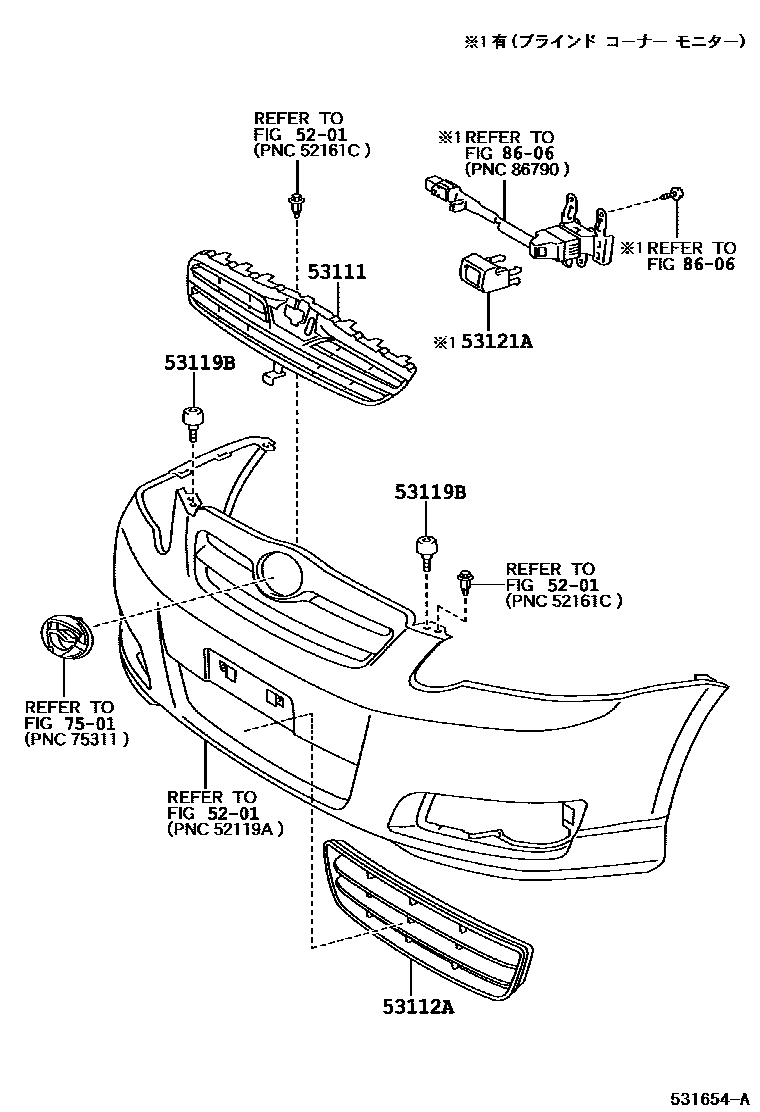

Toyota COROLLA radiator grille EPC diagram — 531654A
radiator grille — 531654A (200404 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-13270 · 53111-13290 · 53111-13310
53112ALower radiator grille53112-13020
53119BRadiator grille protector53119-12150
