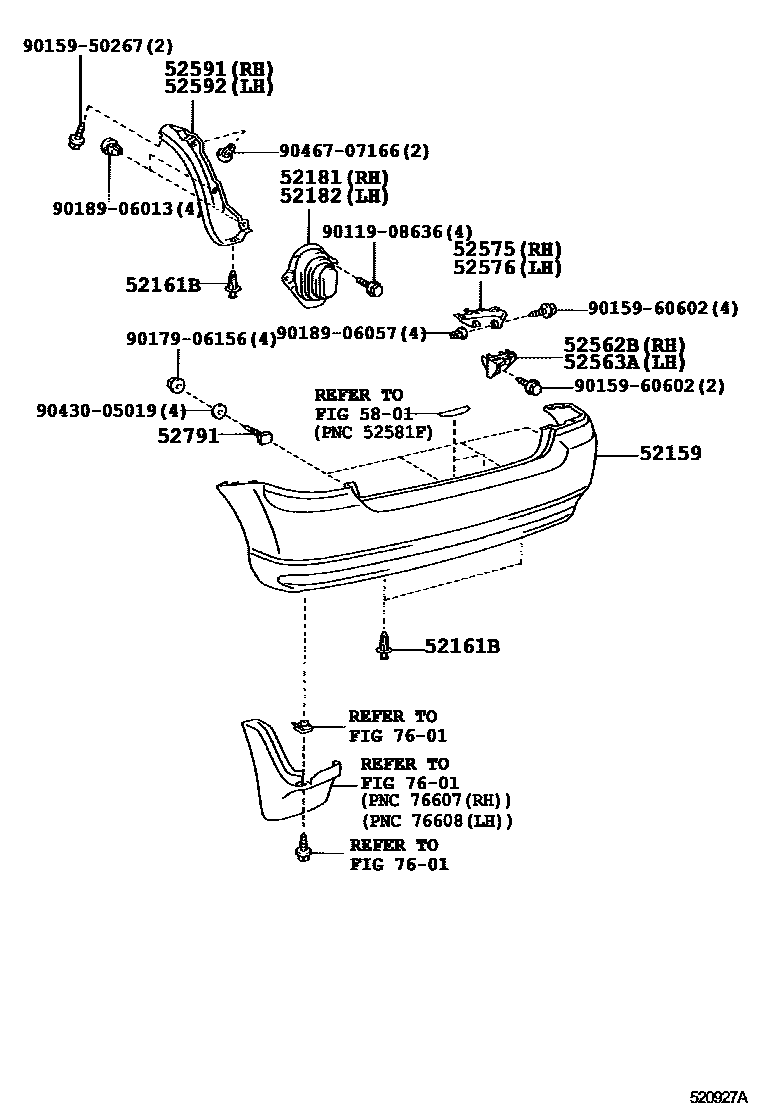

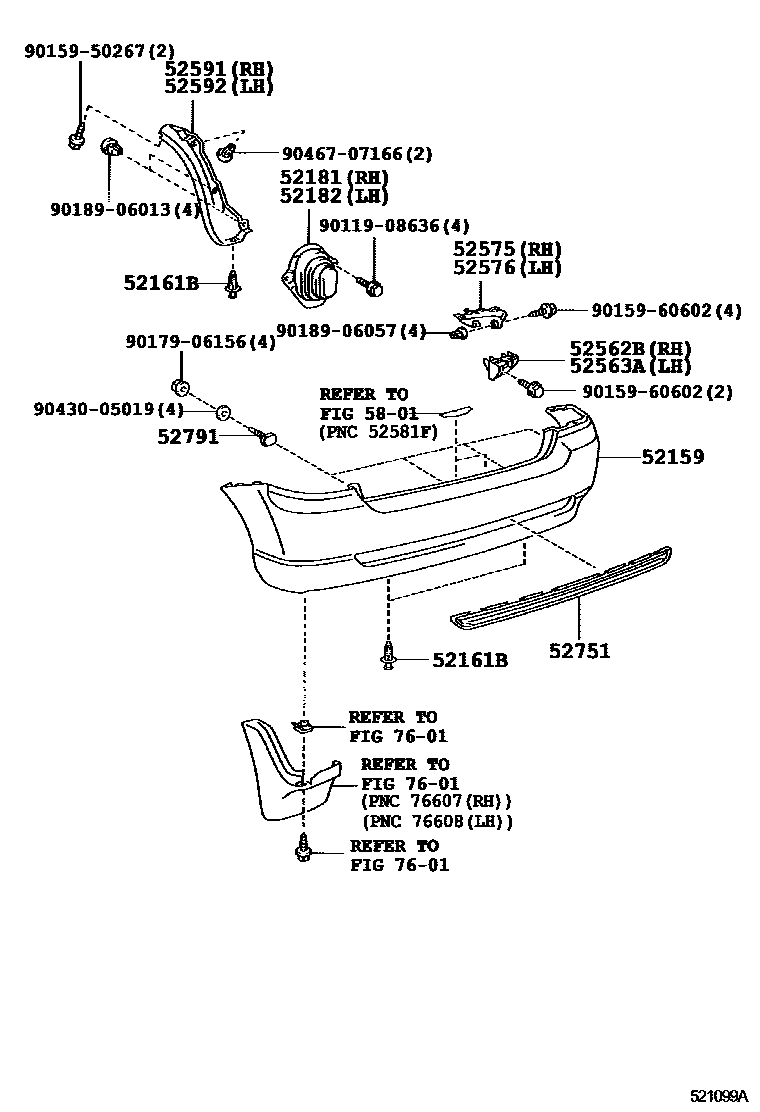

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161B | Rear bumper insert | 52161-16010 · 90467-09093 |
| 52181 | Rear bumper right arm | 52181-13120 |
| 52182 | Rear bumper left arm | 52181-13120 |
| 52562B | Rear bumper upper right fixing bracket | 52562-13030 |
| 52563A | Rear bumper upper left fixing bracket | 52563-13020 |
| 52575 | Rear bumper right side fixing bracket | 52575-13030 · 52575-13050 |
| 52576 | Rear bumper left side fixing bracket | 52576-13030 · 52576-13050 |
| 52591 | Rear bumper right seal | 52591-13040 |
| 52592 | Rear bumper left seal | 52592-13040 |
| 52751 | Rear bumper protection strip | 52751-13010 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
