Toyota COROLLA Steering Column & Shaft — Figure 4501

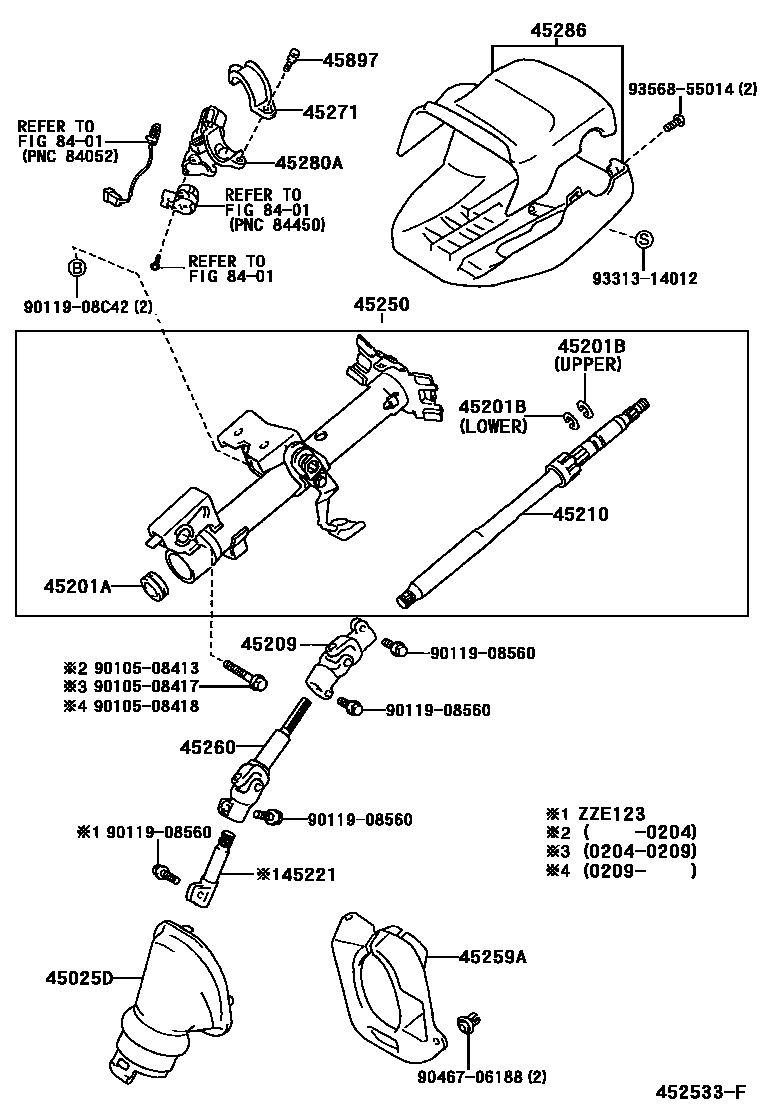

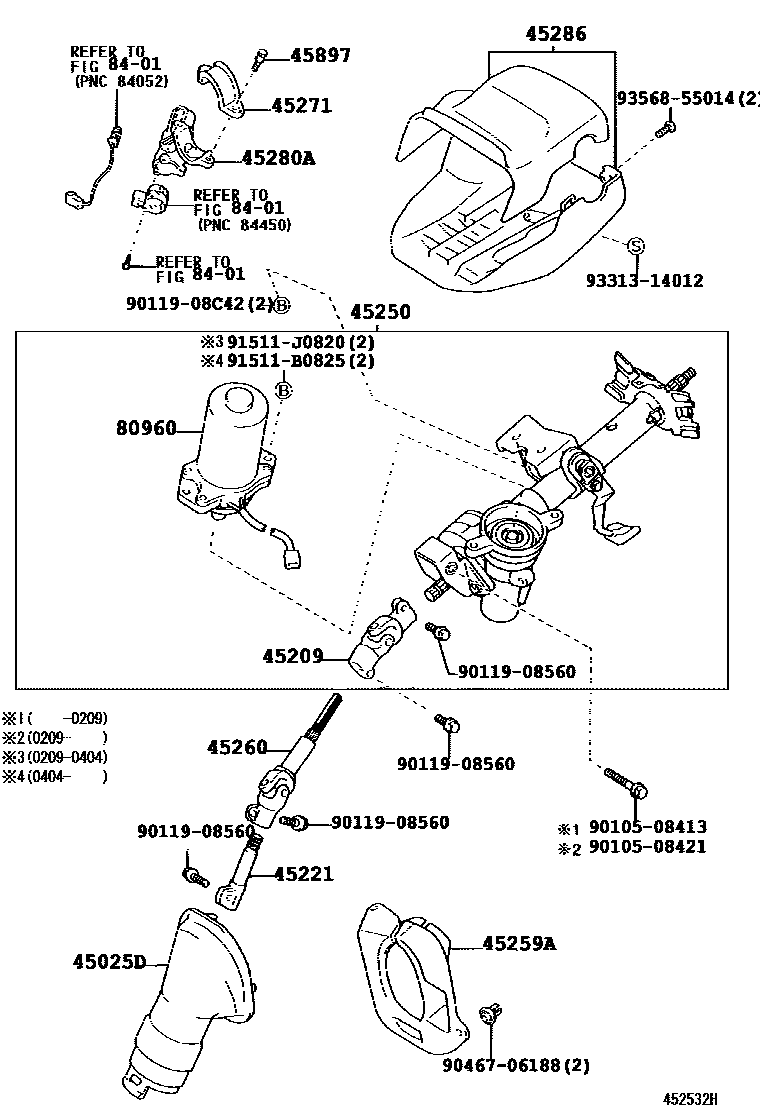

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12220 · 45025-12230 · 45025-12240 |
| 45201A | Bearings (for steering spindle) | 45274-42010 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45209 | Steering slip fork sub-assembly | 45209-12150 · 45209-12151 |
| 45210 | Steering spindle assembly | 45210-42020 |
| 45221 | steering intermediate shaft | 45221-12280 · 45221-12281 · 45221-12291 |
| 45250 | Steering column assembly | 45250-1E192 · 45250-1E200 · 45250-1E232 · 45250-1E310 · 45250-1E311 · 45250-1E312 · 45250-1E313 · 45250-1E320 · 45250-1E321 · 45250-1E322 · 45250-1E323 · 45250-1E330 · 45250-1E331 |
| 45259A | Steering column hole cover silencer plate | 45259-12010 · 45259-12020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12460 · 45260-12461 · 45260-12470 · 45260-12530 · 45260-12531 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-12400 · 45280-52020 · 45280-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 80960 | Power steering motor assembly | 80960-12010 · 80960-12040 · 80960-12041 · 80960-12050 · 80960-12080 |
