Toyota COROLLA Front Drive Shaft — Figure 4302

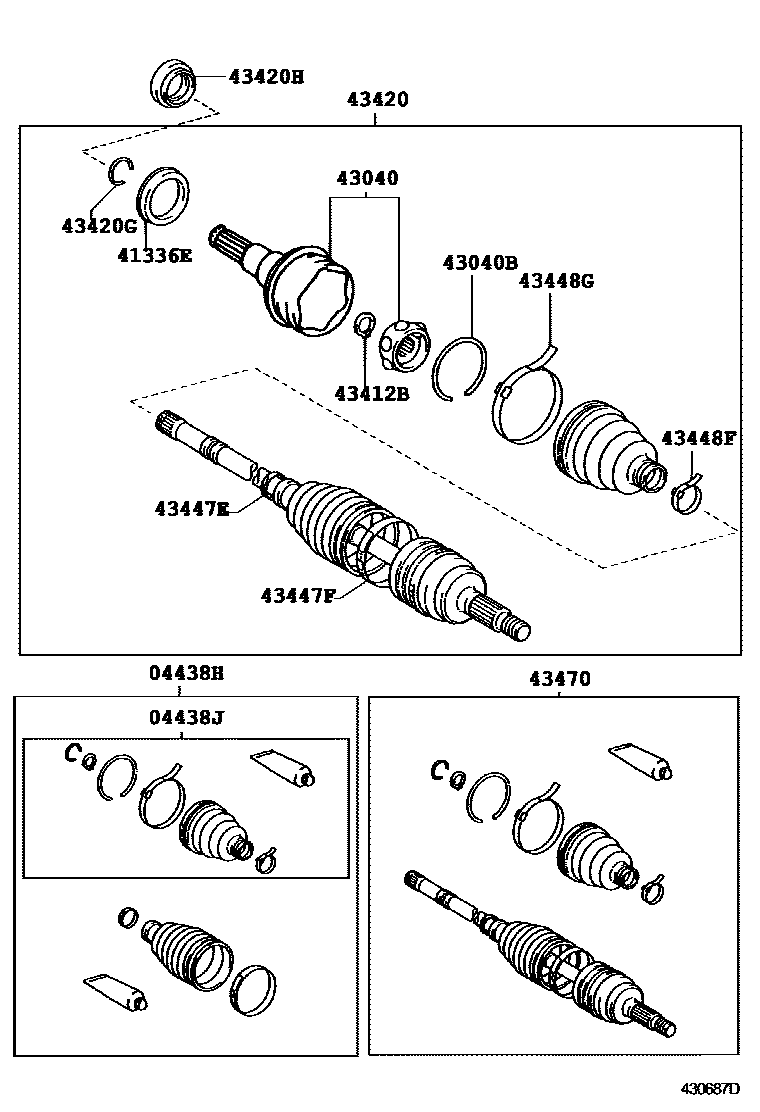

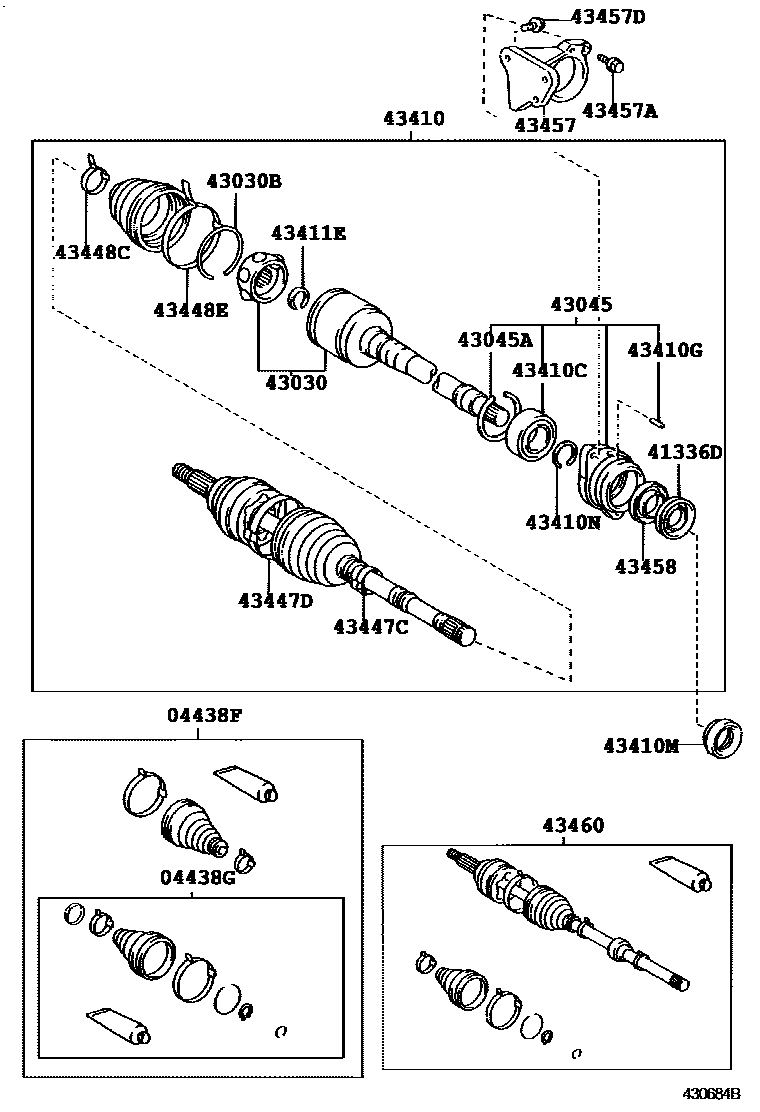

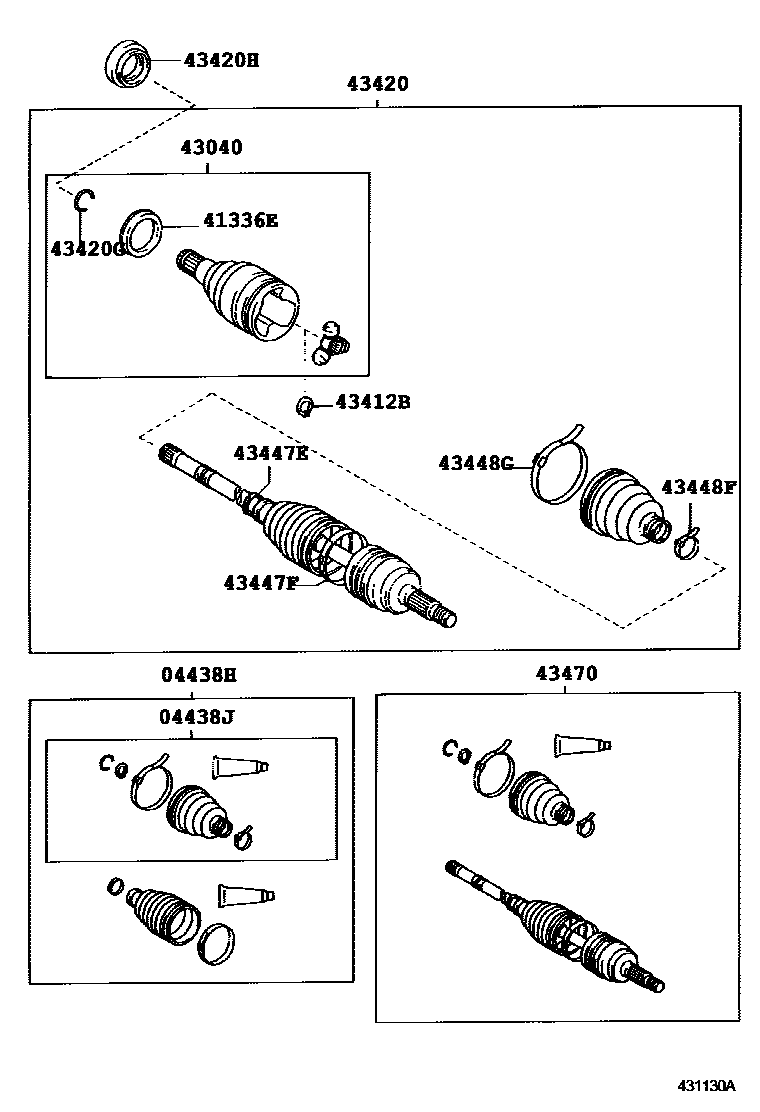

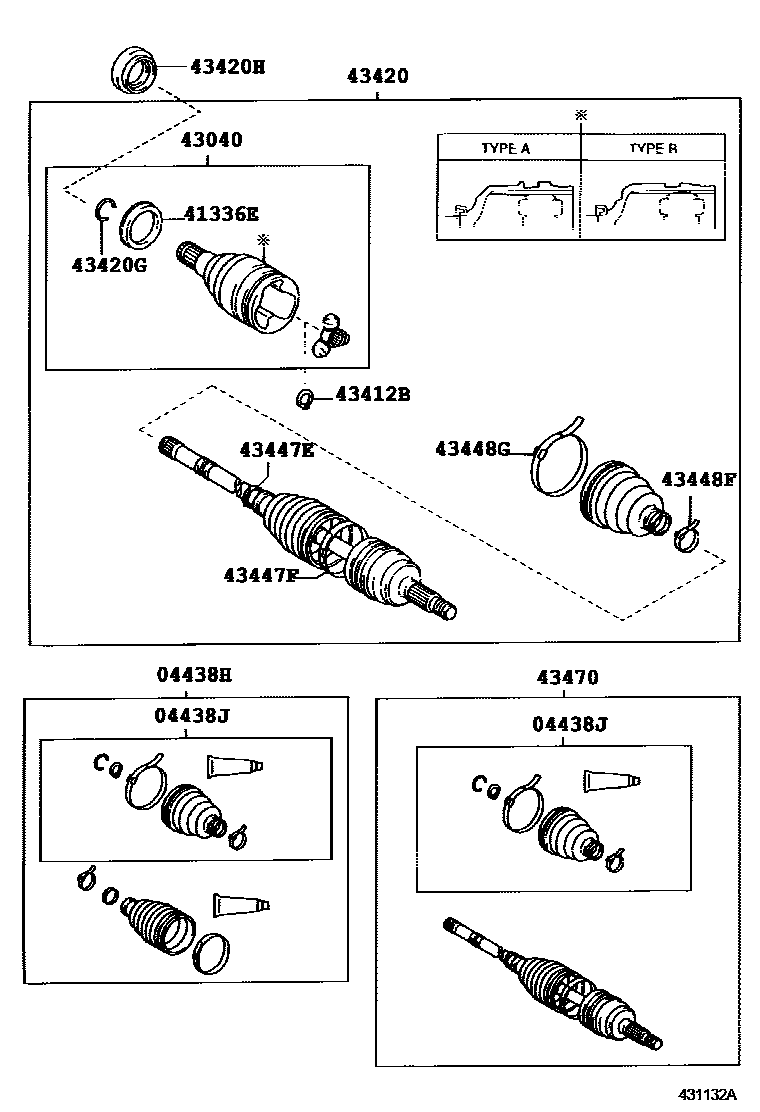

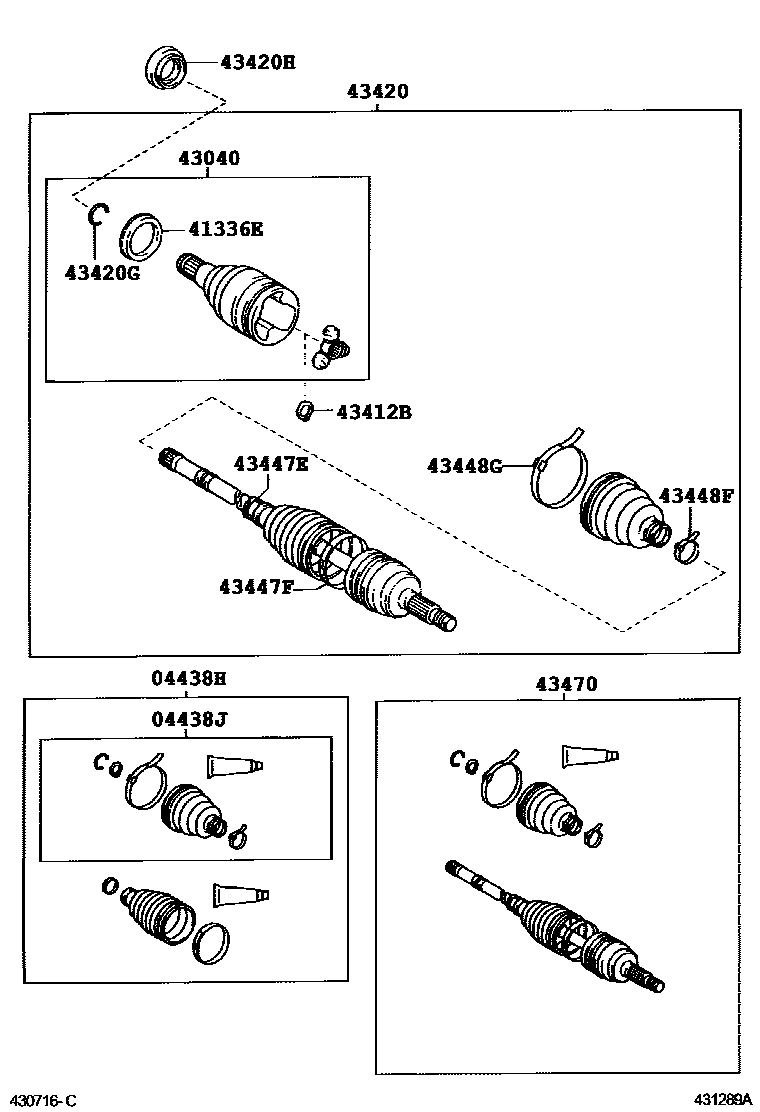

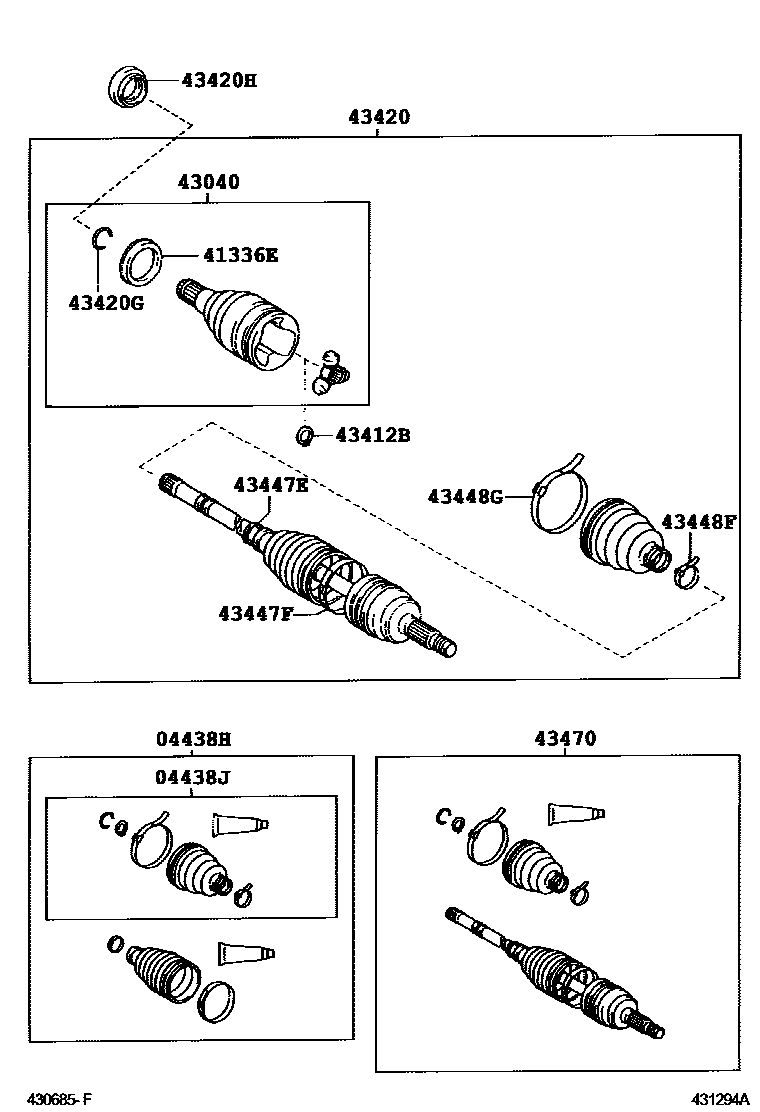

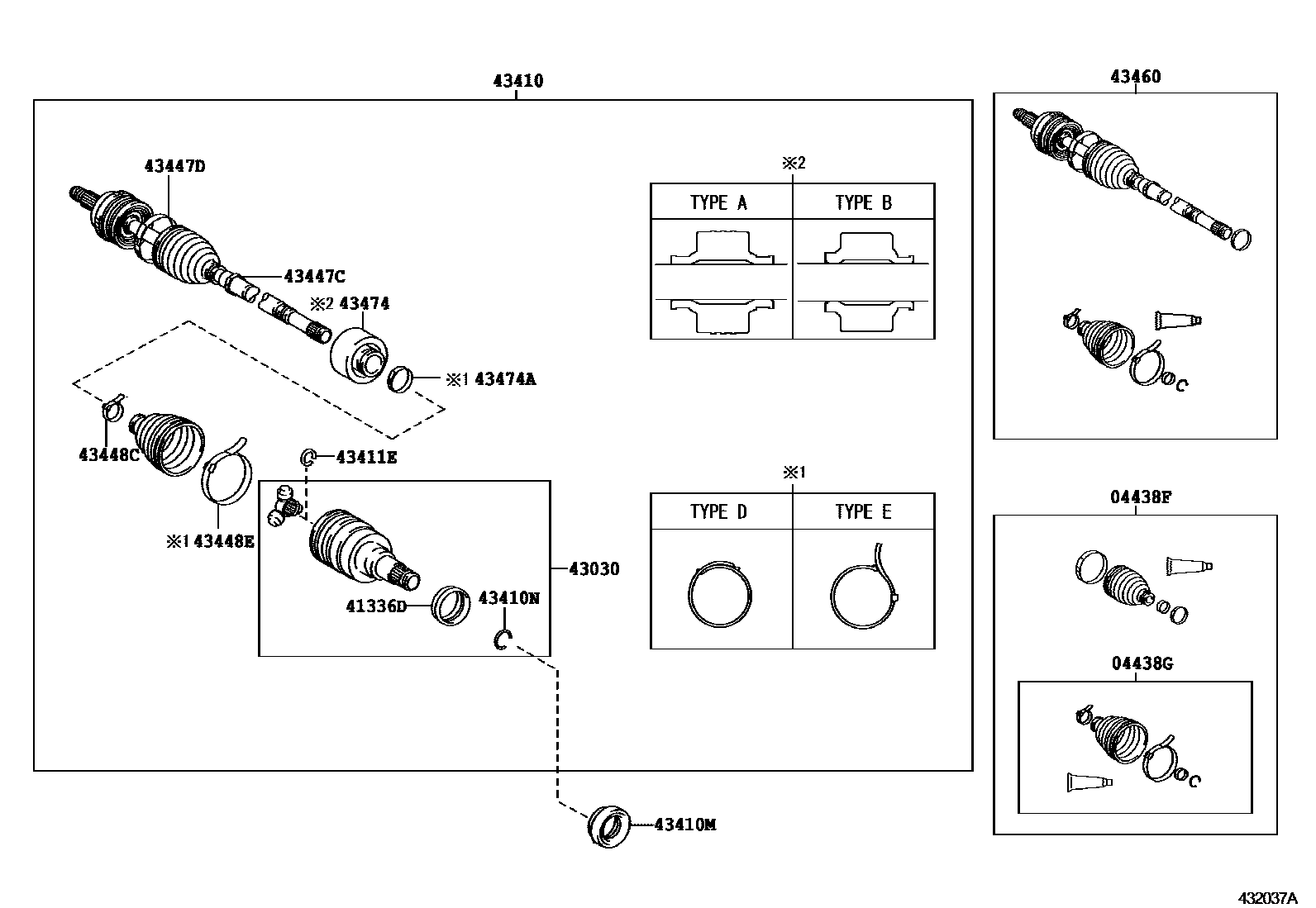

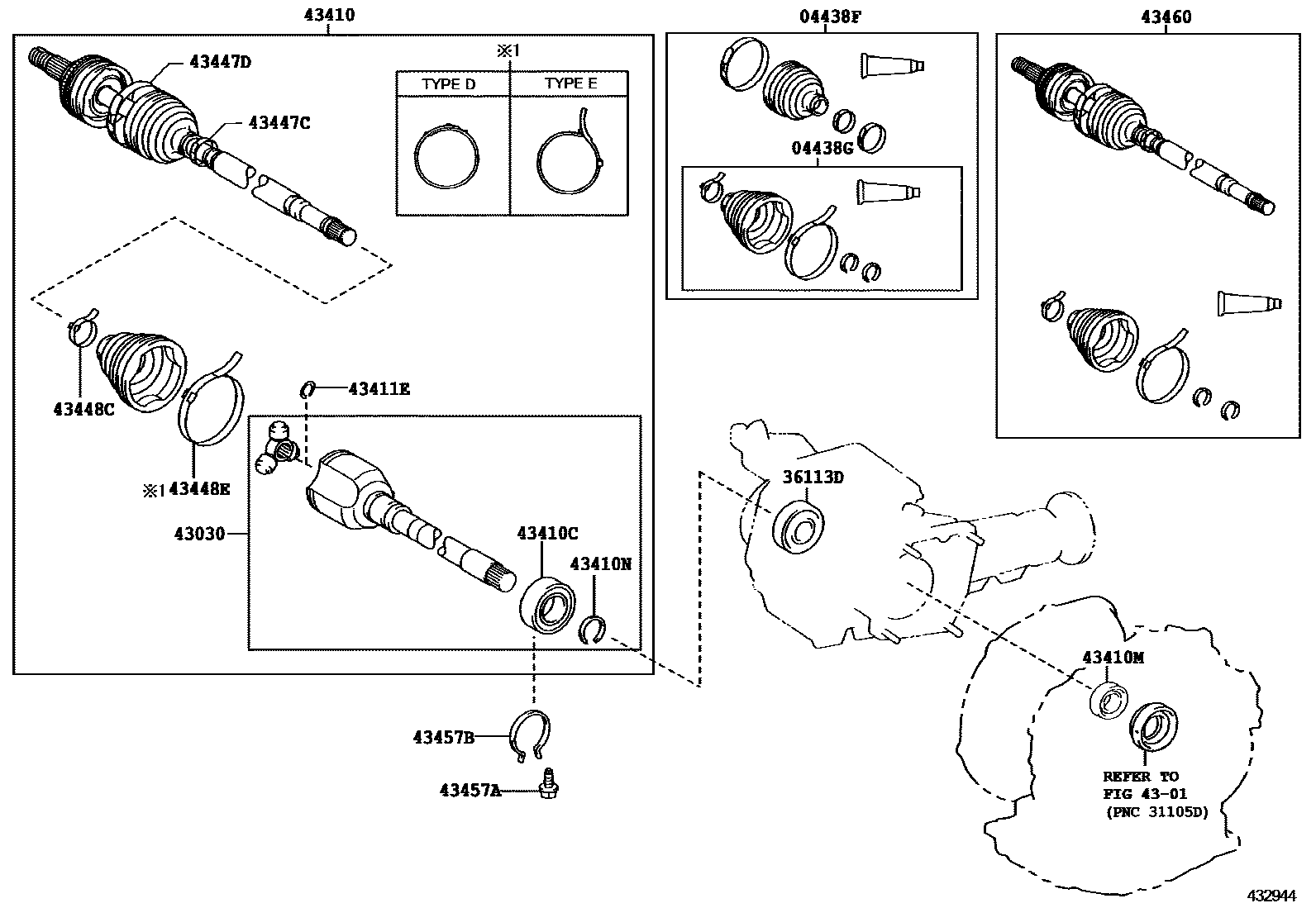

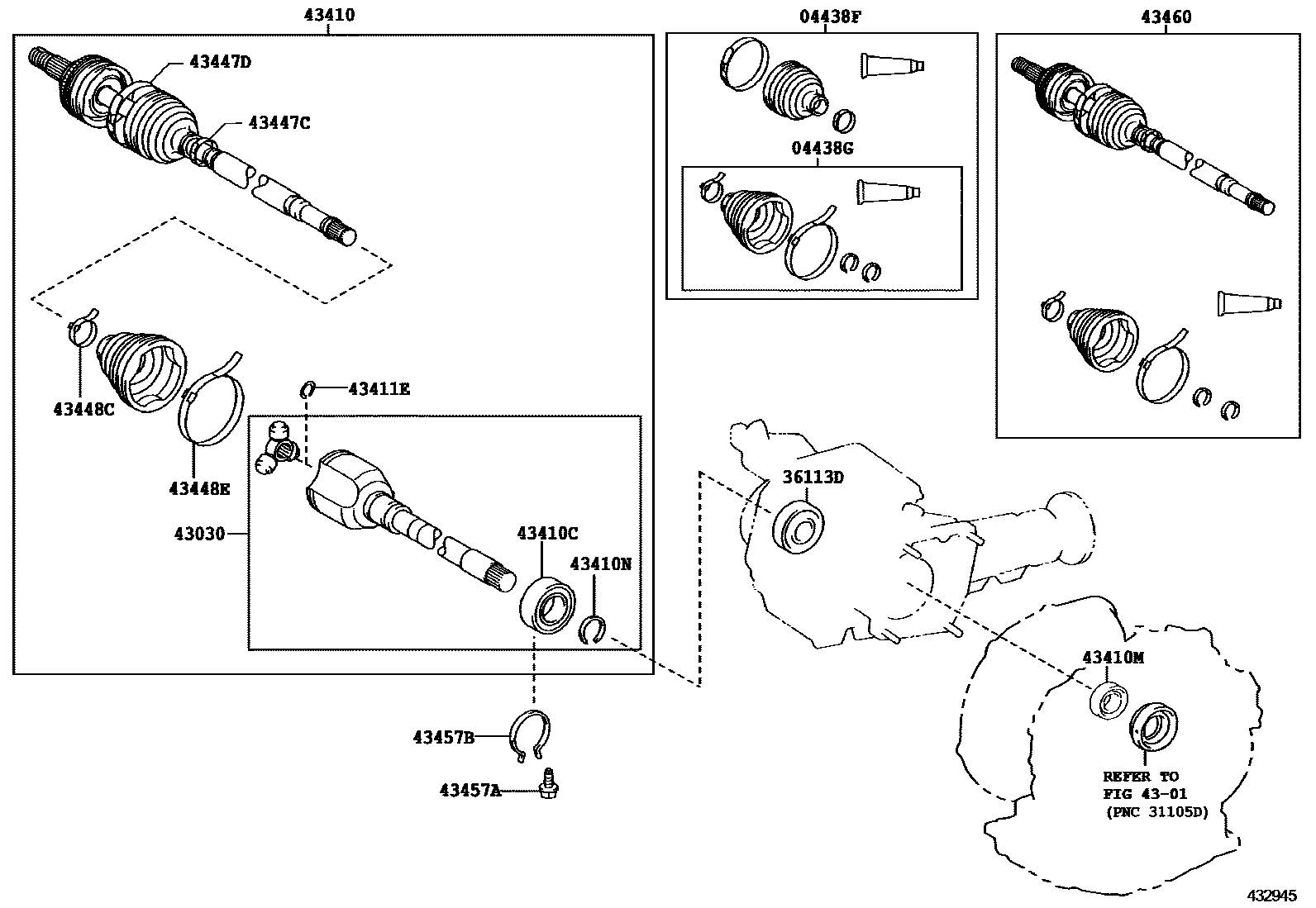

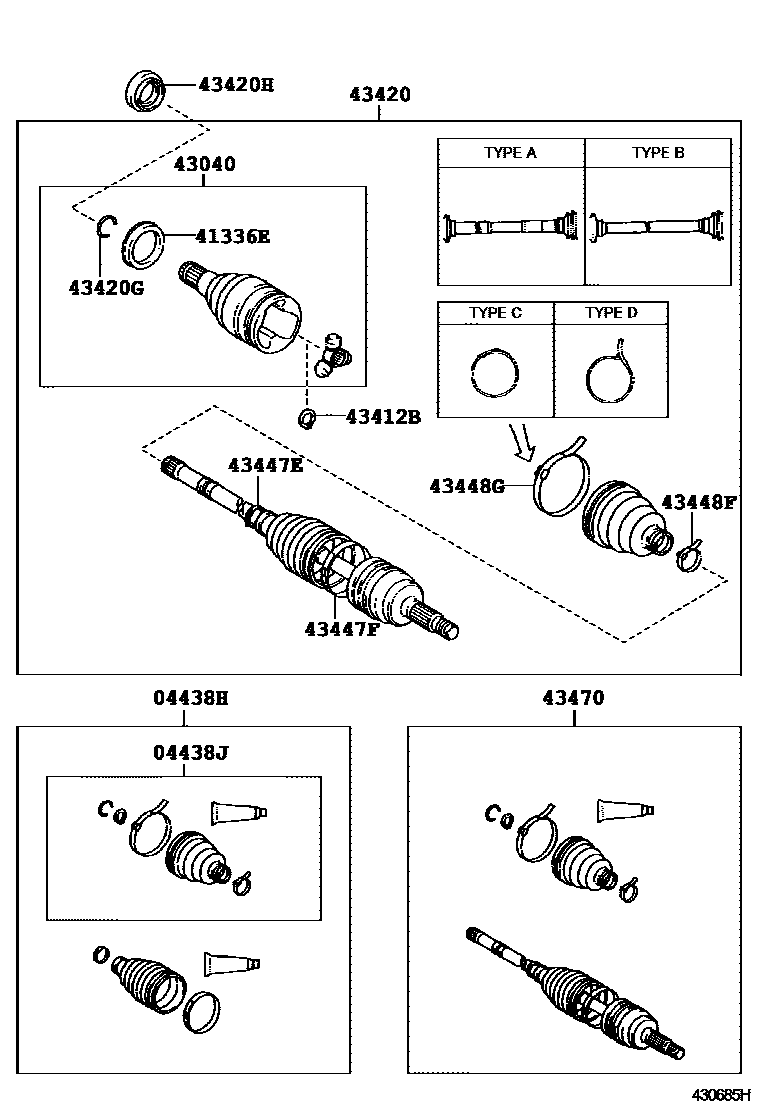

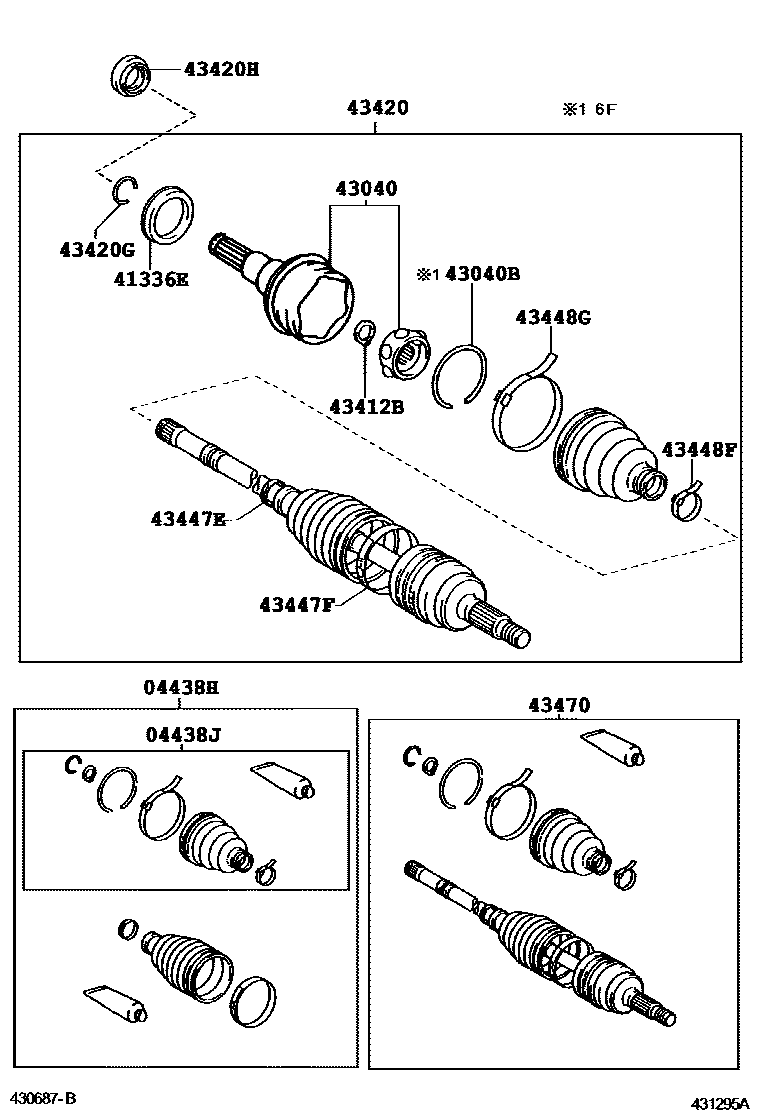

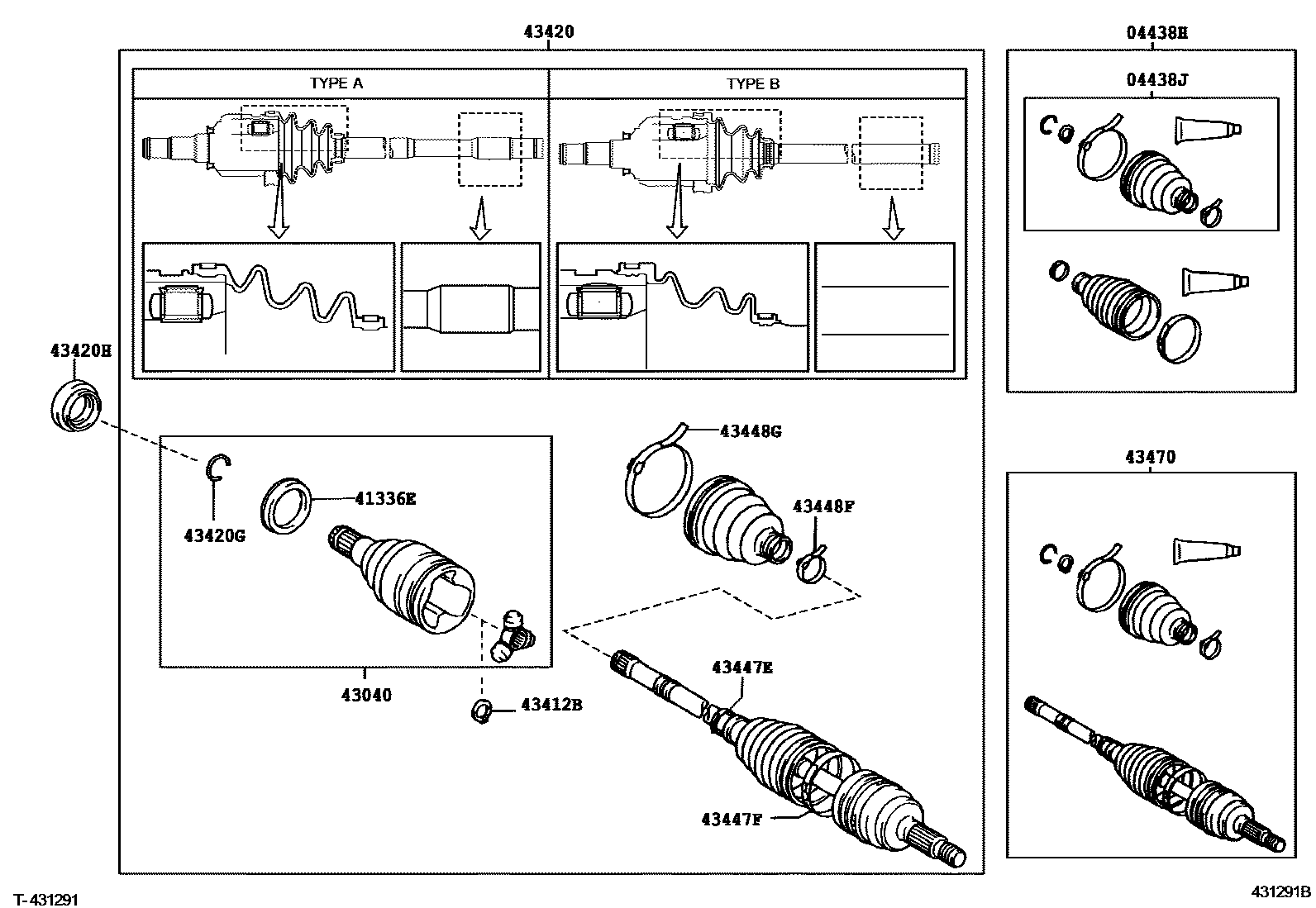

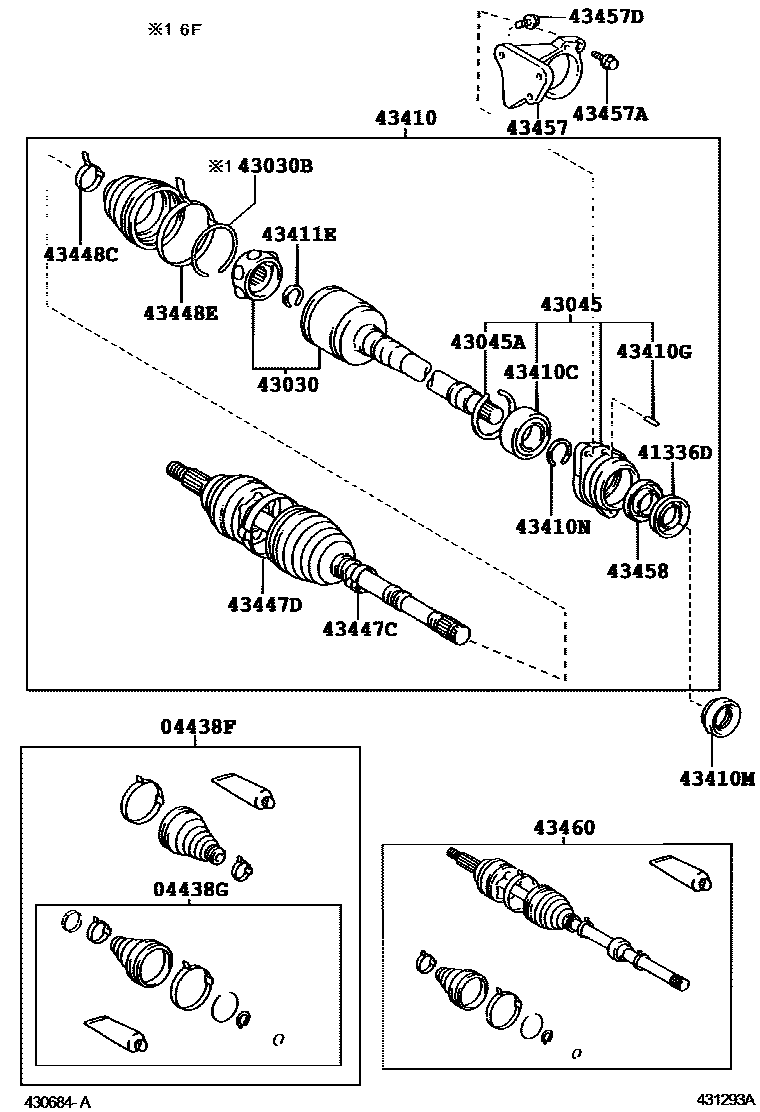

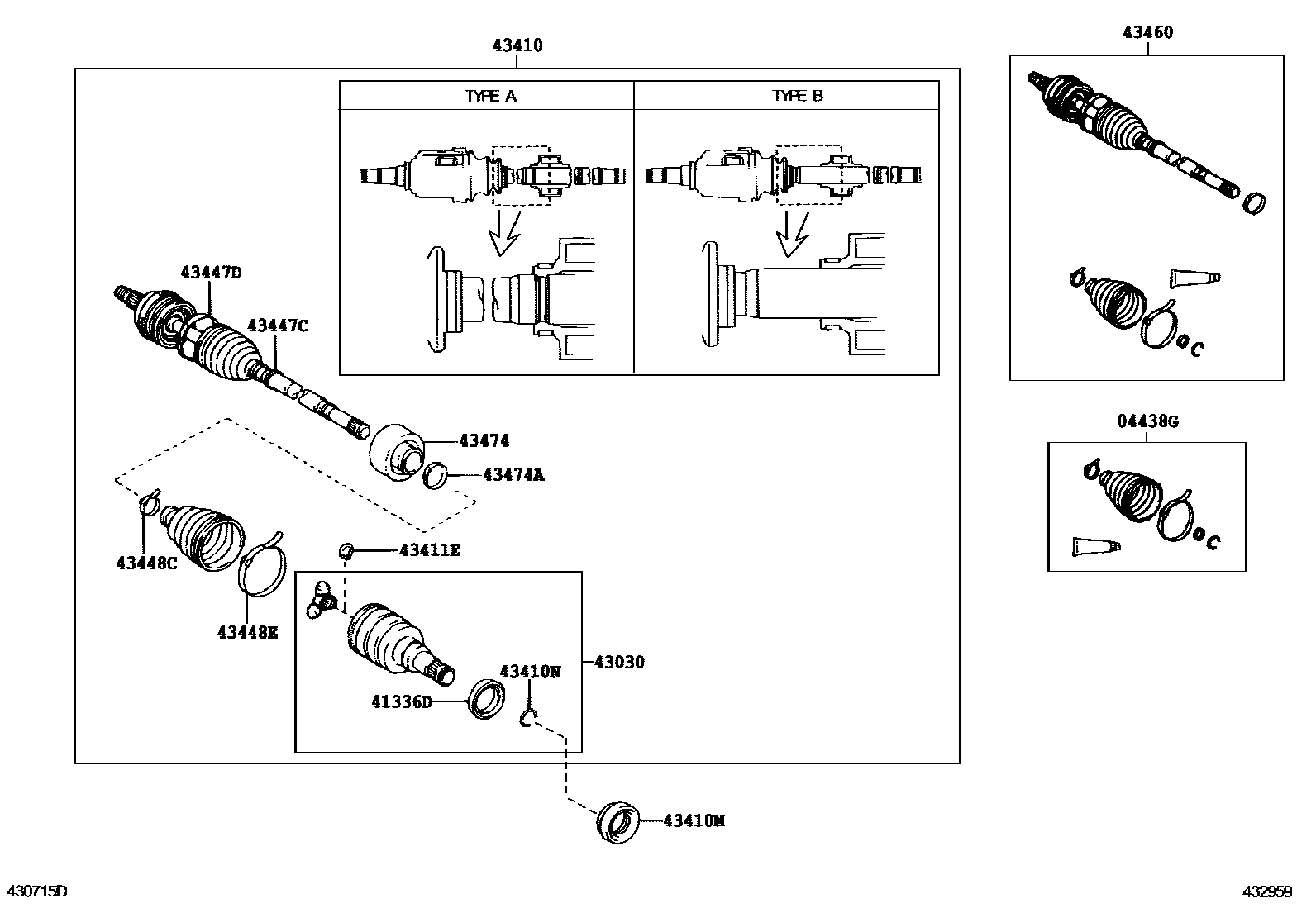

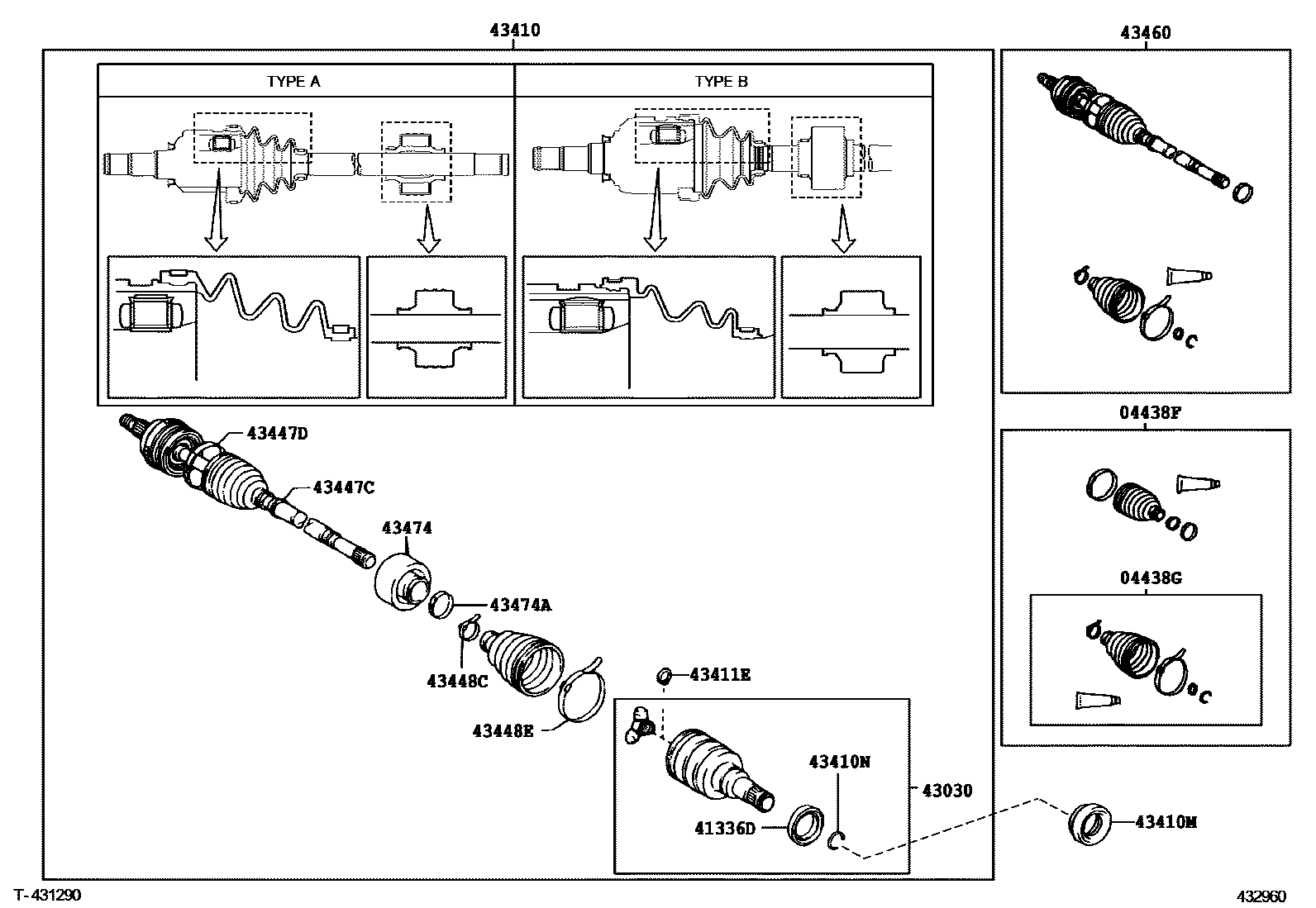

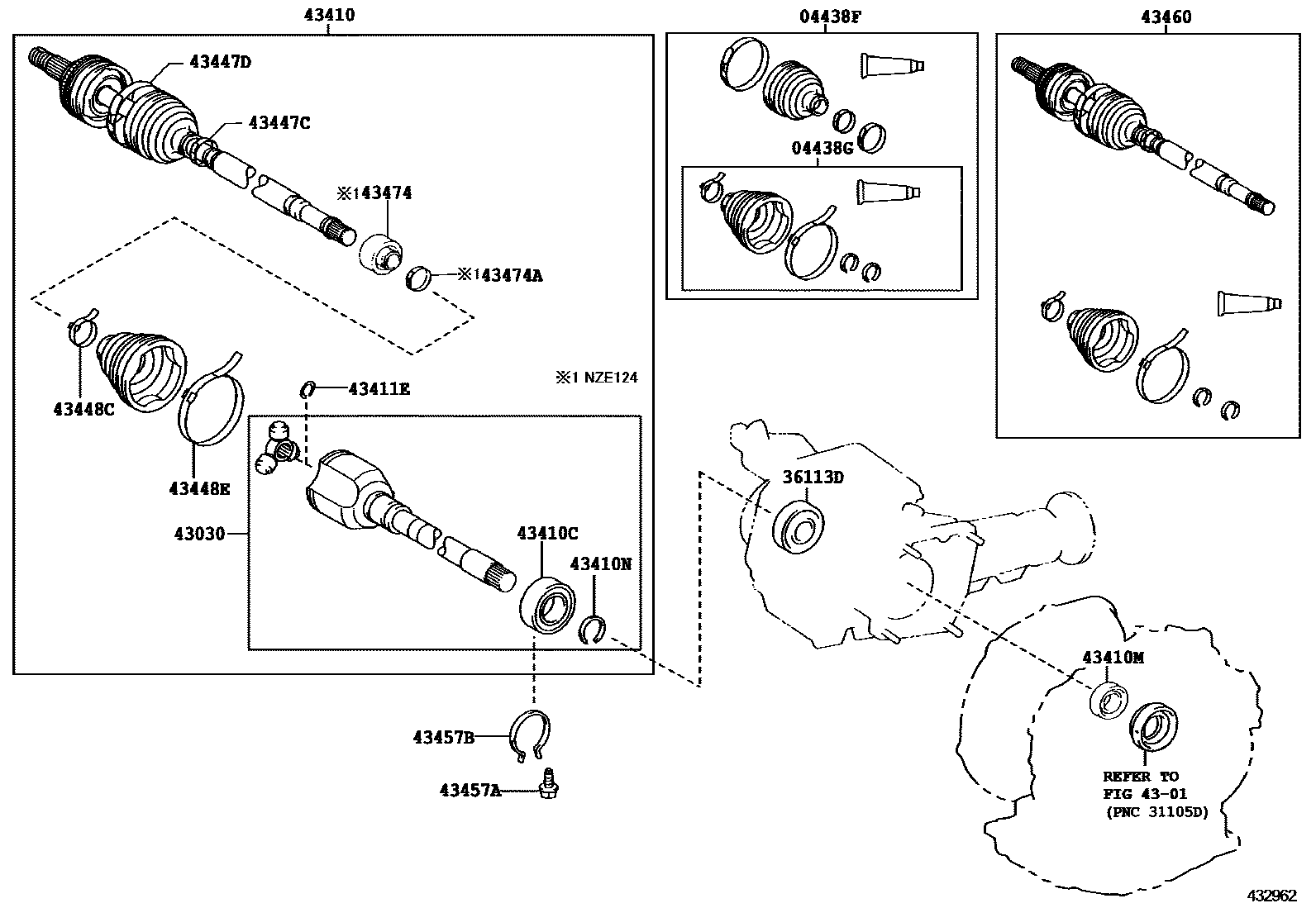

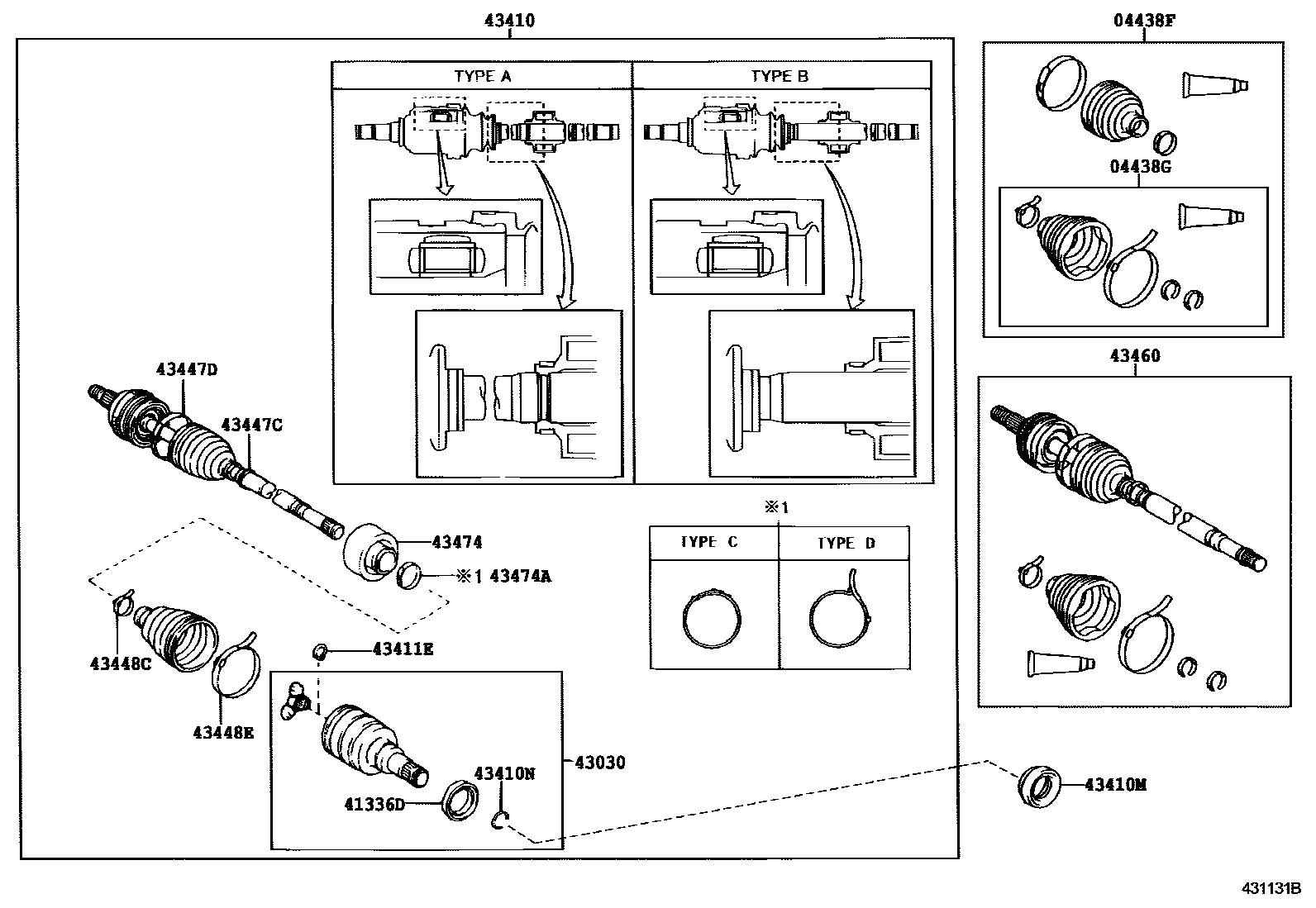

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 18 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-12100 · 04427-12110 · 04427-12120 · 04427-42080 · 04427-52260 · 04427-52540 · 04427-52580 · 04428-12250 · 04428-12370 · 04438-12481 · 04438-12501 · 04438-12502 · 04438-12540 · 04438-12580 · 04438-12610 · 04438-12670 · 04438-52062 · 04438-52063 · 04438-52080 · 04438-63010 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-12090 · 04437-12100 · 04437-42060 · 04437-52030 · 04437-52190 · 04438-12450 · 04438-12490 · 04438-12510 · 04438-12530 · 04438-12870 · 04438-32231 · 04438-32240 · 04438-42200 · 04438-52230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52260 · 04427-52580 · 04428-12310 · 04428-12370 · 04428-12390 · 04428-42100 · 04438-12481 · 04438-12501 · 04438-12502 · 04438-12580 · 04438-12610 · 04438-12640 · 04438-12690 · 04438-63010 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52190 · 04438-12450 · 04438-12490 · 04438-12570 · 04438-12680 · 04438-12870 · 04438-32231 · 04438-32240 · 04438-42200 · 04438-52030 · 04438-52230 |
| 36113D | Toyota part | 90311-36006 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12060 · 41336-20050 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12070 · 43030-12120 · 43030-13010 · 43030-20100 · 43030-52010 · 43040-02020 · 43040-32040 · 43403-02040 · 43403-10011 · 43403-12040 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90520-71002 · 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02020 · 43040-12090 · 43040-13010 · 43040-20070 · 43040-32040 · 43403-02040 · 43403-10011 · 43403-12040 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90520-71002 · 90521-79001 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20010 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 96153-00680 |
| 43410 | Right front driveshaft assembly | 43410-02180 · 43410-02220 · 43410-12490 · 43410-12500 · 43410-12501 · 43410-12510 · 43410-12531 · 43410-12660 · 43410-12670 · 43410-12700 · 43410-13060 |
| 43410C | Bearings (for front driveshaft) | 90363-36004 · 90363-36006 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410M | Toyota part | 90311-34023 · 90311-34031 · 90311-35019 · 90311-35045 · 90311-35051 · 90311-35055 · 90311-35057 · 90316-28003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90521-26004 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-13010 · 90520-22001 · 90520-22005 · 90520-23056 · 90520-25034 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-13010 · 90520-22001 · 90520-22005 · 90520-23056 · 90520-25034 |
| 43420 | Left front drive shaft assembly | 43420-02240 · 43420-12420 · 43420-12440 · 43420-12450 · 43420-12460 · 43420-12580 · 43420-12590 · 43420-12630 · 43420-13040 · 43420-20581 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 |
| 43420H | Toyota part | 90311-34022 · 90311-34030 · 90311-35019 · 90311-35044 · 90311-35046 · 90311-35054 · 90311-35058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12150 · 42345-52110 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12080 · 42345-12140 · 42345-52100 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12150 · 42345-52110 · 90949-01A65 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12080 · 42345-12140 · 42345-52100 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90949-01078 · 90949-01108 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 · 42346-22010 · 90949-01146 · 90949-01802 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12160 · 90949-01078 · 90949-01108 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 · 42346-22010 · 90949-01146 · 90949-01802 |
| 43457 | drive shaft bearing bracket | 43457-20080 · 43457-32070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 · 90119-10952 · 90901-19060 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-20011 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09440 · 43460-09470 · 43460-19795 · 43460-19805 · 43460-19835 · 43460-39126 · 43460-80001 · 43460-80004 · 43460-80011 · 43460-80024 · 43460-80028 · 43460-80040 · 43460-80043 · 43460-80045 · 43460-80046 · 43460-80047 · 43460-80052 · 43470-80007 · 43470-80046 · 43470-80106 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09670 · 43470-09700 · 43470-29655 · 43470-80003 · 43470-80004 · 43470-80007 · 43470-80008 · 43470-80015 · 43470-80018 · 43470-80027 · 43470-80047 · 43470-80095 · 43470-80096 · 43470-80097 · 43470-80114 · 43470-80118 · 43470-80165 |
| 43474 | drive shaft damper | 43474-12040 · 43474-12120 · 43474-12130 · 43474-13030 · 43474-52030 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 |
