Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

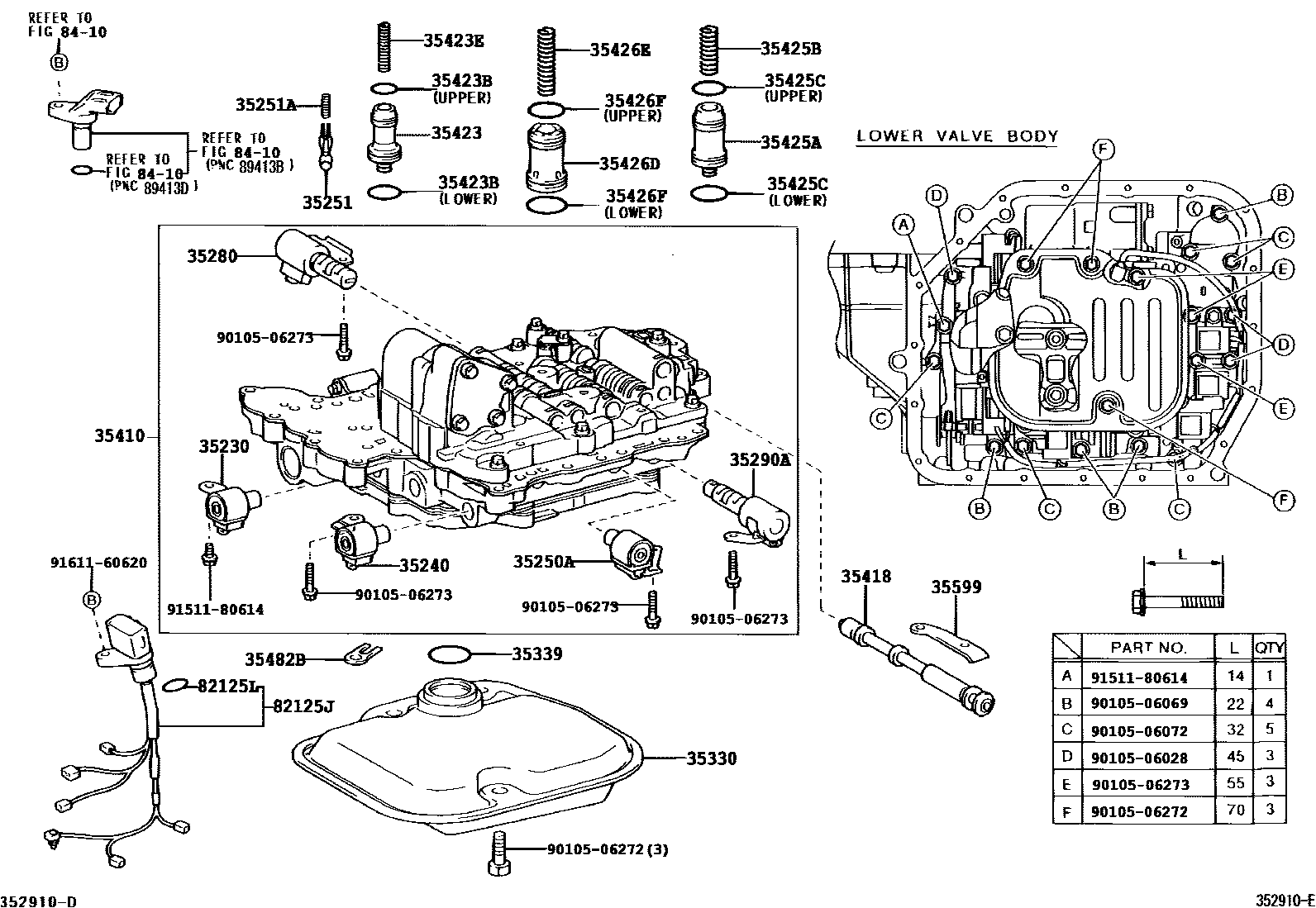

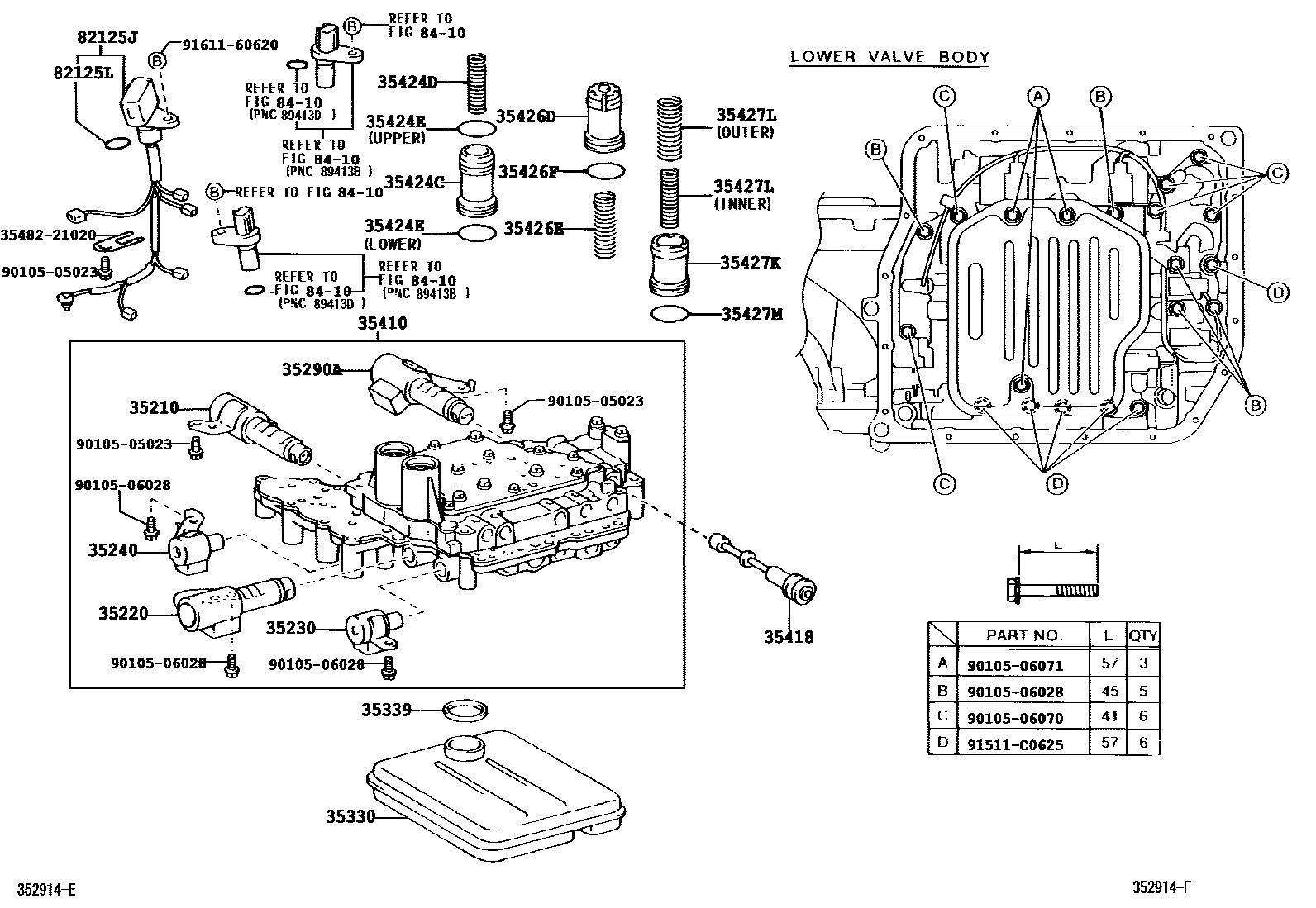

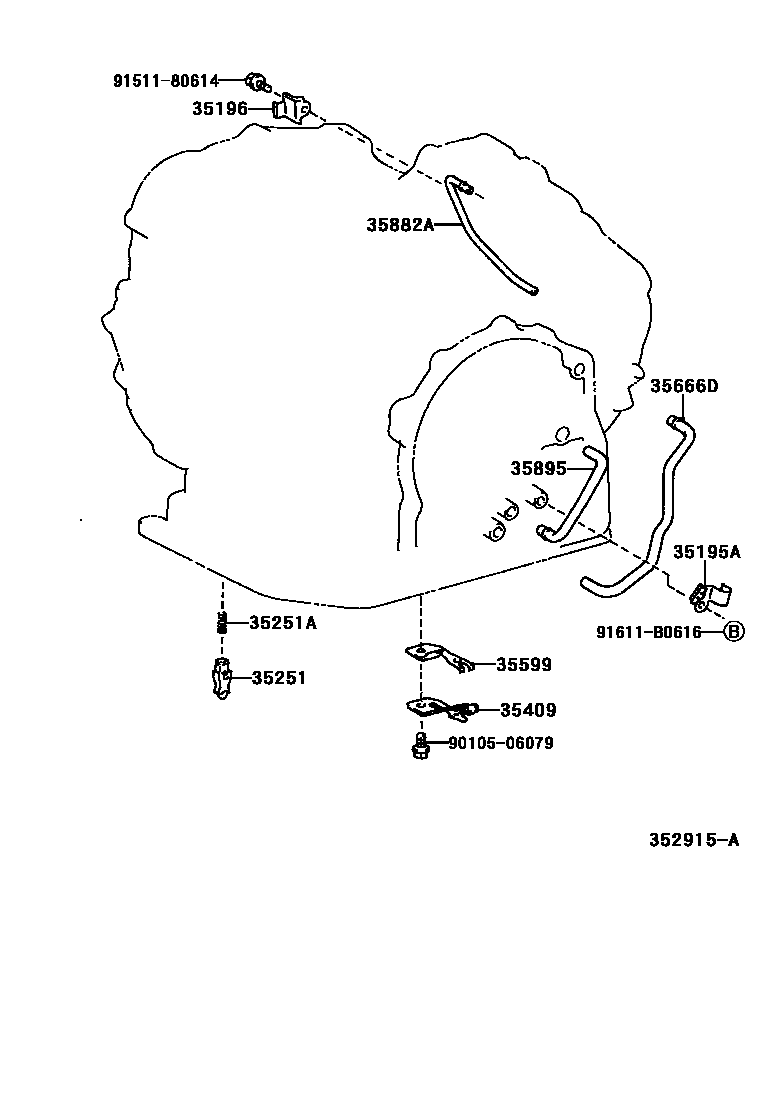

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-21010 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-21010 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-21010 |
| 35220 | No. 2 clutch control solenoid valve assembly | 35220-21010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-21010 · 35230-52010 · 35230-52011 · 35230-52020 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-21010 · 35240-52010 · 35240-52011 · 35240-52050 |
| 35250A | No. 3 transmission solenoid valve assembly | 35250-52010 · 35250-52080 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35280 | Lock control solenoid valve assembly | 35280-52020 |
| 35290A | Pipe pressure control solenoid valve assembly | 35290-32010 · 35290-52020 · 35290-52030 |
| 35330 | Valve body oil filter assembly | 35330-06010 · 35330-0W020 |
| 35339 | Oil filter gasket | 90301-32010 |
| 35409 | Manual lock spring sub-assembly | 35409-21010 |
| 35410 | Transmission valve body assembly | 35410-20500 · 35410-42040 · 35410-42041 · 35410-42042 · 35410-42060 · 35410-52060 · 35410-52061 · 35410-52062 · 35410-52190 |
| 35418 | Manual valve | 35418-21011 · 35418-52020 |
| 35423 | B-2 Accumulator Piston | 35403-52020 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-20010 · 90301-29011 |
| 35423E | Compression spring (for B-2 accumulator piston) | 90501-18119 · 90501-20158 |
| 35424C | C-1 Accumulator Piston | 35424-21010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22049 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-27008 · 90301-30007 |
| 35425A | C-2 Accumulator Piston | 35405-52020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-24036 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-22010 · 90301-35004 |
| 35426D | C-3 Accumulator Piston | 35406-21010 · 35426-52020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-23149 · 90501-25057 · 90905-01035 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-24016 · 90301-29011 · 90301-30007 |
| 35427K | B-3 Accumulator Piston | 35427-21010 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90501-22038 · 90501-25053 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-28008 |
| 35482B | temperature sensor clip | 35482-52020 |
| 35599 | Manual locking spring cover | 35599-21010 · 35599-52010 |
| 35666D | Brake oil supply pipe | 35666-32010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-32020 |
| 35895 | Front clutch oil supply pipe | 35895-21010 |
| 82125J | Transmission wiring harness | 82125-20260 · 82125-28180 · 82125-52100 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
