Toyota COROLLA Manifold — Figure 1701

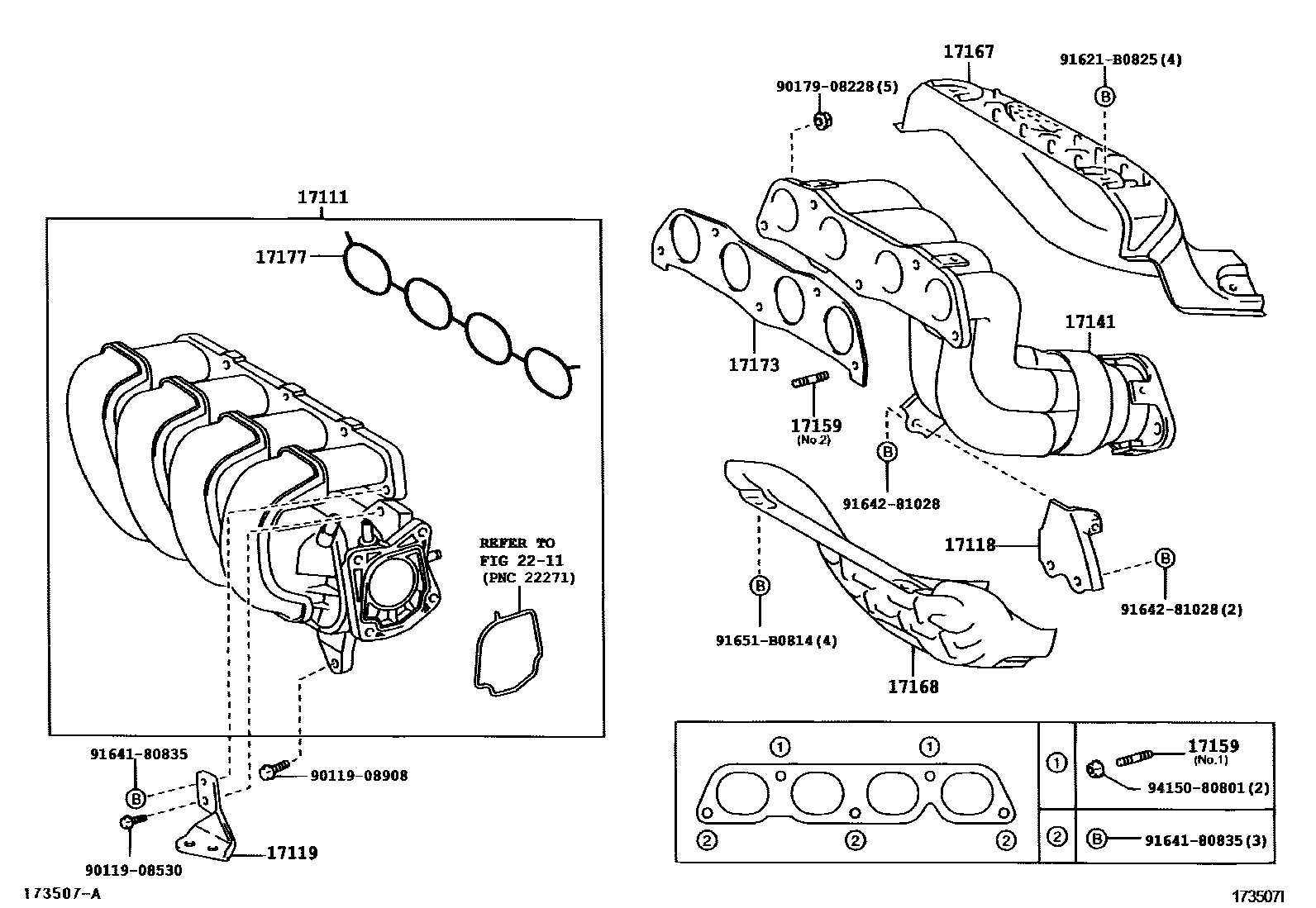

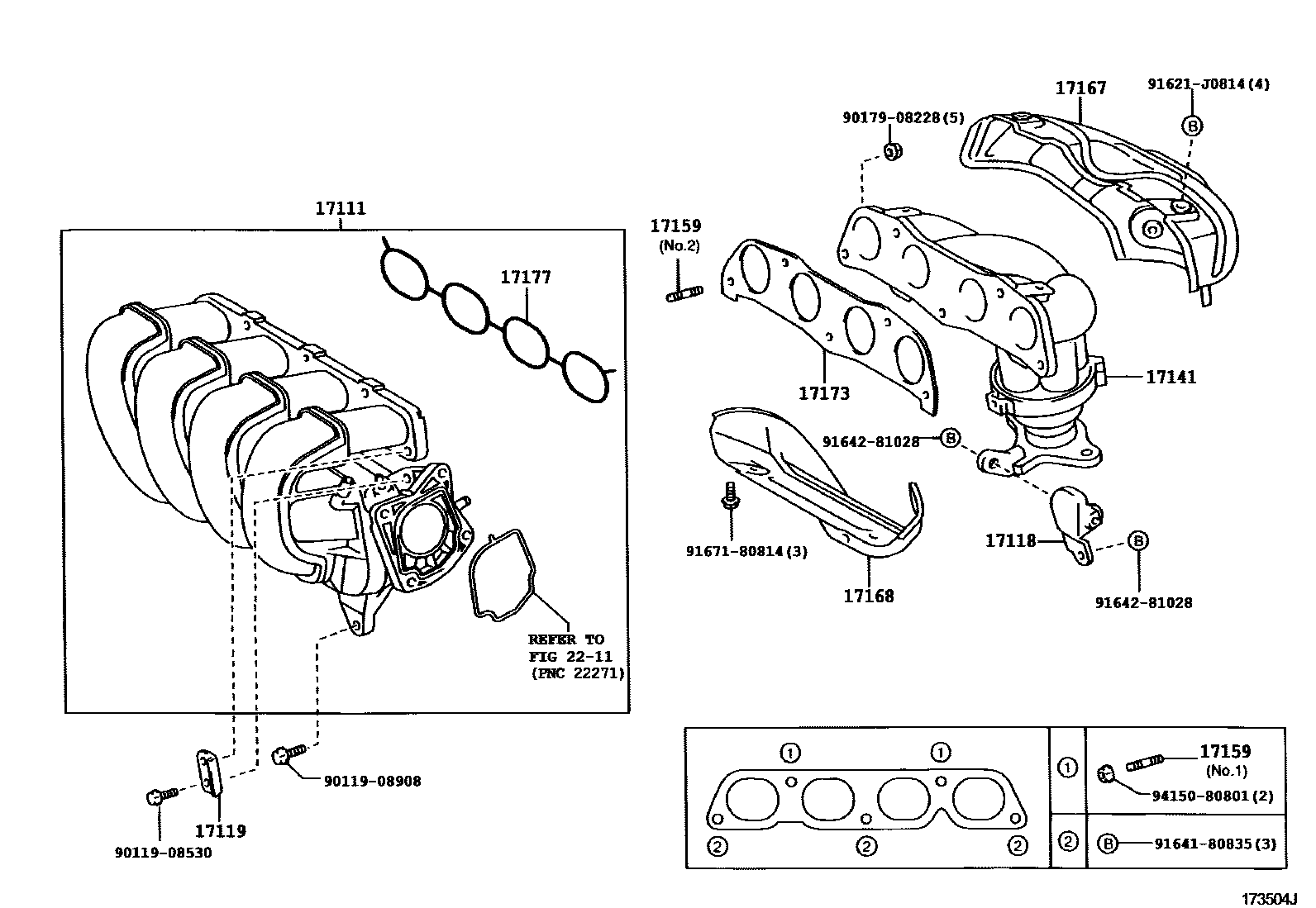

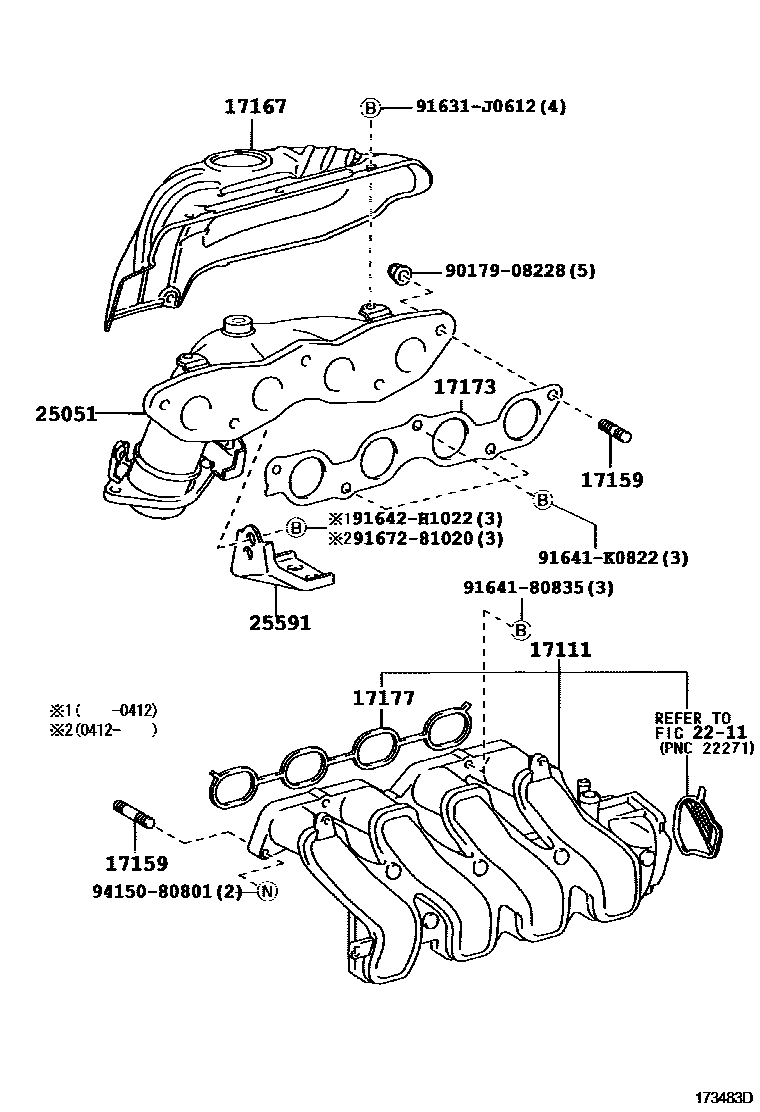

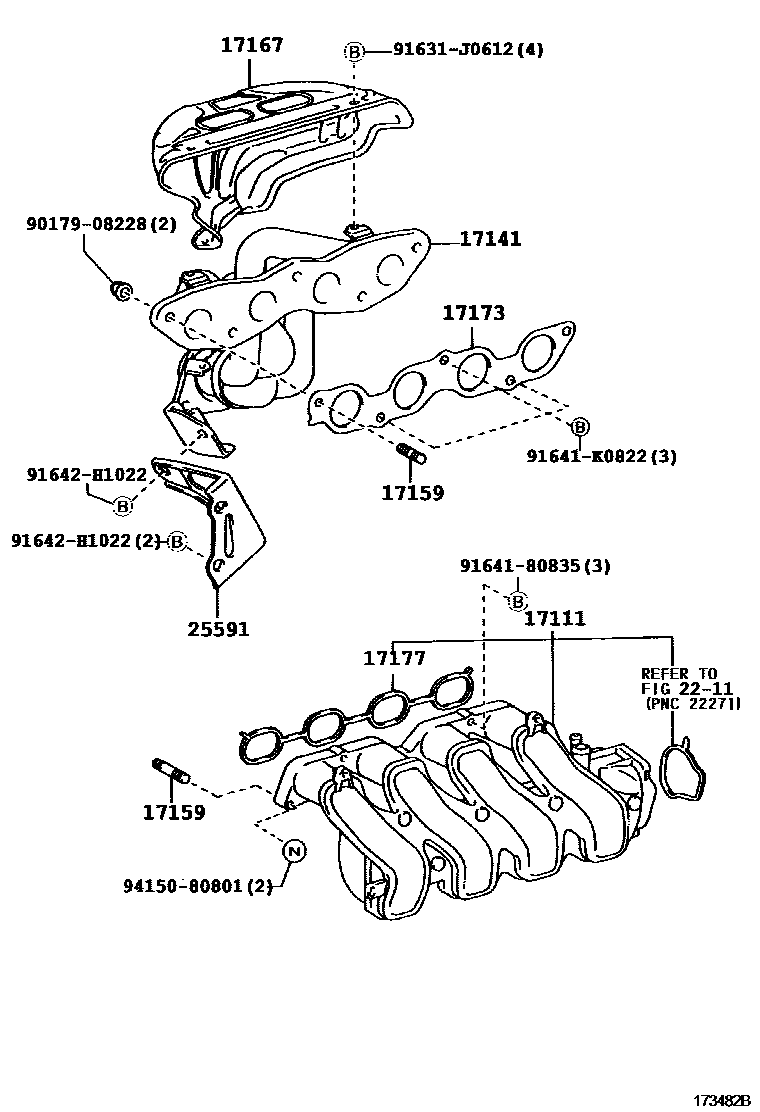

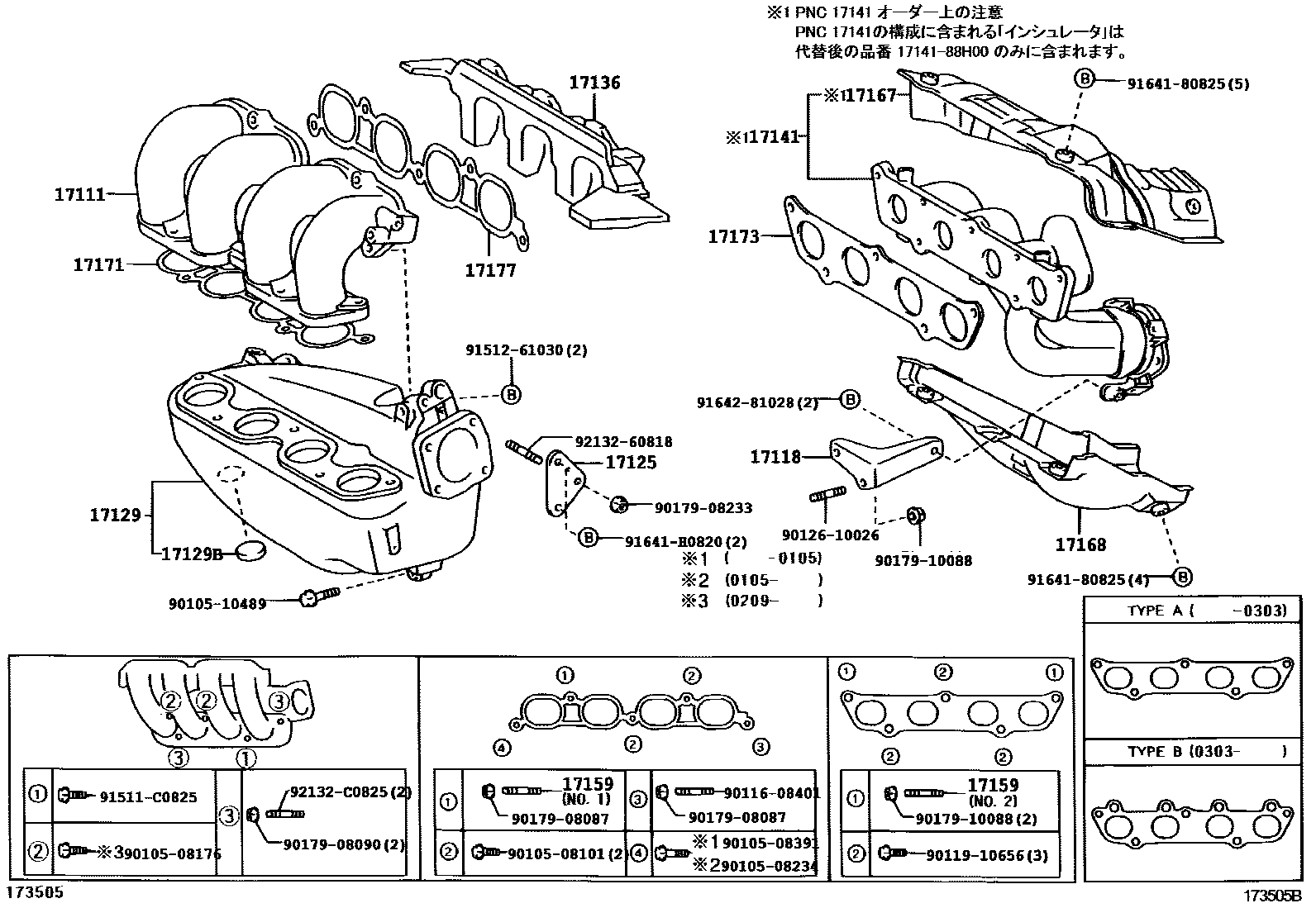

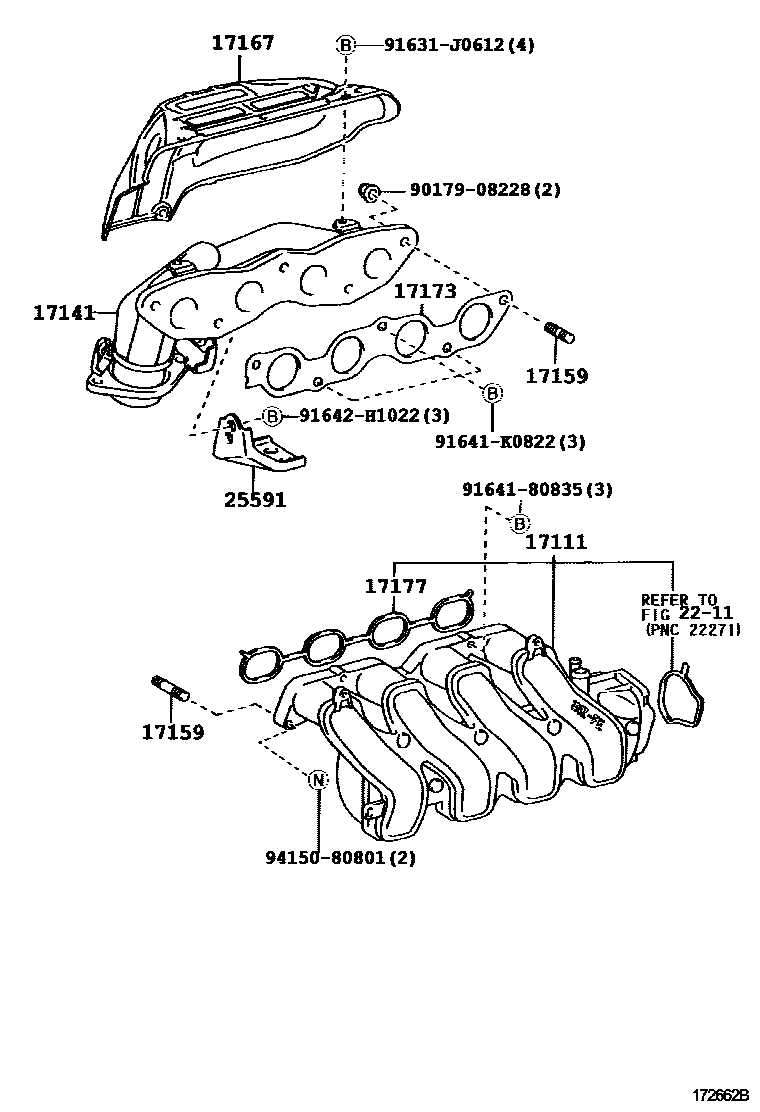

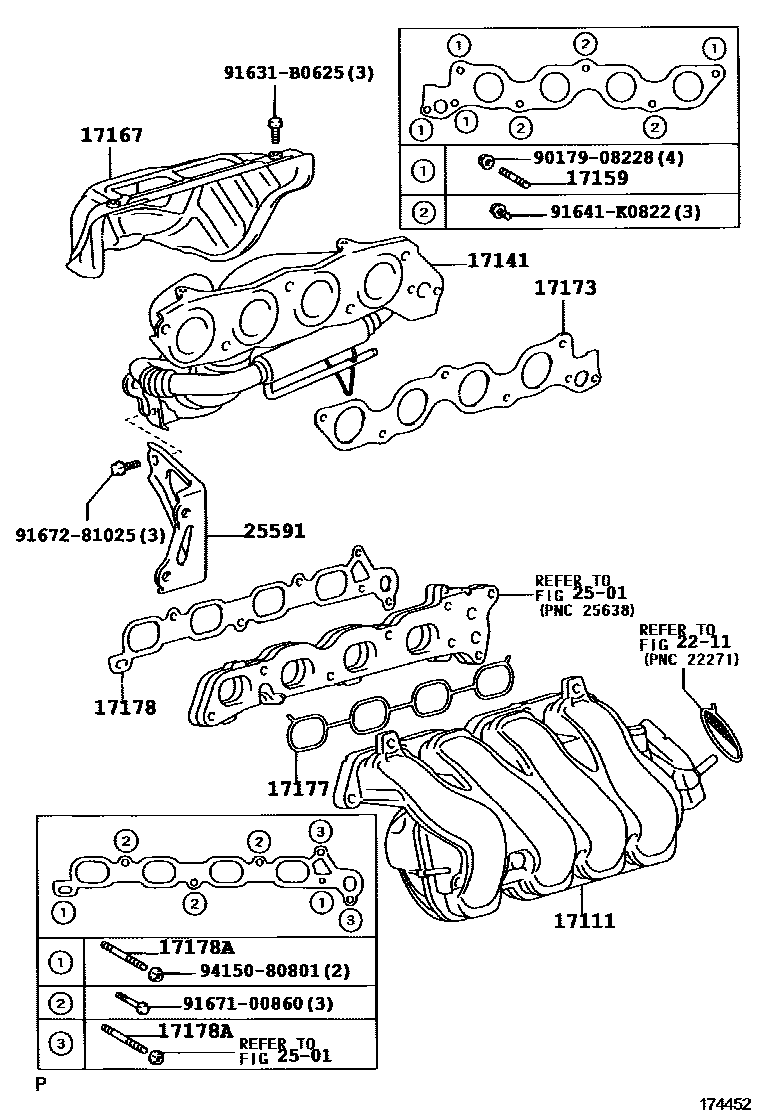

Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-21050 · 17101-21070 · 17111-88600 · 17111-88601 · 17120-22030 |
| 17118 | Manifold stays | 17118-22010 · 17118-22020 · 17118-22070 |
| 17119 | No. 2 manifold stay | 17139-22030 |
| 17125 | No. 1 pressure tank stay | 17125-88600 |
| 17129 | Intake pressure tank | 17109-88601 |
| 17129B | Screw plug | 96411-43000 |
| 17136 | Intake manifold No. 2 heat shield | 17136-88600 · 17136-88601 |
| 17141 | exhaust manifold | 17104-21020 · 17104-22100 · 17104-22110 · 17141-21050 · 17141-21070 · 17141-21090 · 17141-88600 · 17141-88601 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10169 · 90126-08026 · 90126-08037 · 90126-08043 · 92122-80822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-21030 · 17167-21040 · 17167-21060 · 17167-21070 · 17167-21080 · 17167-22080 · 17167-22090 · 17167-22110 · 17167-88602 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-22080 · 17168-22090 · 17168-88600 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-22040 · 17171-88600 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-21020 · 17173-21030 · 17173-22010 · 17173-88600 · 17173-88601 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-22030 · 17177-21020 · 17177-21030 · 17177-22010 · 17177-88600 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-21010 |
| 17178A | Hexagonal studs (intake manifold to cylinder head gasket) | 90126-08049 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-21010 |
| 25591 | Manifold bracket | 25591-21020 · 25591-21030 |
