Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 2 PNC and OE references.

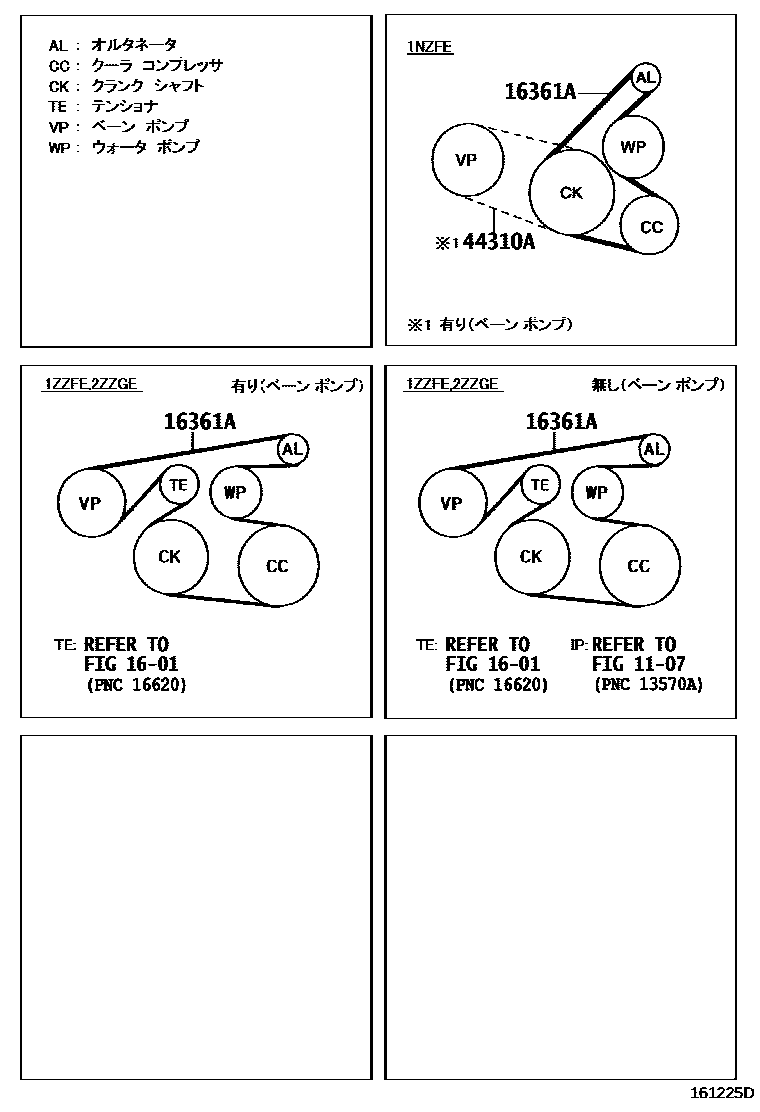

Toyota COROLLA V-Belt EPC diagram — 161225D
V-Belt — 161225D (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02500 · 90916-02504 · 90916-02516 · 90916-02551 · 90916-02556 · 90916-02569
44310AV-belt (for vane pump)90916-02575
