Toyota COROLLA Engine Oil Pump — Figure 1501

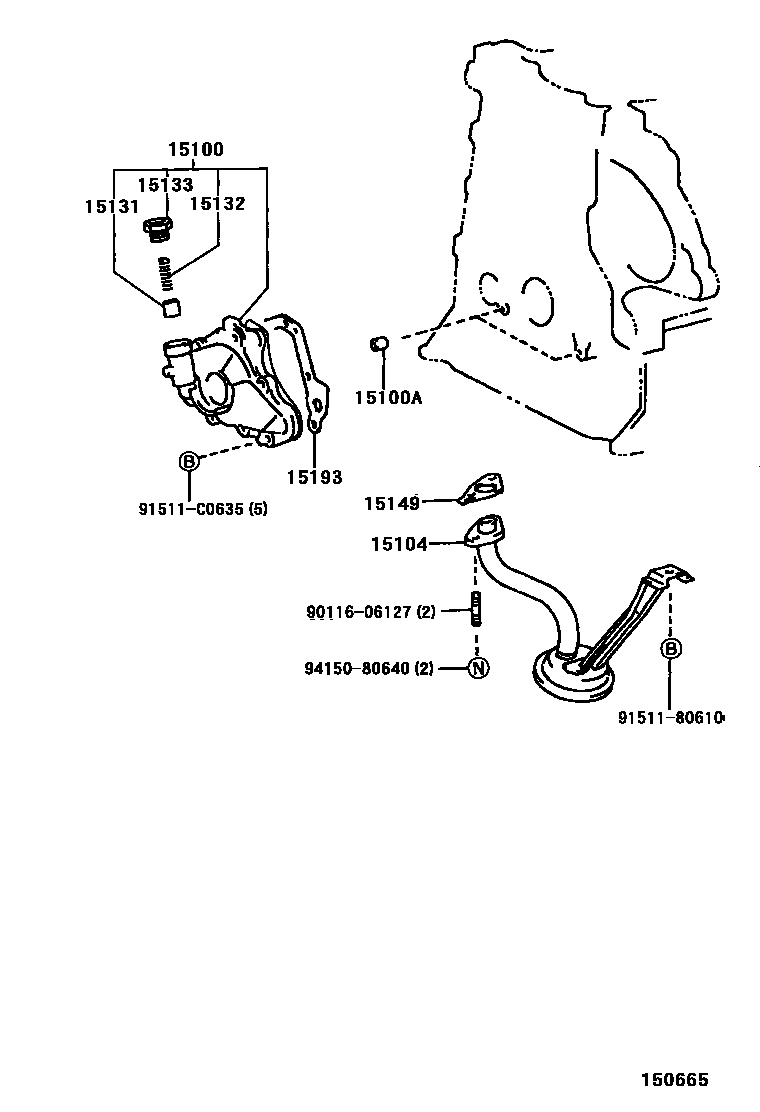

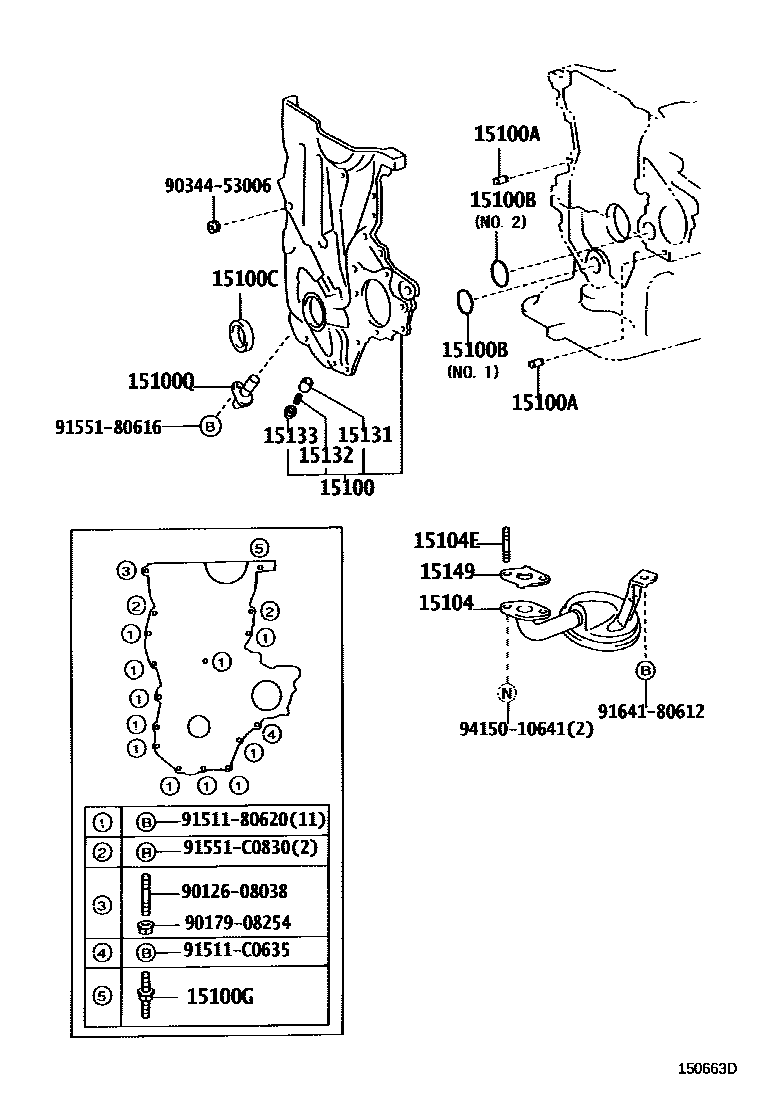

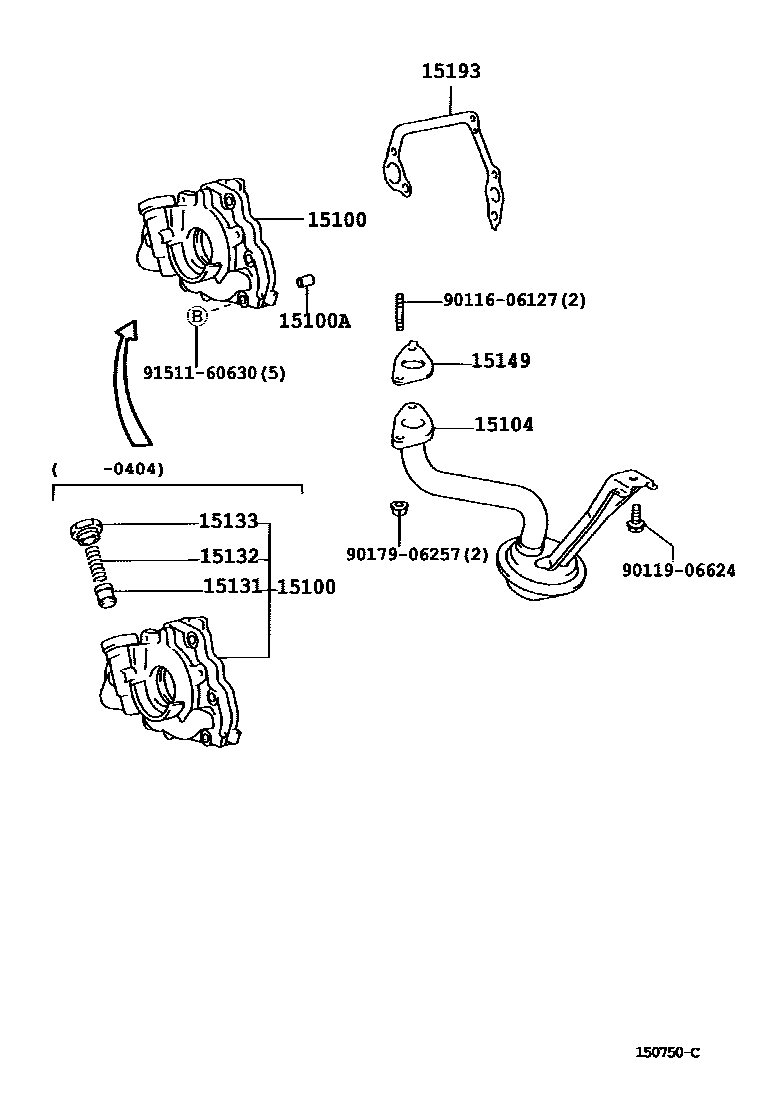

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-21040 · 15100-21060 · 15100-22041 · 15100-88600 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 · 90253-09003 |
| 15100B | O-ring (for oil pump) | 90301-31012 · 90301-42006 |
| 15100C | Seals (for oil pump) | 90311-25021 |
| 15100G | Stud bolt (for oil pump) | 90109-08283 |
| 15100Q | crankshaft position sensor | 90919-05045 |
| 15104 | Oil filter sub-assembly | 15104-21021 · 15104-22023 · 15104-88600 · 15104-88601 |
| 15104E | Stud bolts (for oil filter) | 90126-06021 |
| 15131 | Oil pump pressure reducing valve | 15131-21020 · 15131-24010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-21020 · 15132-21060 · 15132-22040 · 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-17010 · 15133-20010 · 15133-21020 · 15133-21030 |
| 15149 | Oil filter flange gasket | 15149-22010 · 15149-88600 · 16258-21010 · 16258-21030 |
| 15193 | oil pump gasket | 15193-88600 · 15197-22010 |
