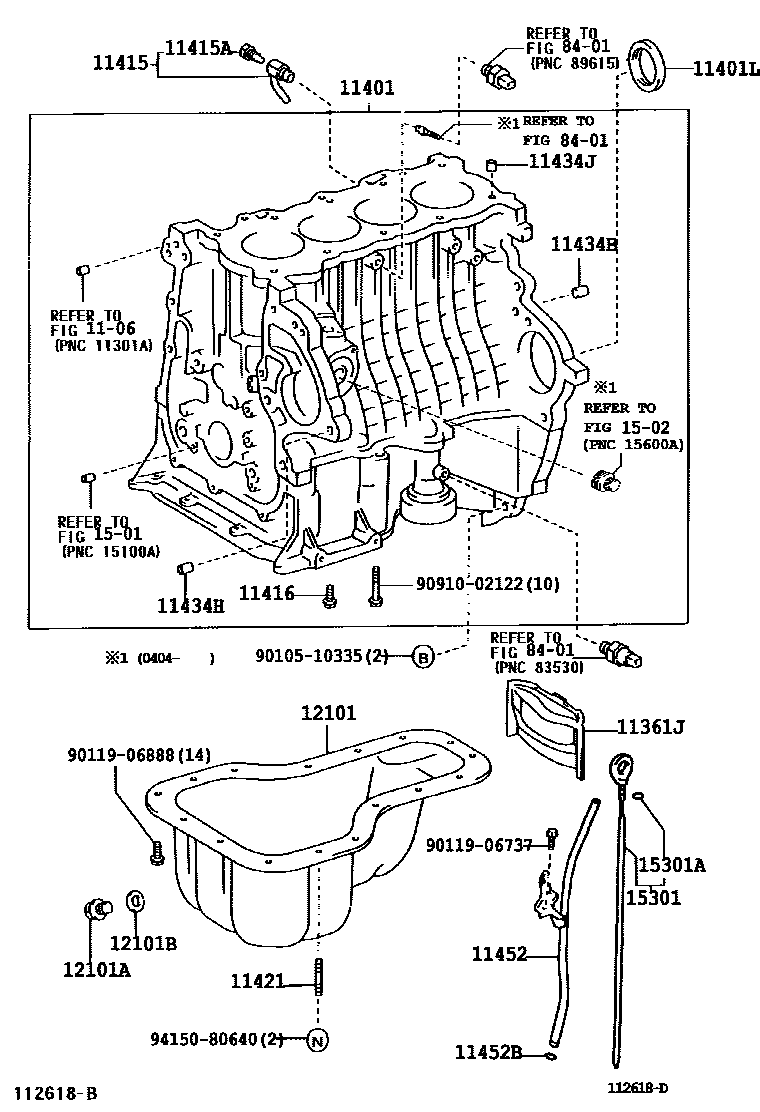

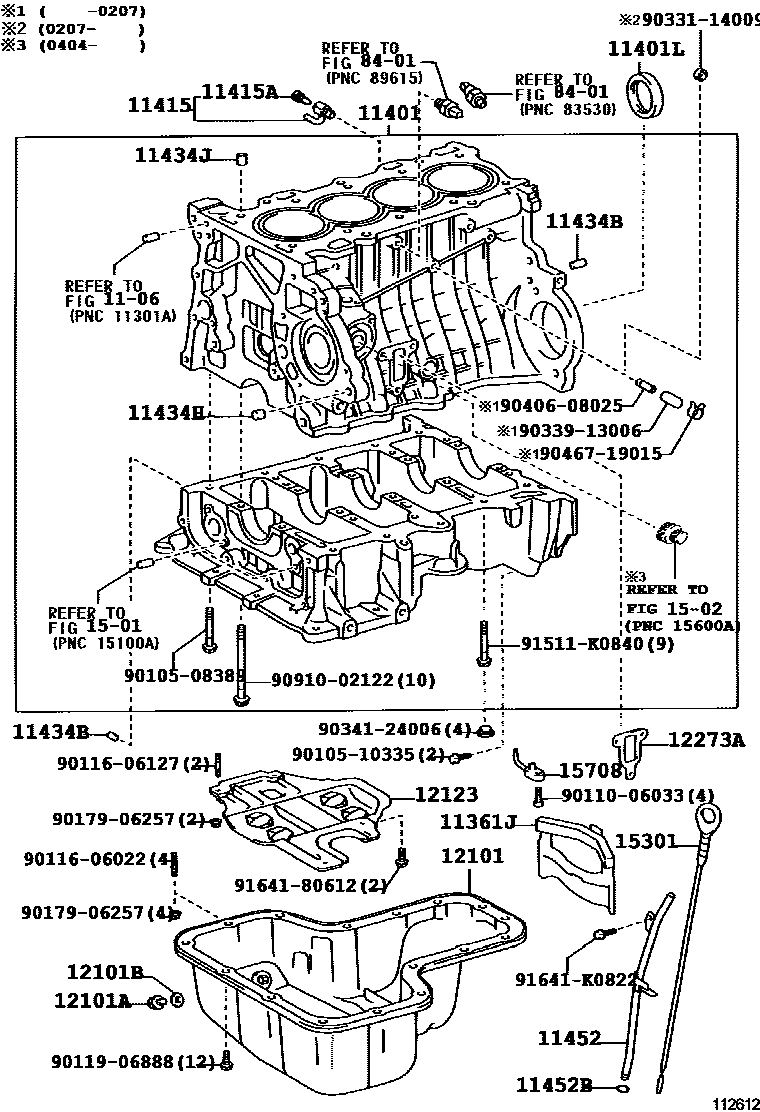

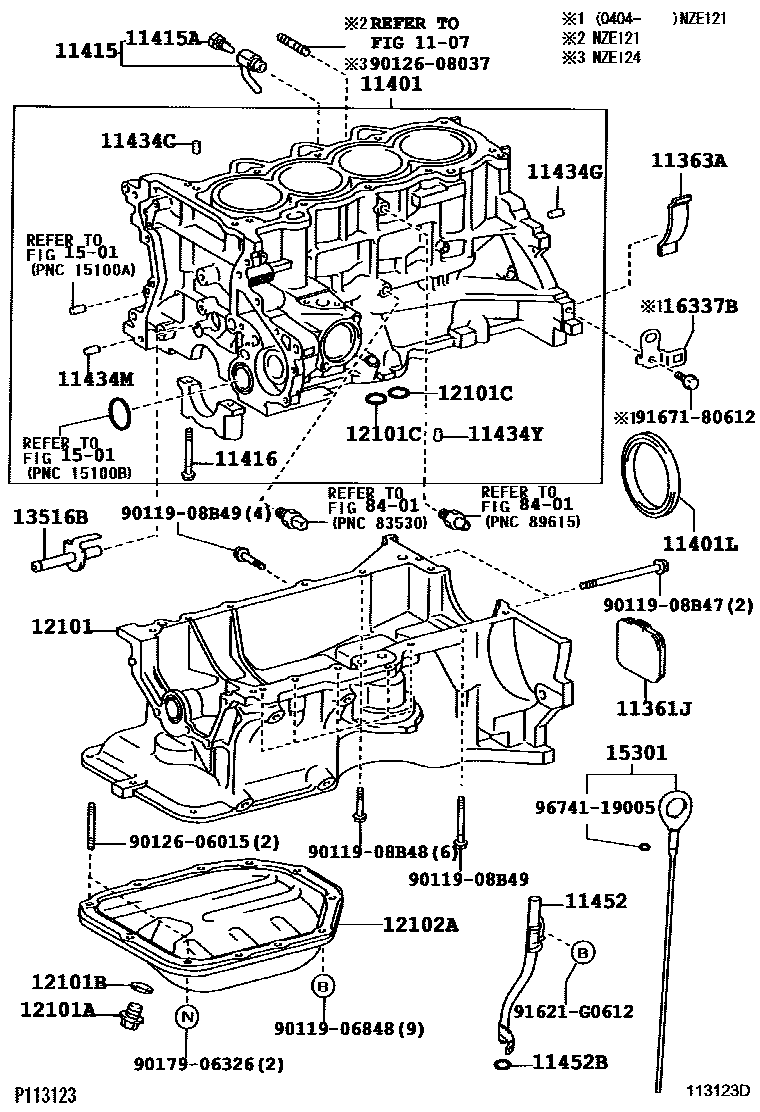

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0D020 · 11361-21010 · 11361-21011 · 11361-22021 |
| 11363A | Flywheel housing side cover | 11363-21010 |
| 11401 | Cylinder block sub-assembly | 11401-29686 · 11401-29755 · 11401-29855 · 11401-29865 · 11410-29075 · 11410-29086 · 11410-29096 · 11410-29165 · 11410-29175 · 11410-29225 · 11410-29285 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75016 · 90311-76001 · 90311-85010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90080-10199 · 90910-02125 · 91511-K0840 |
| 11421 | Stud bolts (for oil pan) | 90126-06010 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-06003 · 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11452 | Engine oil level gauge guide | 11452-21030 · 11452-22030 · 11452-88600 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-22024 · 12101-22040 · 12111-21032 · 12111-21033 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 96722-24020 |
| 12102A | No. 2 oil pan sub-assembly | 12102-21010 |
| 12123 | No. 3 oil pan baffle | 12123-88603 |
| 12273A | oil separator gasket | 12273-88600 |
| 13516B | oil nozzle | 13516-21010 |
| 15301 | Engine oil level scoring assembly | 15301-21030 · 15301-22030 · 15301-22050 · 15301-88600 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-88601 |
| 16337B | No. 1 water outlet stay | 16337-21010 |
