Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

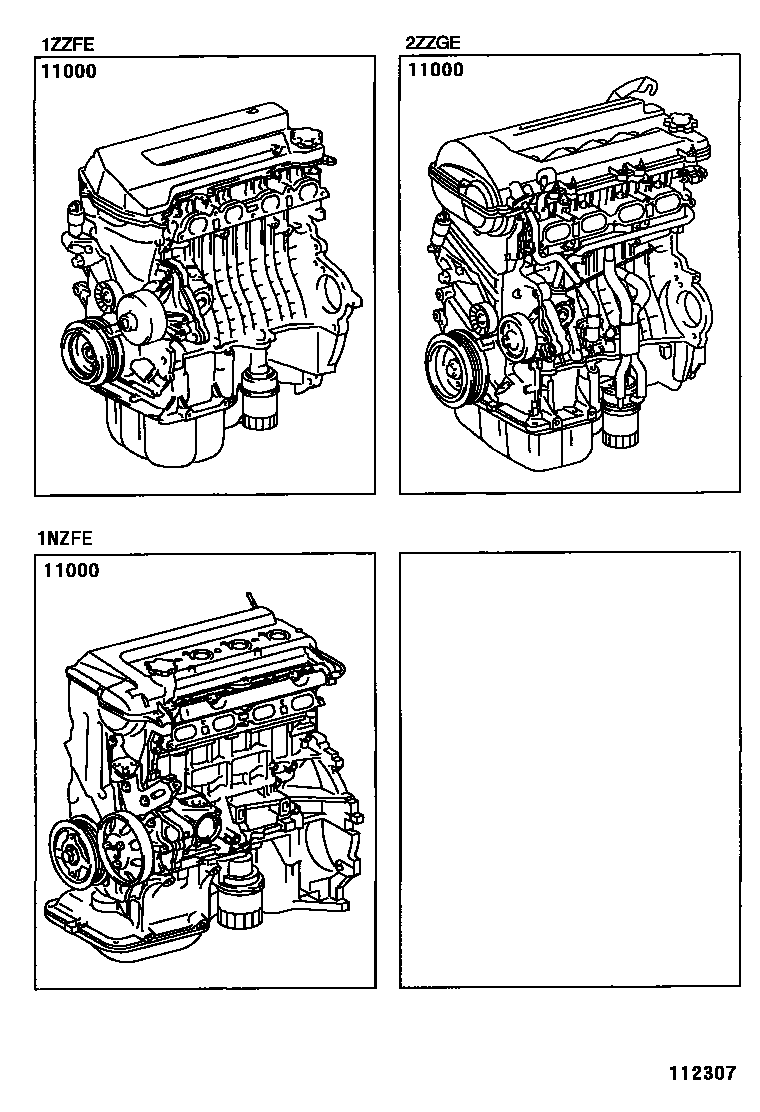

Toyota COROLLA Partial Engine Assembly EPC diagram — 112307
Partial Engine Assembly — 112307 (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-21121 · 19000-21122 · 19000-21131 · 19000-21200 · 19000-21A20 · 19000-22310 · 19000-22340 · 19000-22341 · 19000-88704 · 19000-88716
