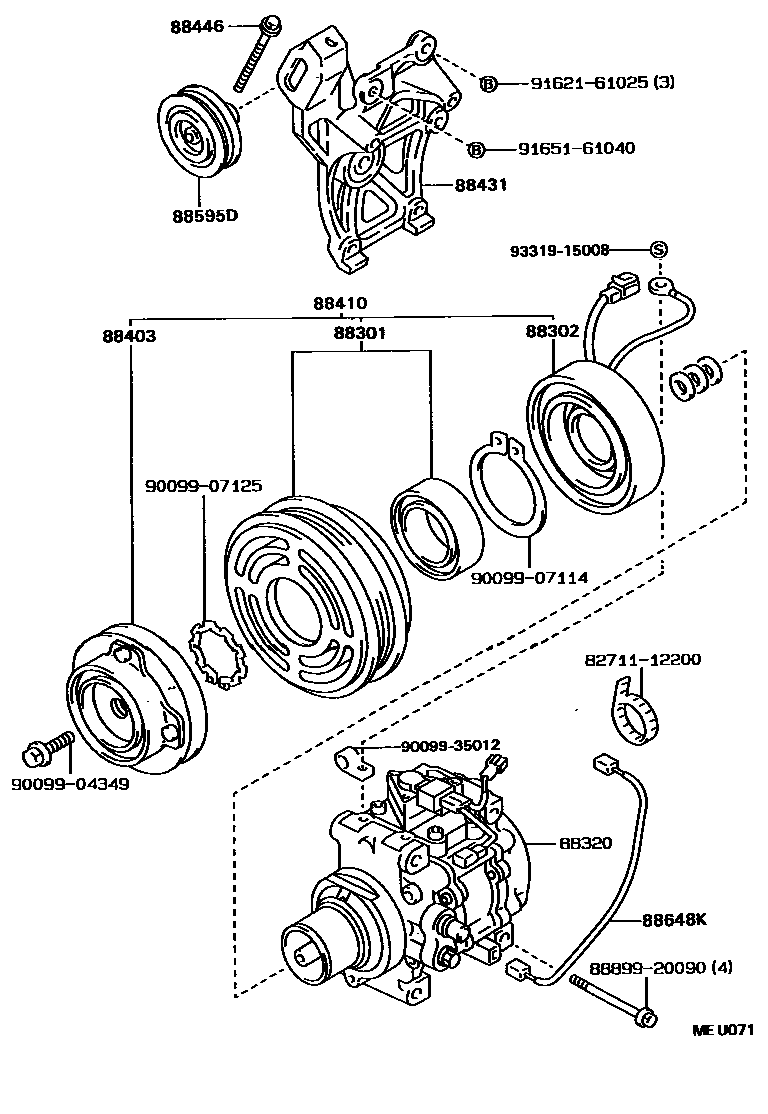

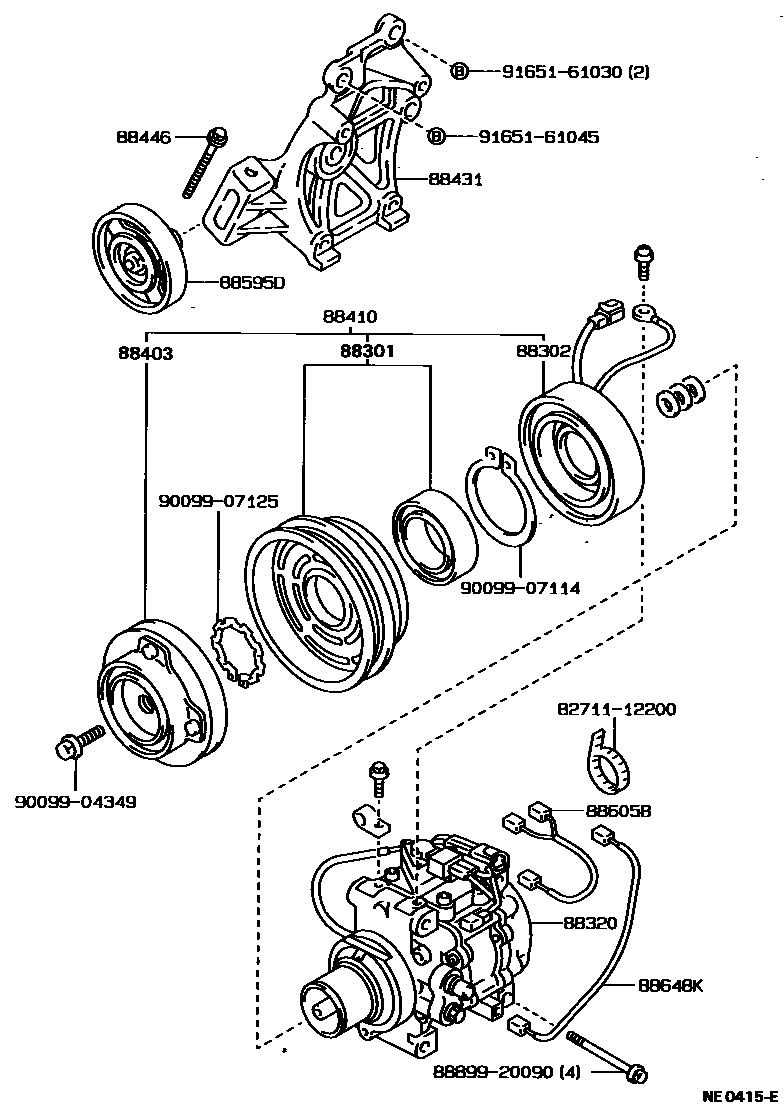

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12170 · 88412-12180 · 88412-16050 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-16021 · 88411-60030 |
| 88320 | Cooler Compressor Assembly | 88320-12550 · 88320-12560 · 88320-12590 · 88320-12640 · 88320-12650 · 88320-12660 · 88320-12770 · 88320-12780 · 88320-12790 · 88320-12870 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16011 |
| 88410 | Magnetic Clutch Assembly | 88410-10210 · 88410-12250 · 88410-12260 · 88410-12290 · 88410-12310 · 88410-16050 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12390 · 88431-12400 · 88431-12410 · 88431-12430 · 88431-12440 · 88431-12450 · 88431-12490 |
| 88446 | Idler gear bolt | 88446-12030 · 88446-35010 |
| 88595D | Idler gear assembly | 88440-17010 · 88440-32030 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-1A710 · 88605-1A760 |
| 88648K | Sensor wiring harness sub-assembly | 88648-12380 |
