Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

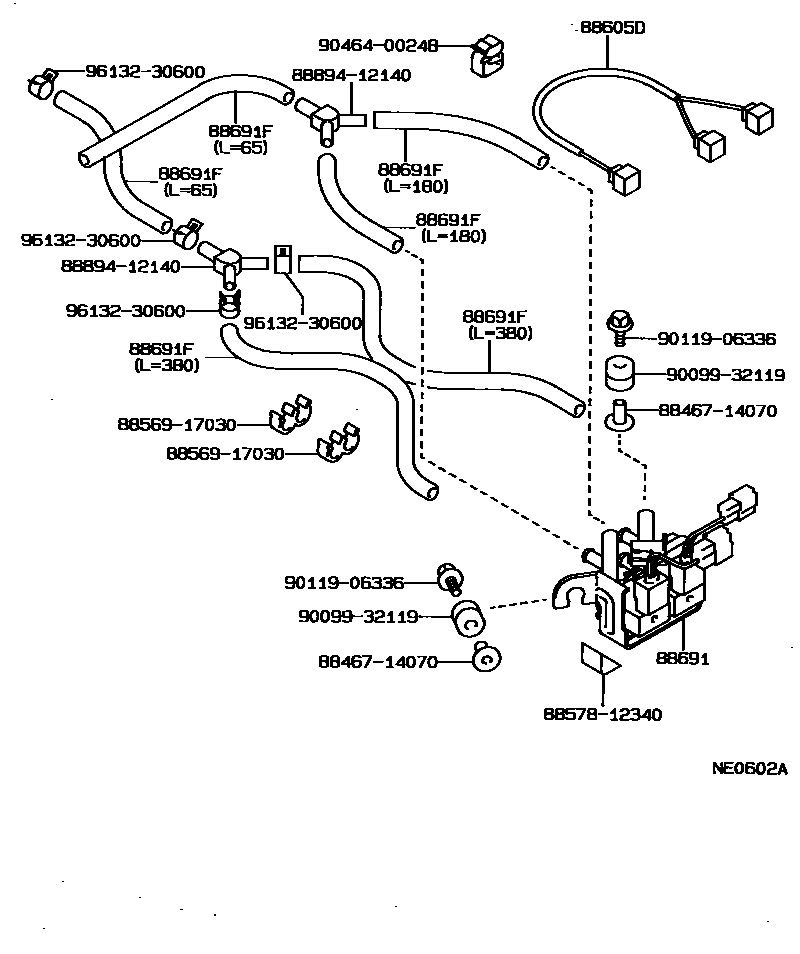

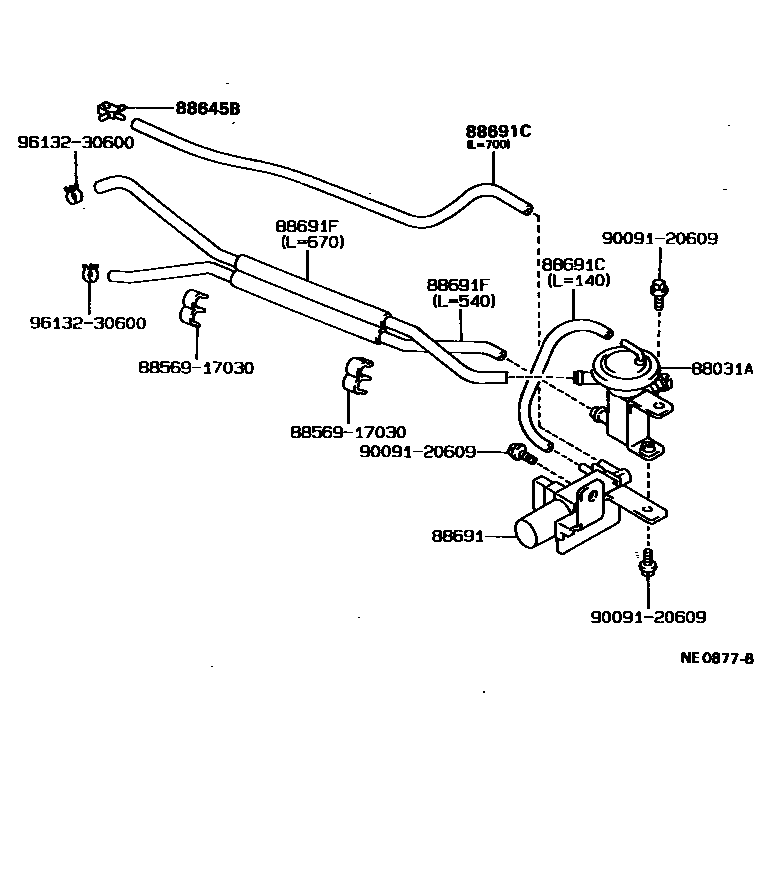

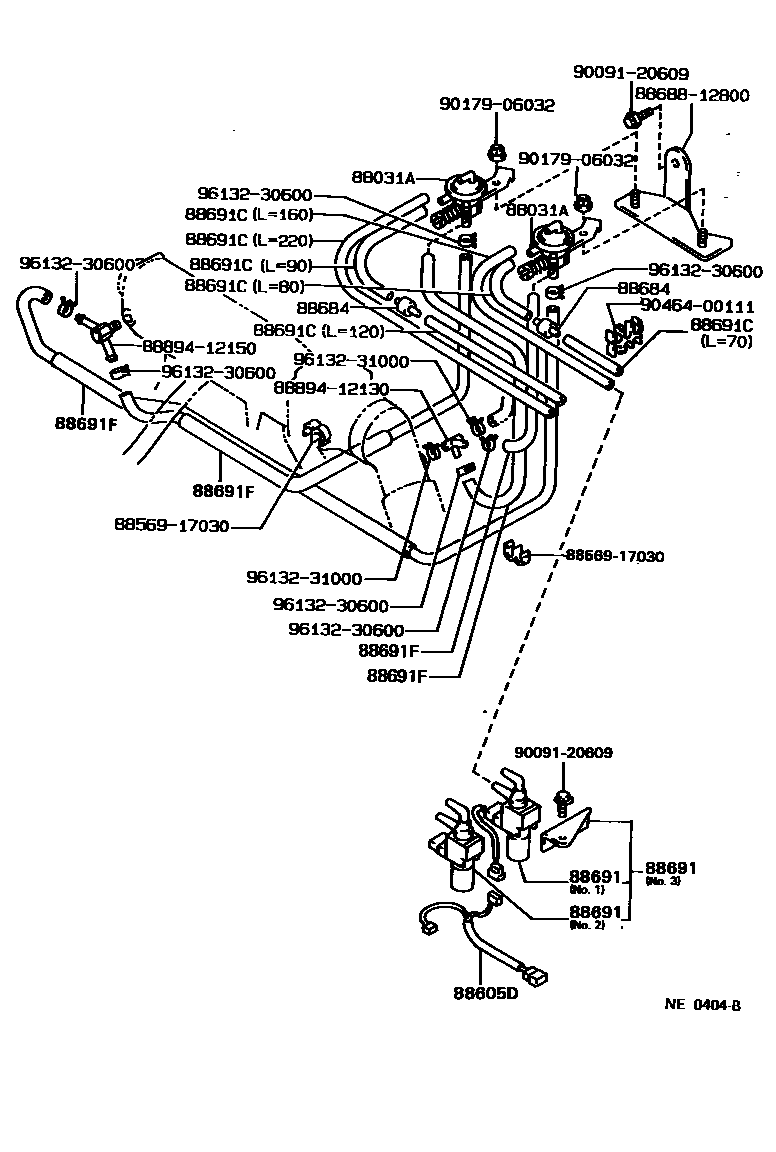

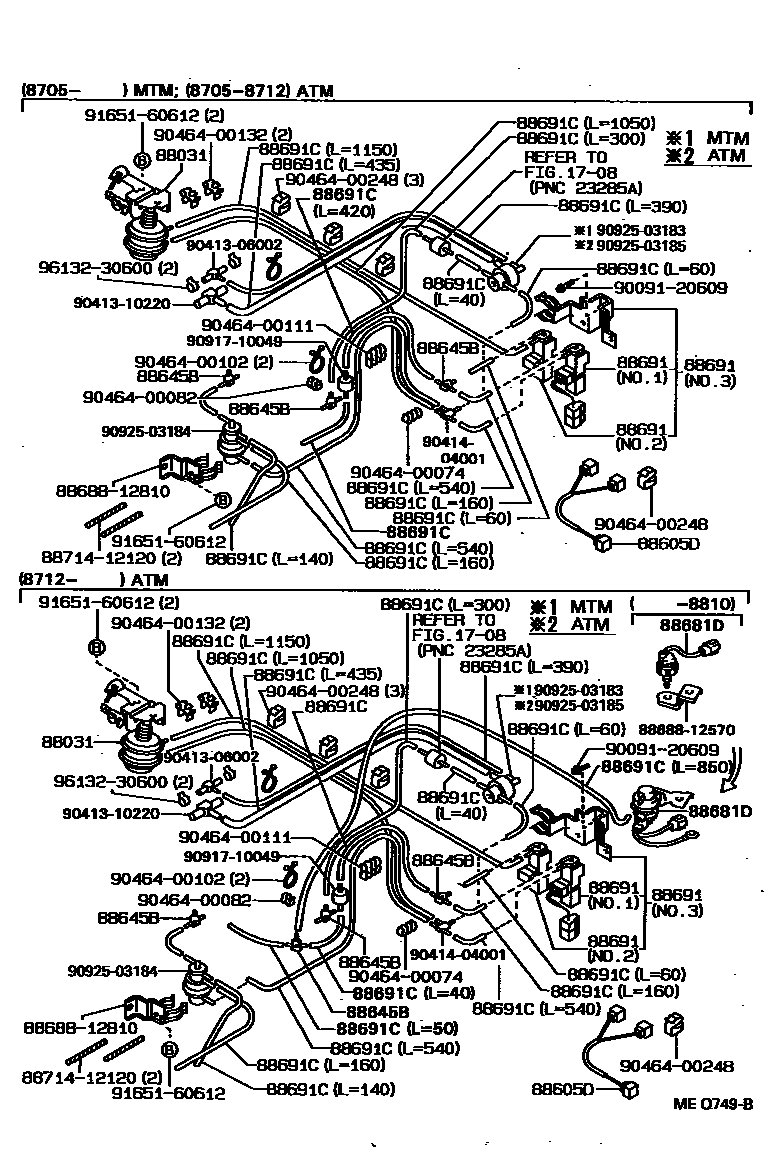

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12180 · 88031-12181 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-12010 · 88606-12020 · 88606-12060 |
| 88605D | Air conditioning wiring harness | 88605-1A700 · 88605-1A770 · 88605-1A860 · 88605-1E130 · 88605-1E140 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04005 |
| 88681D | Vacuum switch | 88610-12080 · 88681-12020 |
| 88684 | vacuum valve | 88684-22010 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12450 · 88690-12470 · 88690-12480 · 88690-12580 · 88690-12730 · 88691-10010 · 88691-12140 · 88691-12150 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90445-08198 · 90445-08210 · 90445-08246 · 90445-11031 · 90999-92002 · 90999-92003 · 90999-92004 · 90999-92006 · 95411-10236 · 95411-10239 · 95411-10280 · 95411-19930 |
| 88691F | No. 4 vacuum hose (for idle lift device) | 88689-12110 · 88689-12120 · 88689-12130 · 88689-12140 · 88689-12150 · 88689-12160 · 88689-12190 · 88689-12250 · 88689-12320 · 88689-12330 · 88689-20120 |
