Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

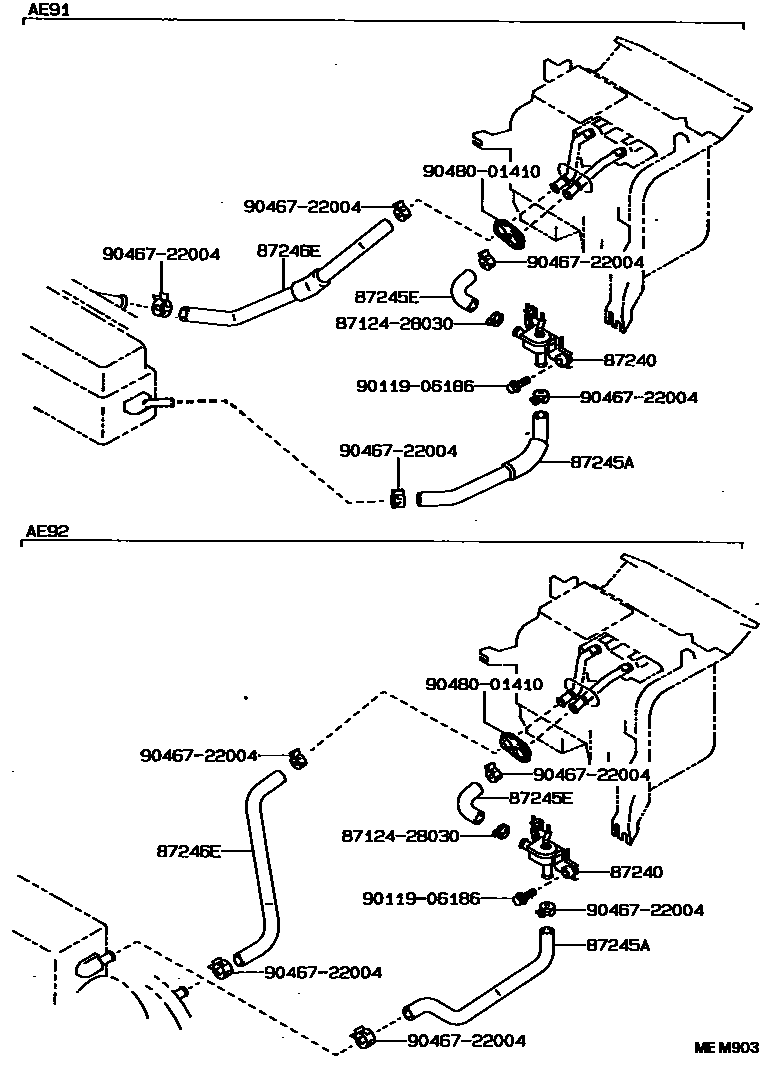

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-12230 |
| 87245A | Heater water inlet hose A | 87245-12840 · 87245-12841 · 87245-1A180 · 87245-1A190 · 87245-1A191 |
| 87245E | Heater water inlet hose E | 87245-1A300 |
| 87246E | Heater outlet hose E | 87245-1A240 · 87245-1A241 · 87245-1A260 · 87245-1A350 |
