Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

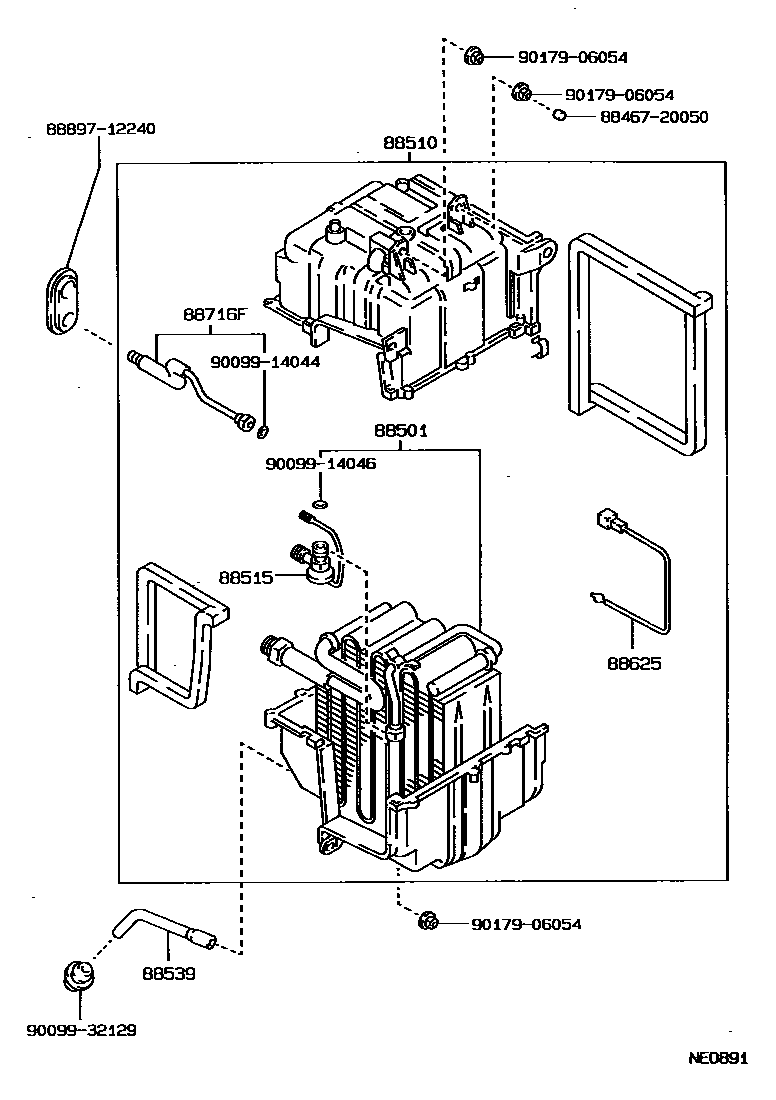

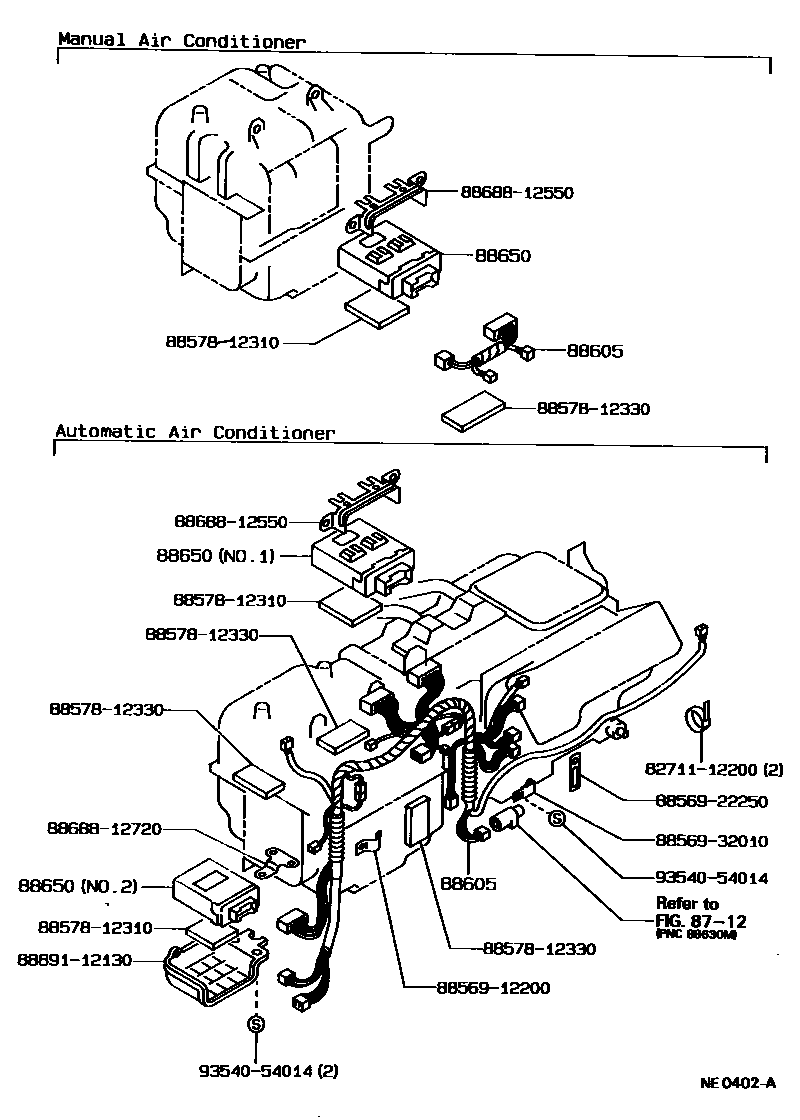

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12330 |
| 88510 | Cooler device assembly | 88510-12830 |
| 88515 | Cooler expansion valve | 88515-16040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12090 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1A420 · 88605-1A430 · 88605-1A440 · 88605-1A450 · 88605-1A470 · 88605-1A480 · 88605-1A490 · 88605-1A500 · 88605-1A520 · 88605-1A530 · 88605-1A610 · 88605-1A630 · 88605-1E090 · 88605-1E100 · 88605-1E240 · 88605-1E250 · 88605-1E260 · 88605-1E270 · 88605-1E280 · 88605-1E290 |
| 88625 | Cooler No. 1 Thermistor | 88625-32040 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12580 · 88650-12581 · 88650-12590 · 88650-12600 · 88650-12601 · 88650-12640 · 88650-12641 · 88650-12800 · 88650-1A030 · 88650-1A090 · 88650-1A160 · 88650-1A300 · 88650-1A310 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-12300 |
