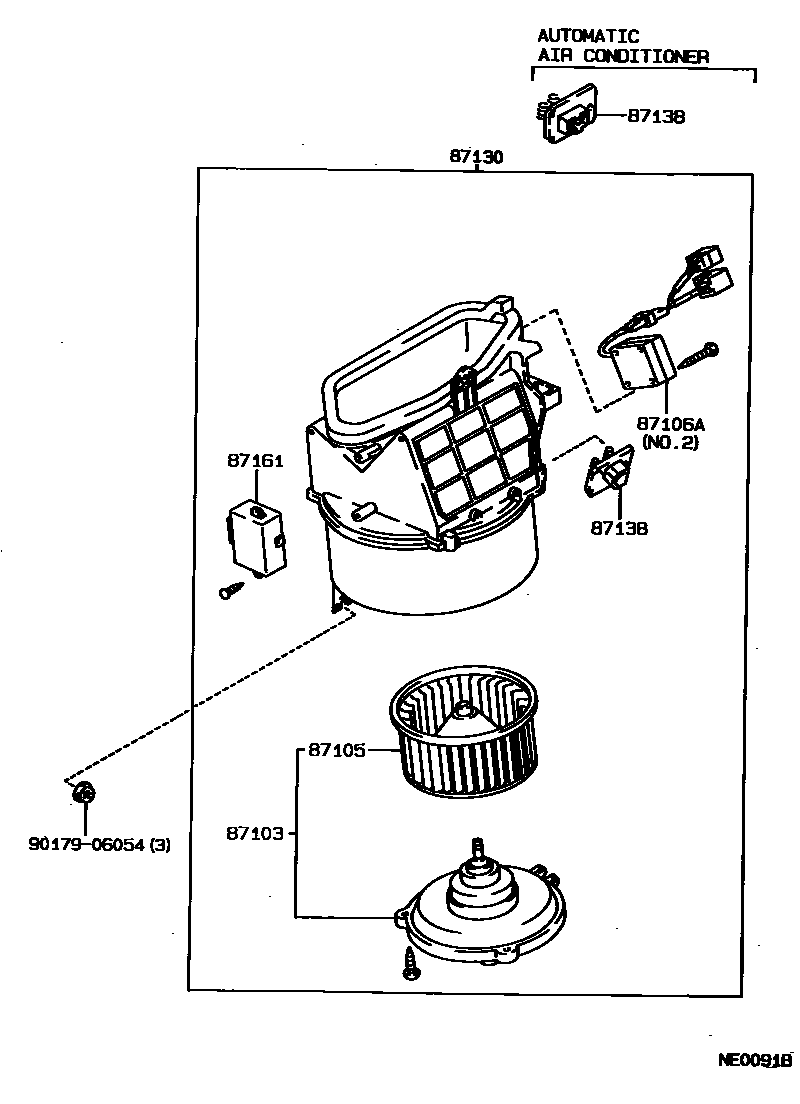

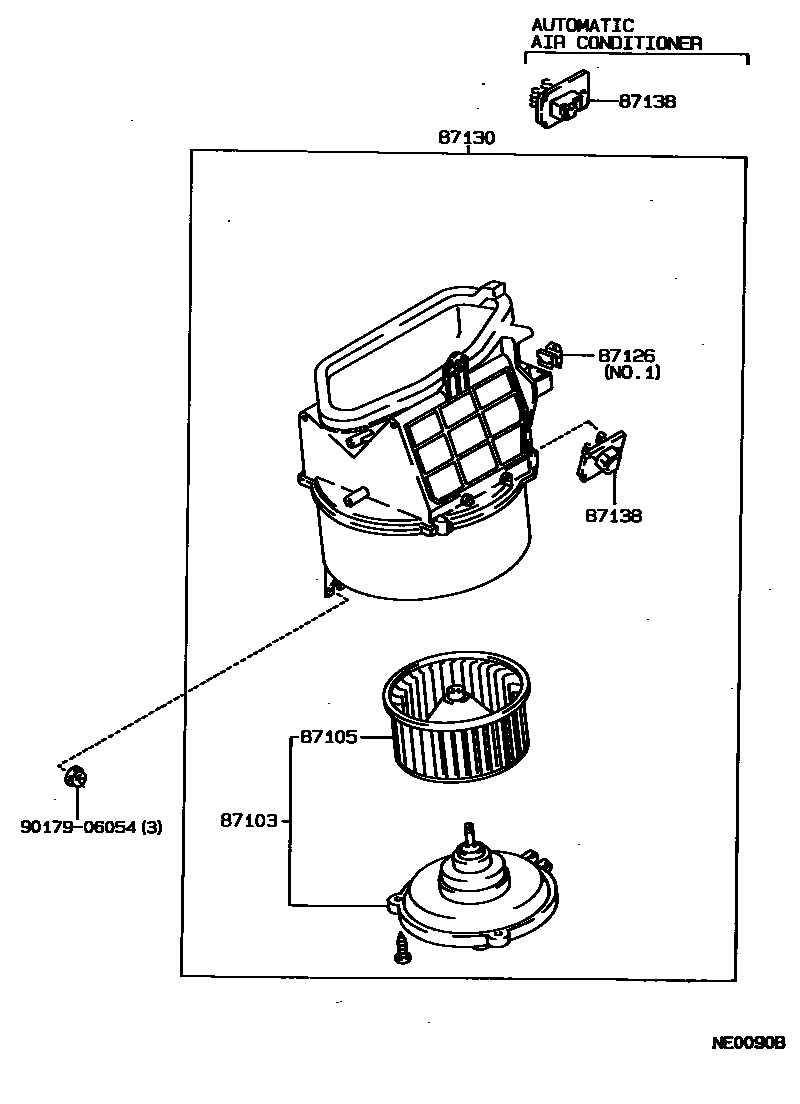

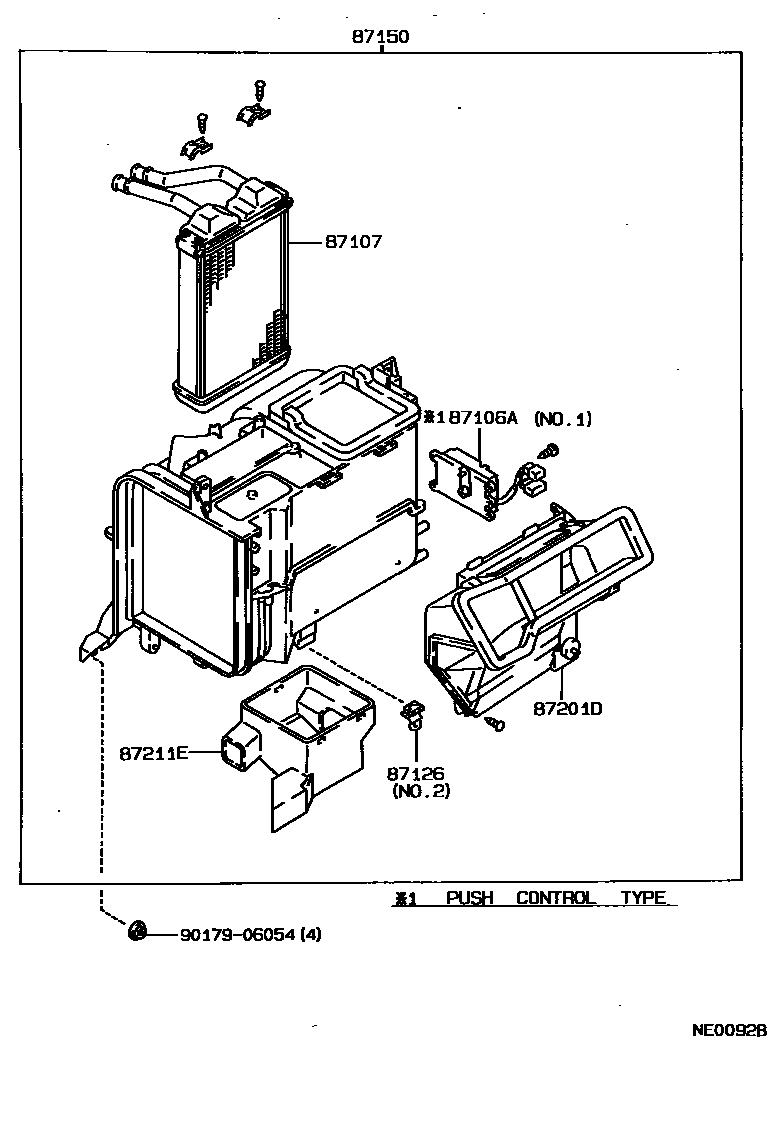

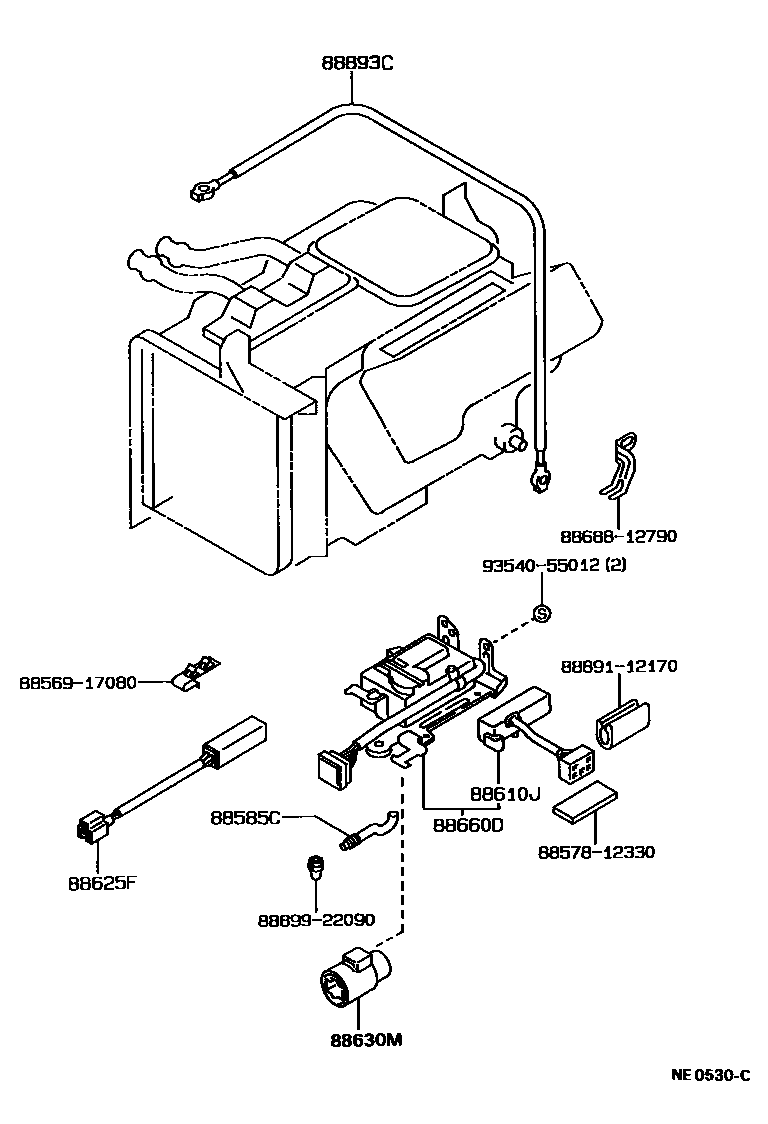

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-12010 |
| 87105 | Heater blower fan sub-assembly | 87105-32010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-12010 · 87106-12020 |
| 87107 | Heater radiator device sub-assembly | 87107-12380 · 87107-12390 |
| 87126 | heater control clip | 87126-12040 · 87126-12050 |
| 87130 | Front heater blower assembly | 87130-12250 · 87130-12260 |
| 87138 | Heater Blower Resistor | 87138-12120 · 88635-12040 |
| 87150 | Heater radiator assembly | 87150-12440 · 87150-12450 · 87150-12460 · 87150-12461 · 87150-12470 · 87150-12471 |
| 87161 | Heater servo motor amplifier | 87161-12010 |
| 87201D | Air duct sub-assembly | 87201-12160 · 87201-12161 · 87201-12240 · 87201-12280 · 87201-12281 · 87201-12290 |
| 87211E | air duct | 87211-12120 · 87211-12121 · 87211-12130 · 87211-12131 |
| 88585C | axis | 88585-12050 · 88585-12060 |
| 88610J | Control switch assembly | 88610-12070 |
| 88625F | temperature sensor | 88625-10070 |
| 88630M | Cooler relay assembly | 88630-95702 |
| 88660D | Air conditioning servo mechanism assembly | 88660-12020 · 88660-12030 |
| 88893C | control cable | 88893-12080 |
