Toyota COROLLA 暖风和空调系统 - 组件 — Figure 8711
Toyota COROLLA EPC diagram 8711, 暖风和空调系统 - 组件, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

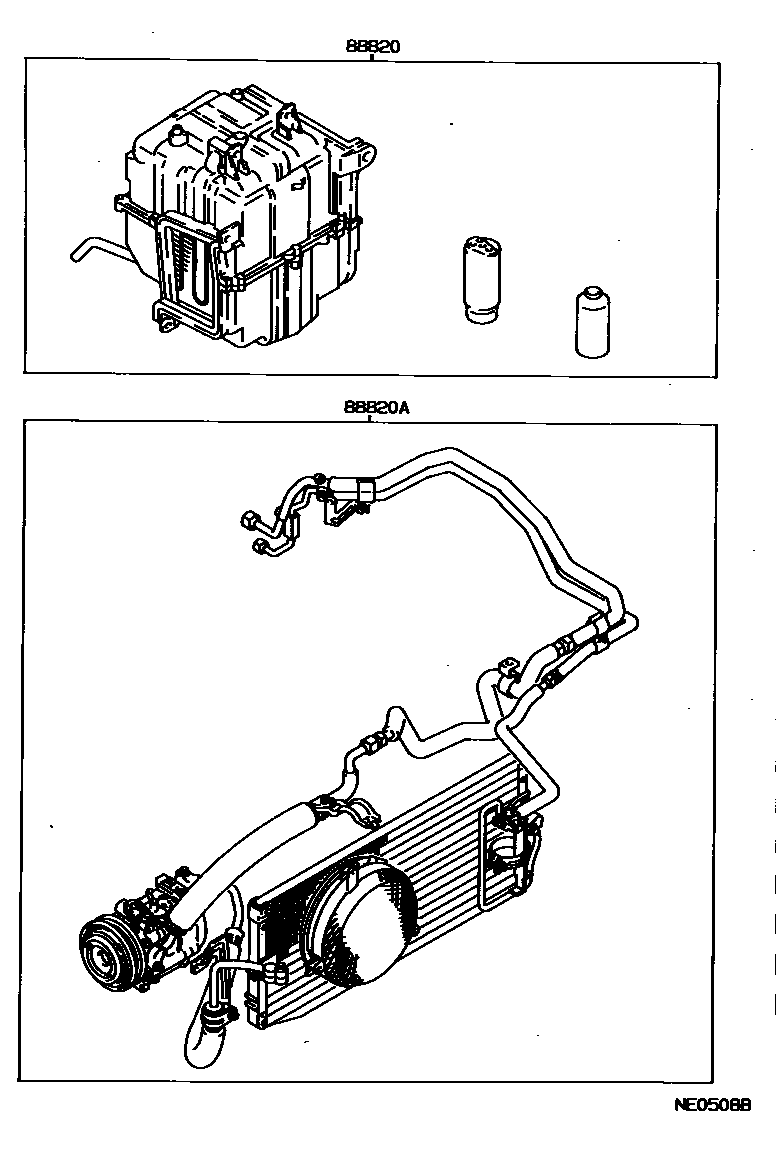

| 88820 | No. 1 air conditioner and accessories sub-assembly | 88820-12250 · 88820-12251 · 88820-12270 |
| 88820A | No. 2 air conditioner and accessories sub-assembly | 88830-12670 · 88830-12671 · 88830-12672 · 88830-12690 · 88830-12691 · 88830-12692 · 88830-12700 · 88830-12701 · 88830-12702 · 88830-12710 · 88830-12711 · 88830-12712 · 88830-12720 · 88830-12721 · 88830-12722 · 88830-12730 · 88830-12731 · 88830-12732 · 88830-1A060 · 88830-1A061 · 88830-1A062 · 88830-1A063 · 88830-1A220 · 88830-1A221 · 88830-1A230 · 88830-1A231 · 88830-1A240 · 88830-1A241 · 88830-1A250 · 88830-1A251 · 88830-1A260 · 88830-1A261 · 88830-1A270 · 88830-1A271 · 88830-1A280 · 88830-1A281 · 88830-1A290 · 88830-1A291 · 88830-1A300 · 88830-1A301 · 88830-1A310 · 88830-1A311 · 88830-1A400 · 88830-1A401 · 88830-1A410 · 88830-1A411 · 88830-1A420 · 88830-1A421 · 88830-1A430 · 88830-1A431 · 88830-1A560 · 88830-1A570 · 88830-1A580 · 88830-1A620 · 88830-1A630 · 88830-1A640 · 88830-1A650 · 88830-1A660 · 88830-1A670 · 88830-1A680 · 88830-1A690 · 88830-1A700 · 88830-1A710 · 88830-1A720 · 88830-1A730 · 88830-1E080 · 88830-1E090 · 88830-1E100 |

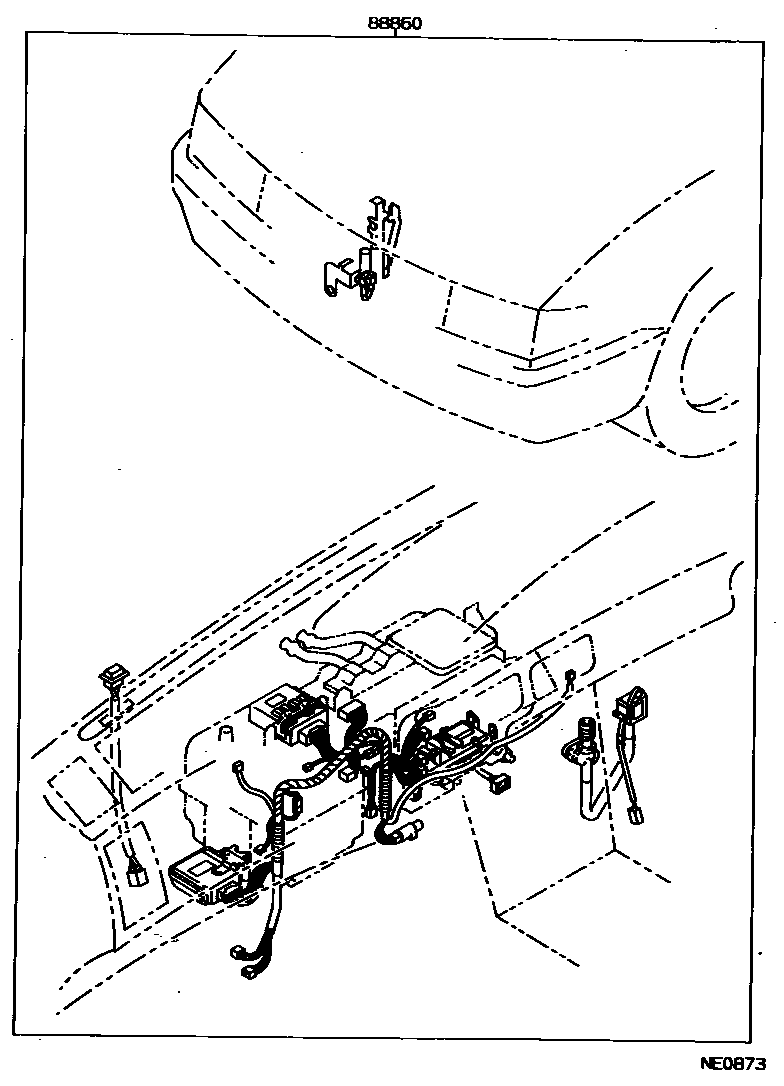

| 88860 | Automatic air conditioning accessory assembly | 88860-12180 · 88860-12200 · 88860-12210 · 88860-12220 · 88860-12230 · 88860-12240 · 88860-12280 · 88860-12300 · 88860-12310 · 88860-12320 · 88860-12330 · 88860-12340 · 88860-12470 |
