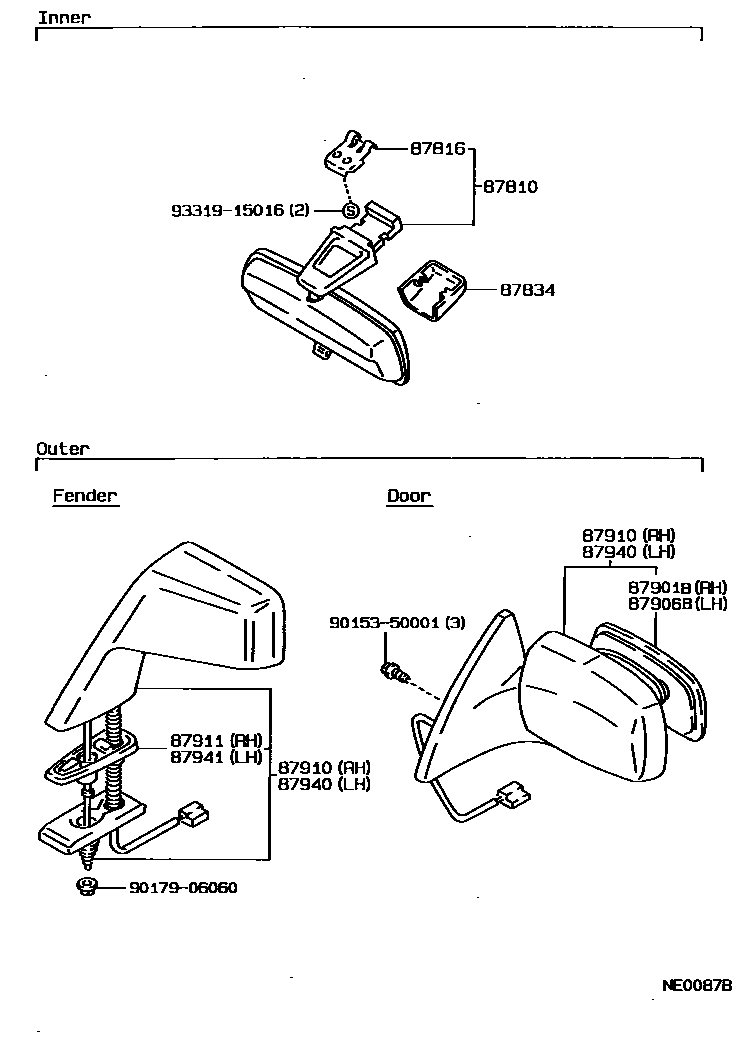

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A350 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1A430 |
| 87910 | Right exterior rearview mirror assembly | 87910-1A320 · 87910-1A330 · 87910-1A340 · 87910-1A470 |
| 87911 | Right exterior mirror pad | 87911-12240 · 87911-12250 |
| 87940 | Left exterior rearview mirror assembly | 87940-1A400 · 87940-1A410 · 87940-1A420 · 87940-1A650 |
| 87941 | Left exterior mirror pad | 87941-12200 · 87941-12210 |
