Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

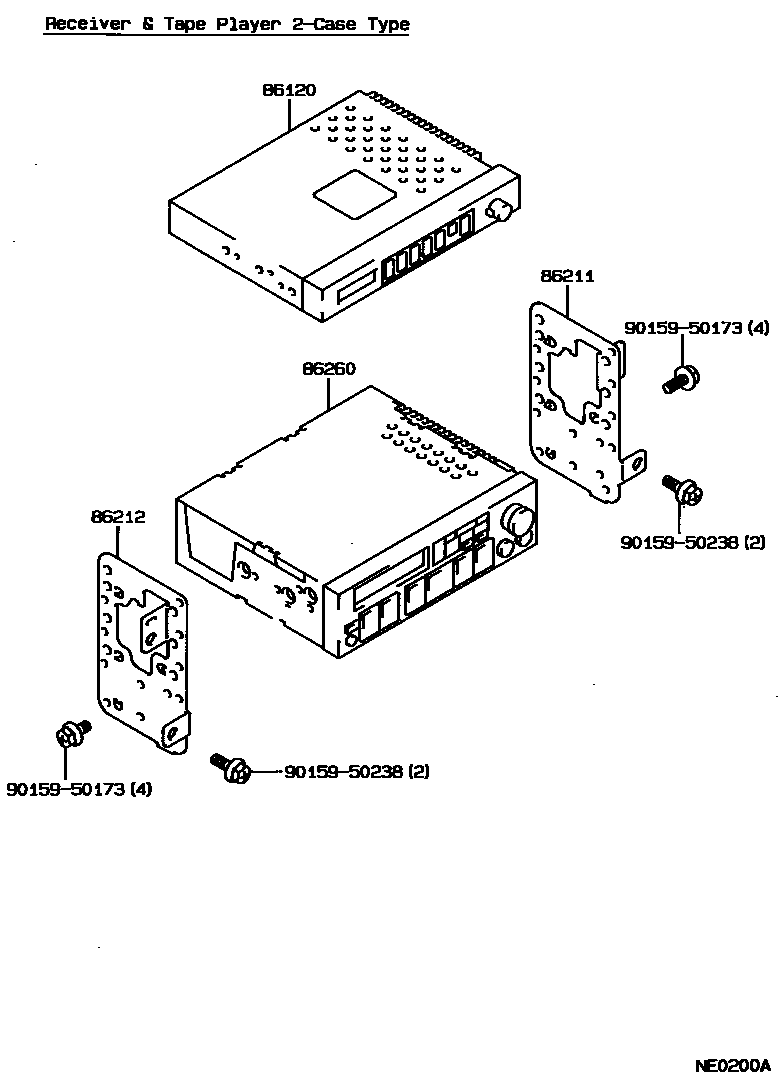

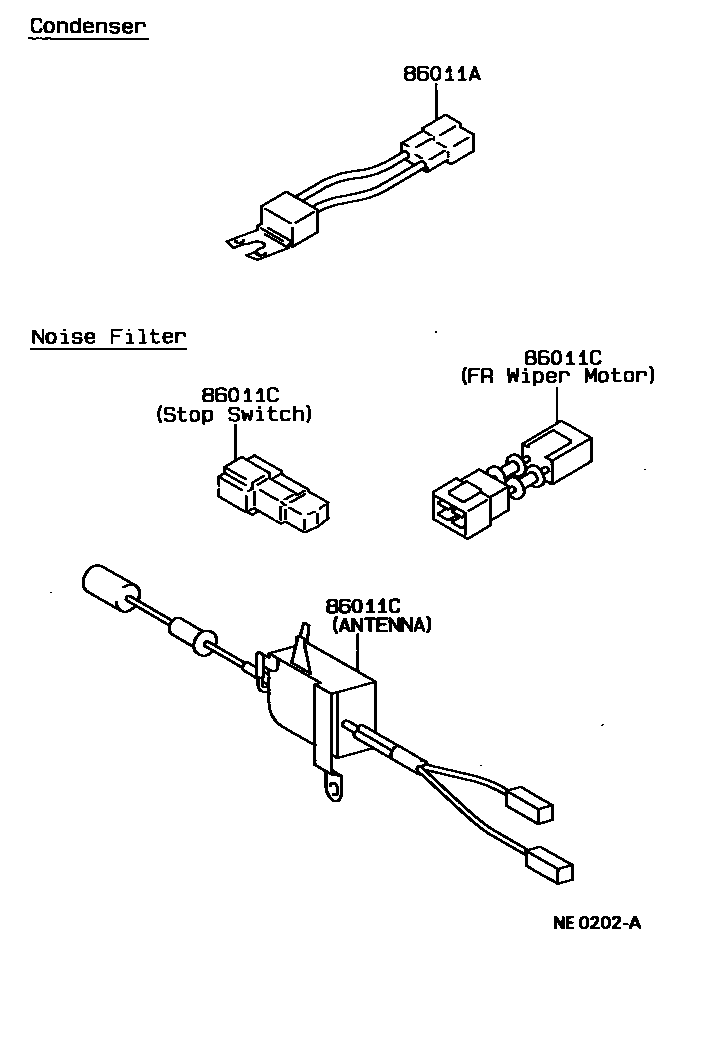

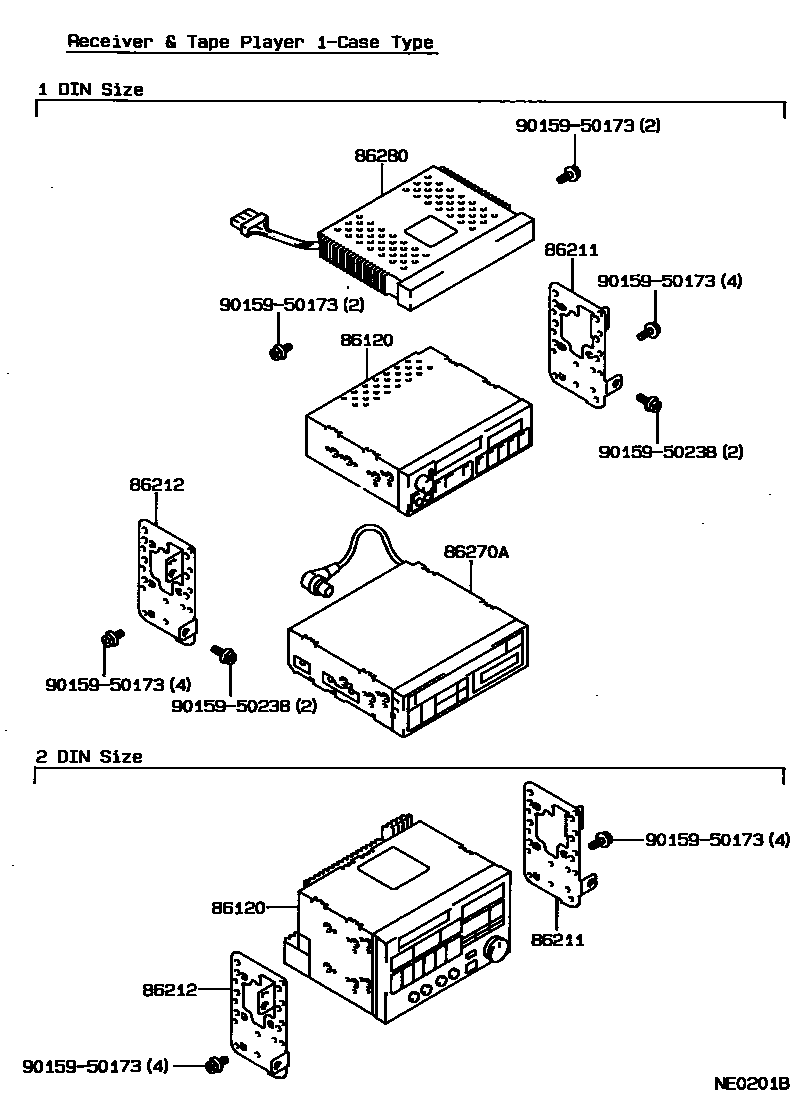

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04055 |
| 86011C | Noise filter | 90980-05049 · 90980-05073 · 90980-05157 |
| 86120 | Radio assembly | 86120-12410 · 86120-12420 · 86120-12421 · 86120-12540 · 86120-32180 |
| 86211 | No. 1 radio bracket | 86211-12240 |
| 86212 | No. 2 radio bracket | 86212-12220 |
| 86260 | Tape player assembly | 86260-19105 · 86260-19115 · 86260-19125 · 86260-19135 · 86260-19145 · 86260-19155 · 86260-19165 · 86260-19175 |
| 86270A | CD player assembly | 86270-12020 · 86270-12021 |
| 86280 | Stereo parts amplifier assembly | 86280-12060 |
