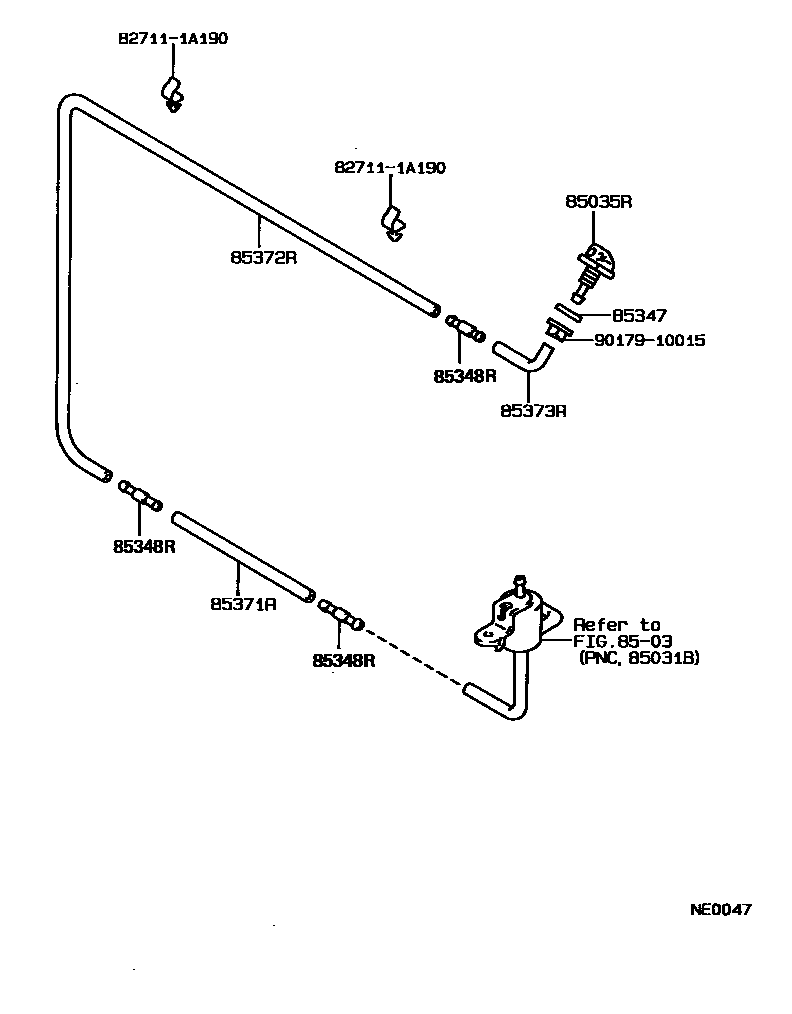

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85035-12370 |
| 85347 | Rear washer seal | 85347-12010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85371R | Rear washer hose (from motor to connector) | 90099-33080 · 90446-07001 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-59009 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33299 · 90099-33354 |
