Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

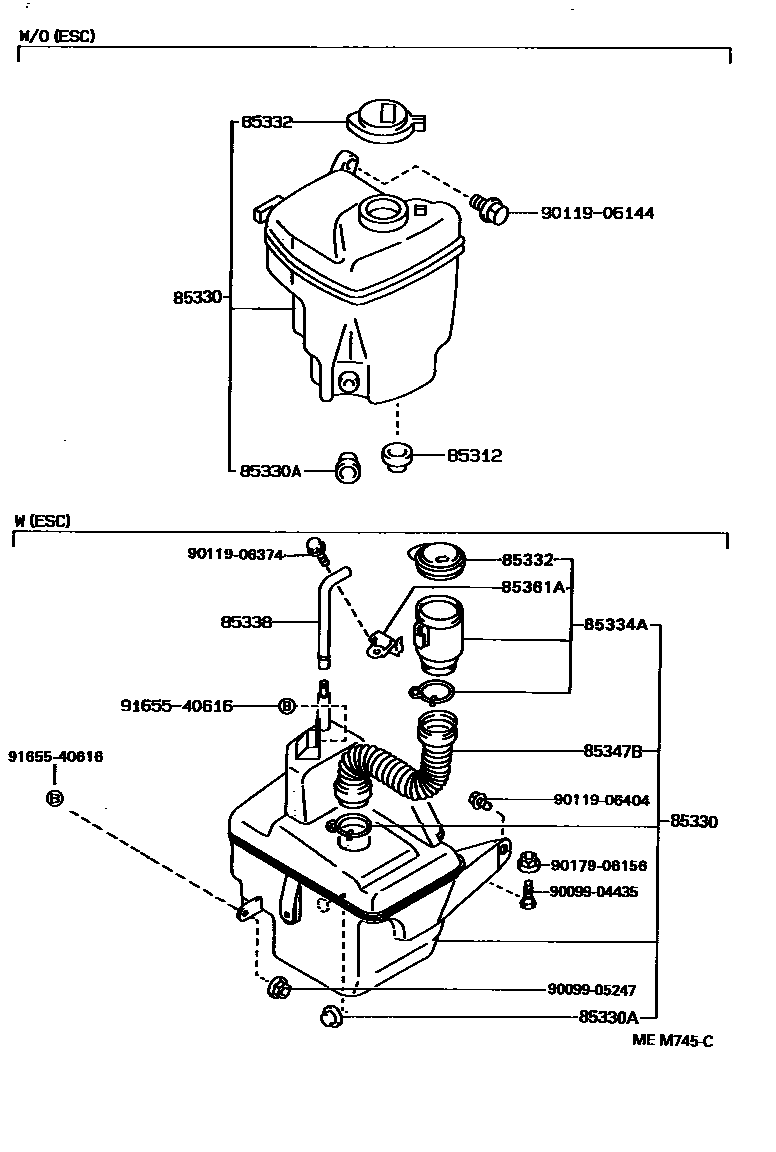

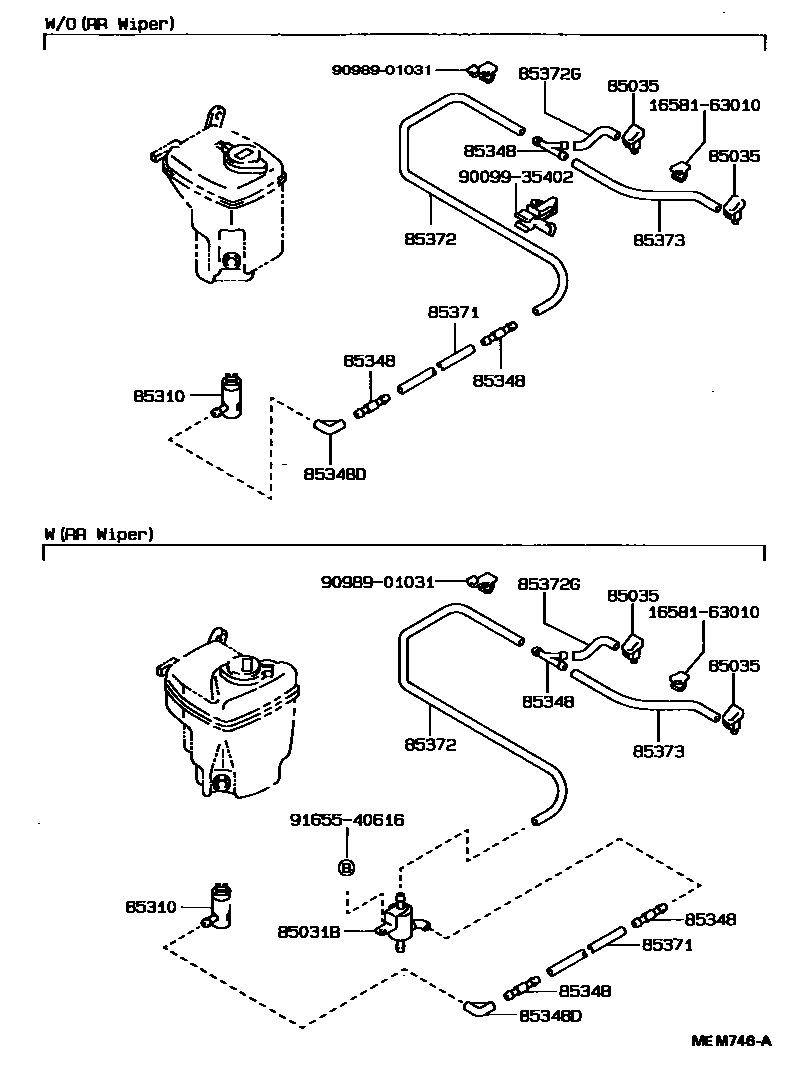

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-12121 |
| 85035 | Cleaner nozzle sub-assembly | 85035-12350 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85312 | Windshield washer tank seal | 85312-12650 |
| 85330 | Windshield washer fluid tank assembly | 85331-12650 · 85331-12660 · 85331-12740 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-12320 · 85332-12650 · 85332-12660 · 85332-12740 |
| 85334A | Water tank cover sub-assembly | 85334-12740 |
| 85338 | Breather hose | 85338-20270 |
| 85347B | Reservoir hose | 85347-12740 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85361A | Windshield washer bracket No. 1 | 85361-12770 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33410 · 90446-07001 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33080 · 90099-33196 |
| 85372G | Rubber tube | 90099-33080 · 90099-33087 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33080 |
