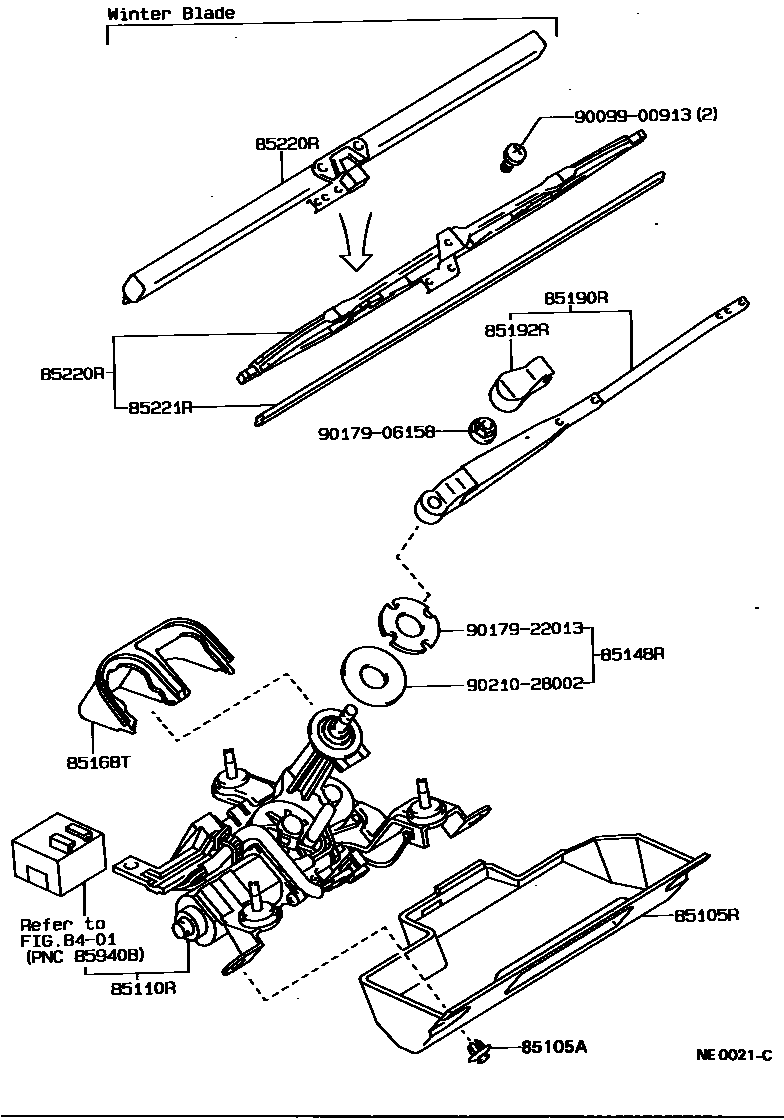

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85110-12740 |
| 85148R | Rear wiper link pivot nut with gasket seal | 85148-12020 |
| 85190R | Rear wiper arm assembly | 85190-1A030 · 85190-1A031 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85220R | Rear wiper blade assembly | 85220-16440 · 85220-16441 · 85220-16580 · 85291-16010 |
| 85221R | Rear wiper blade | 85221-16080 |
