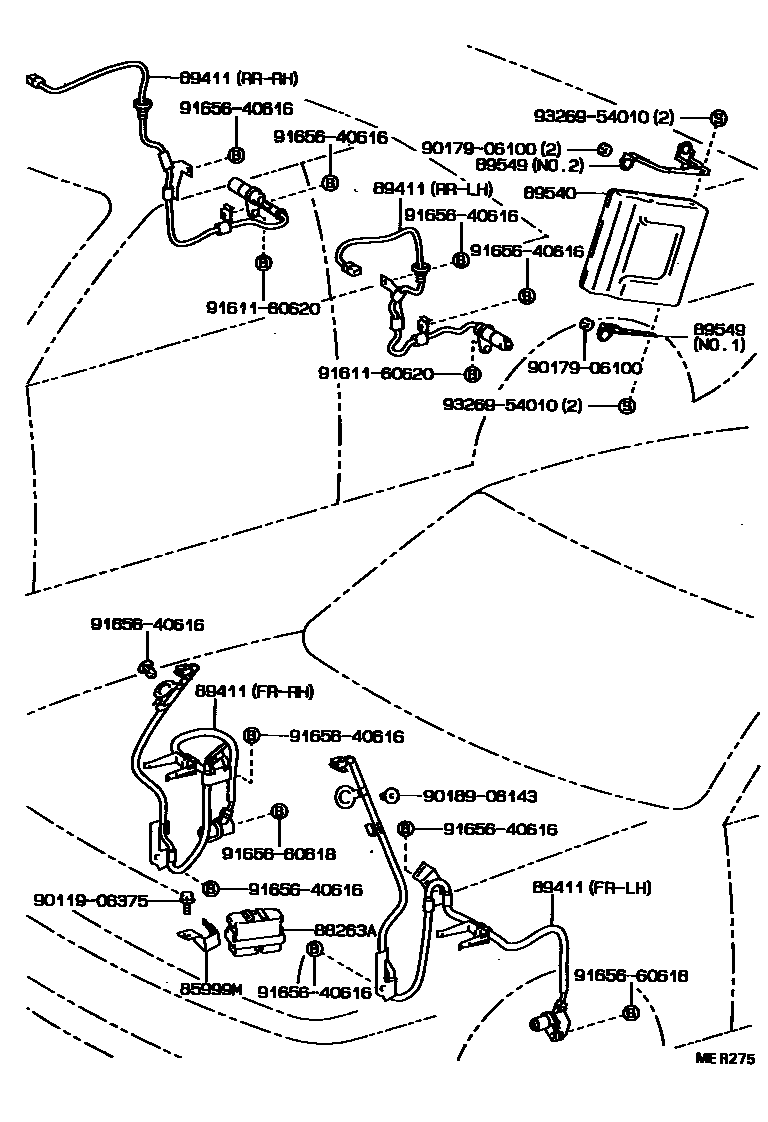

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-12130 |
| 88263A | Anti-skid control relay | 88263-12070 |
| 89411 | Speed sensor | 89542-12010 · 89543-12010 · 89545-12010 · 89546-12010 |
| 89540 | Anti-skid control ECU assembly | 89541-12010 |
| 89549 | Anti-slip control ECU bracket | 88267-12070 · 88268-12070 |
