Toyota COROLLA 超速档和电子控制变速器 — Figure 8410

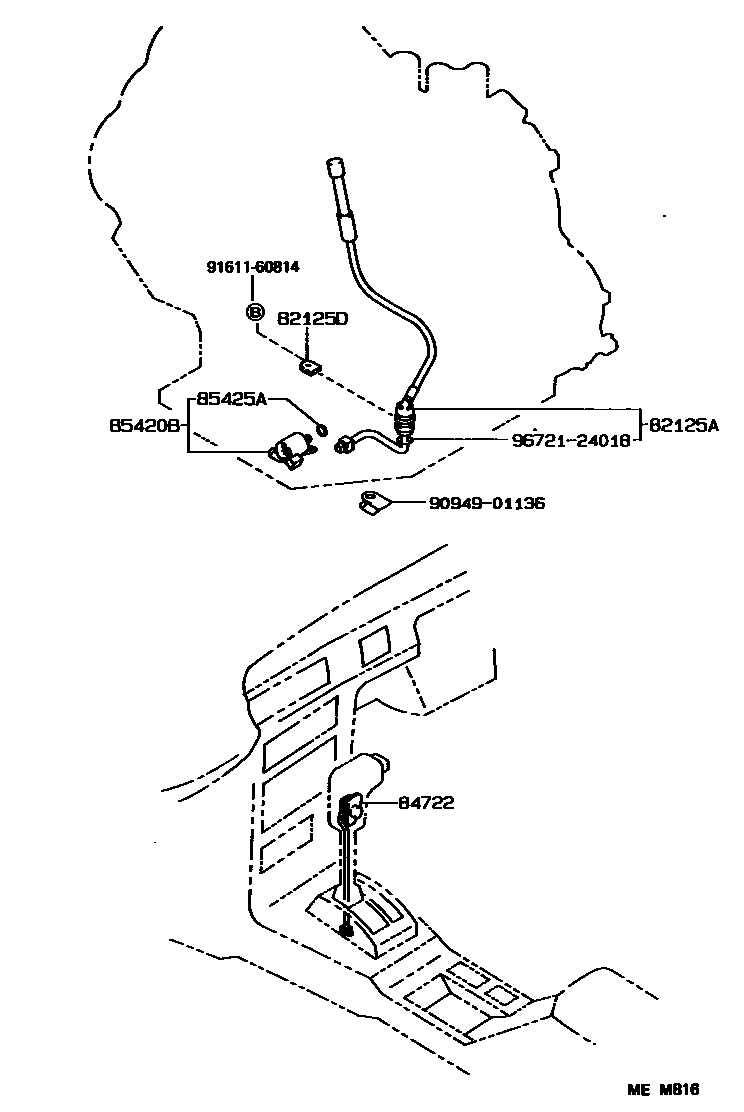

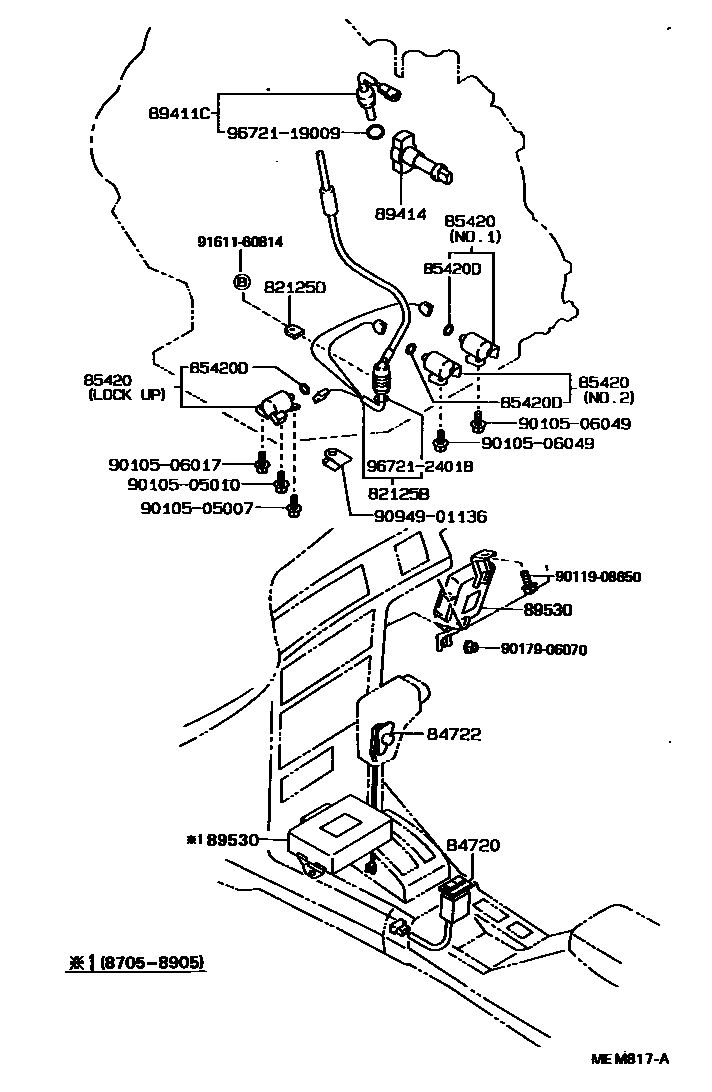

Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-20100 |
| 82125B | Transmission wiring harness | 82125-17020 |
| 82125D | Transmission harness locking plate | 33485-30020 |
| 84720 | Mode selection switch assembly | 84720-12030 · 84720-12050 |
| 85420 | Transmission solenoid valve assembly | 85420-12062 · 85420-22080 |
| 85420B | Transmission solenoid valve assembly | 85420-10010 · 85420-10011 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-06004 |
| 89411C | Speed sensor | 89411-17020 |
| 89414 | sensor rotor | 89414-12010 |
| 89530 | Transmission control ECU assembly | 89530-12140 · 89530-12160 · 89530-12161 |
