Toyota COROLLA 巡航控制(自动行驶) — Figure 8408

Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 10 PNC and OE references.

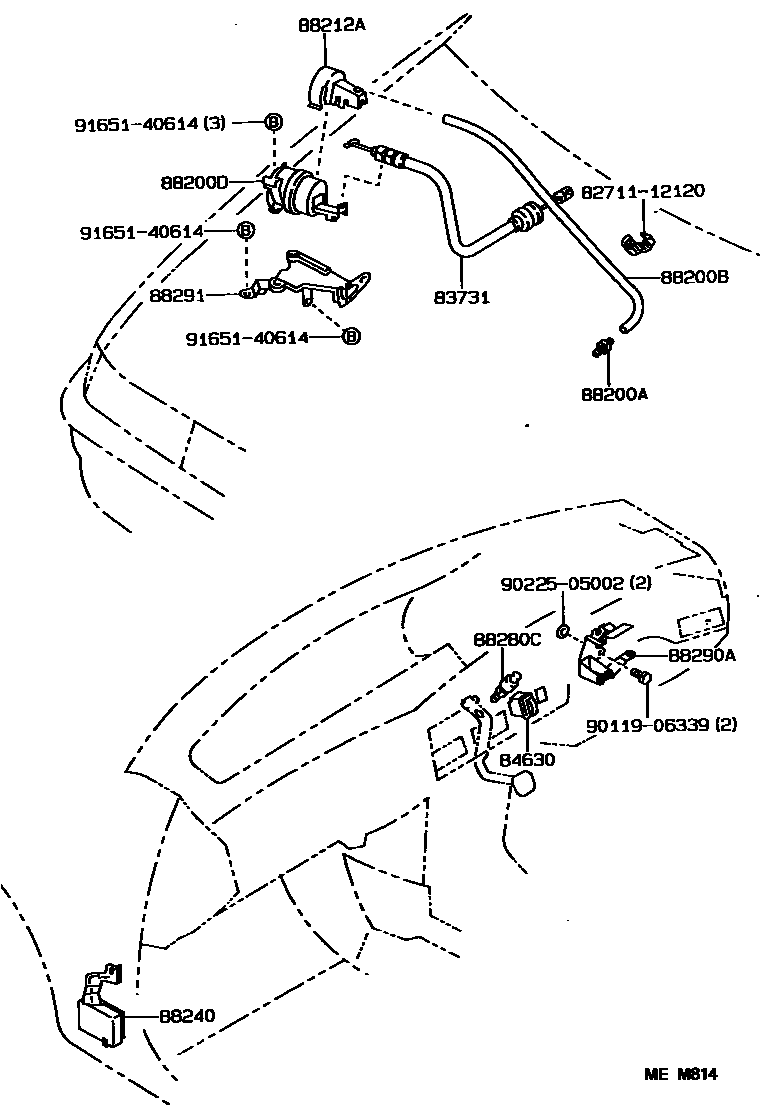

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MEM814
巡航控制(自动行驶) — MEM814 (198705 – 999999)

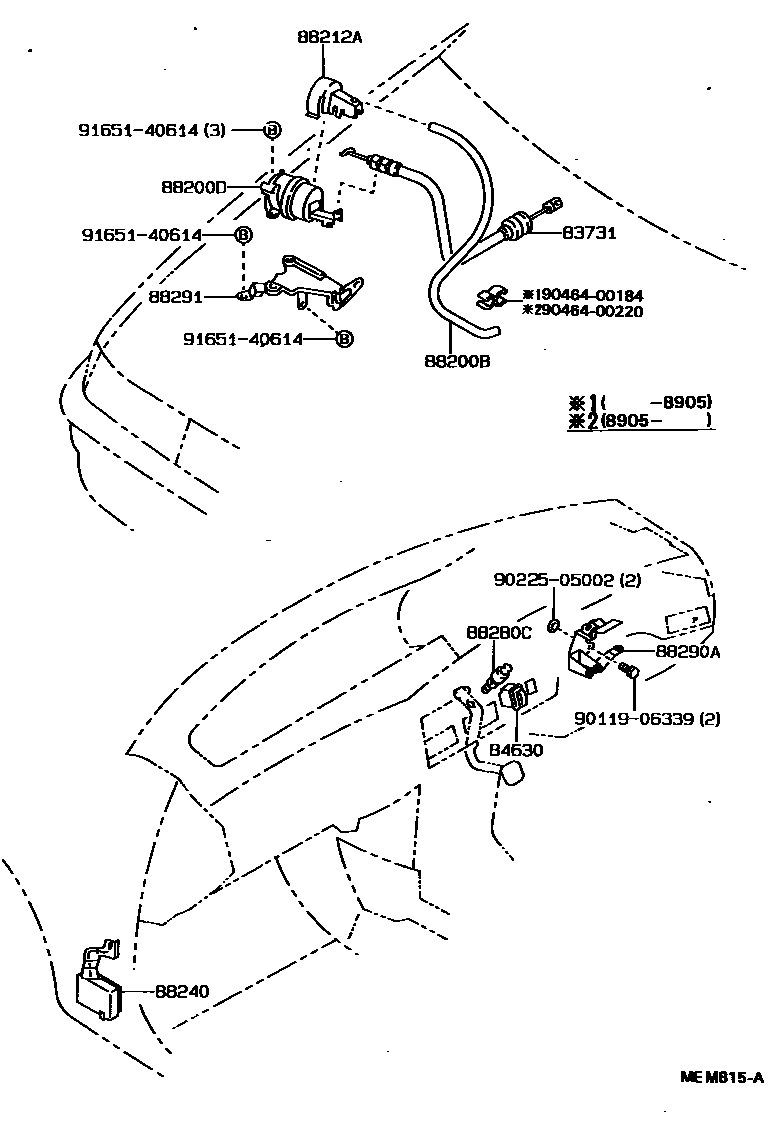

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MEM815A
巡航控制(自动行驶) — MEM815A (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
83731cruise control cable83731-12010
84630Cruise control main switch assembly84630-12060
88200Acruise control vacuum fitting or tube90404-51010
88200Bcruise control vacuum hose90447-04102 · 95411-19960
88200DCruise control actuator assembly88200-12090 · 88200-12091
88212Acruise control actuator cover88212-12070
88240Cruise control ECU assembly88240-12130
88280CClutch switch assembly88280-12030 · 88280-20010
88290ACruise control right angle lever assembly88290-12010
88291No. 1 cruise control (automatic driving) bracket88291-12080
