Toyota COROLLA 电子燃油喷射系统 — Figure 8404

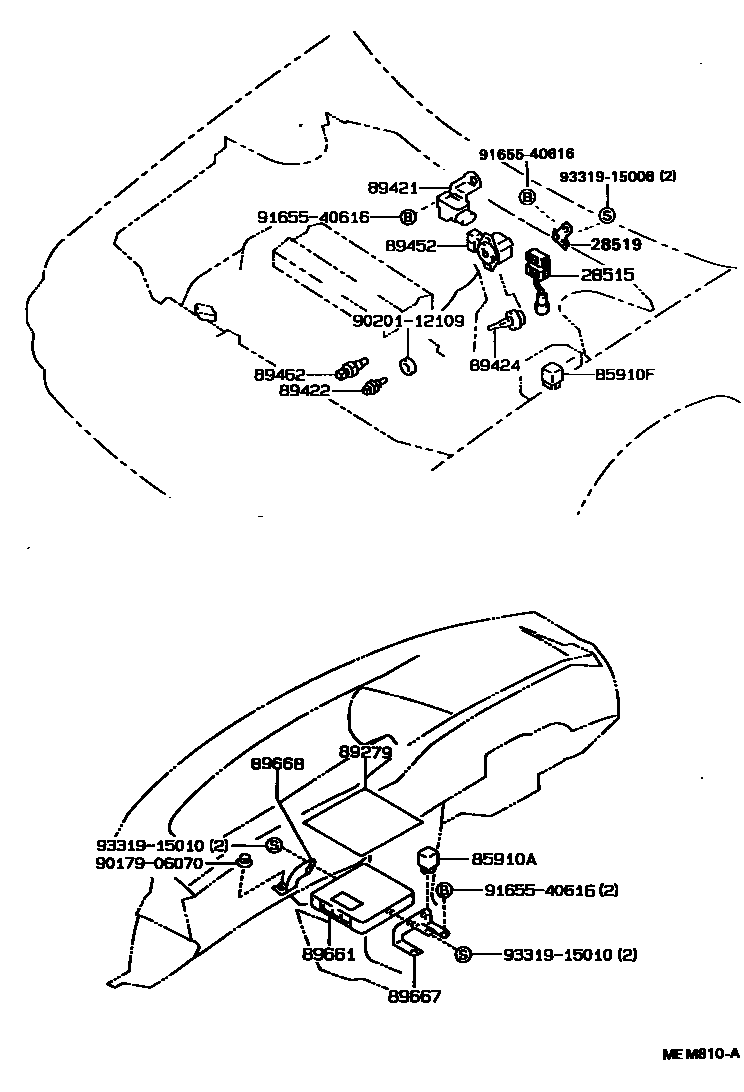

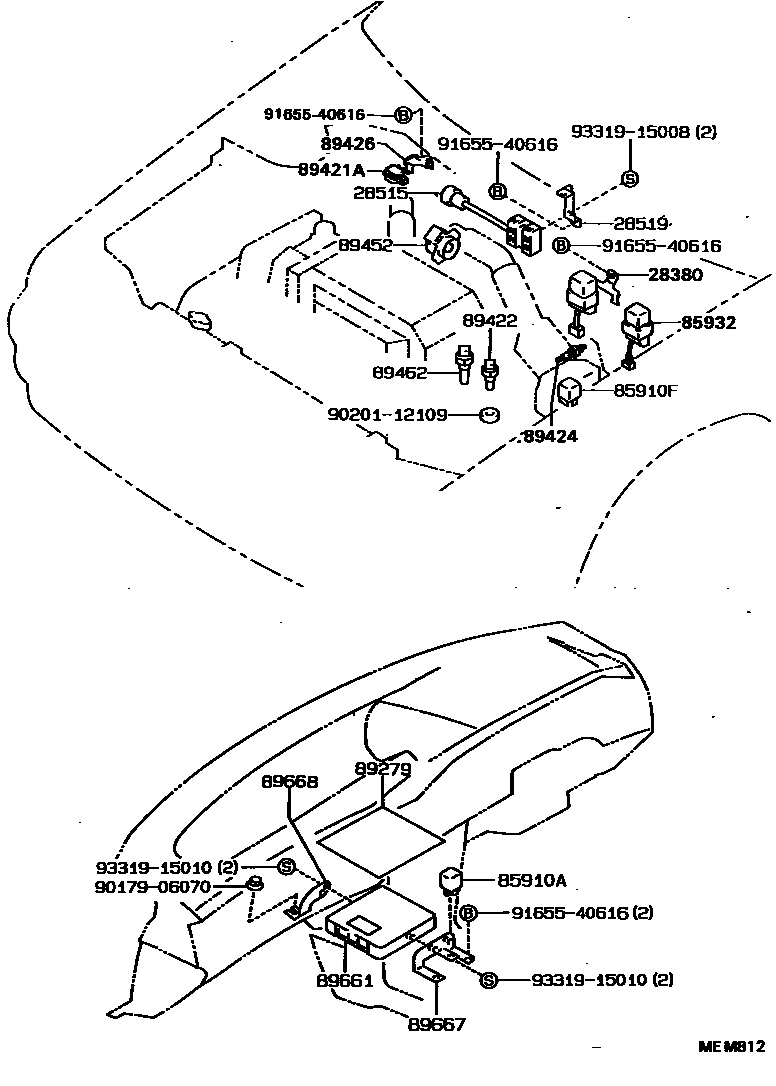

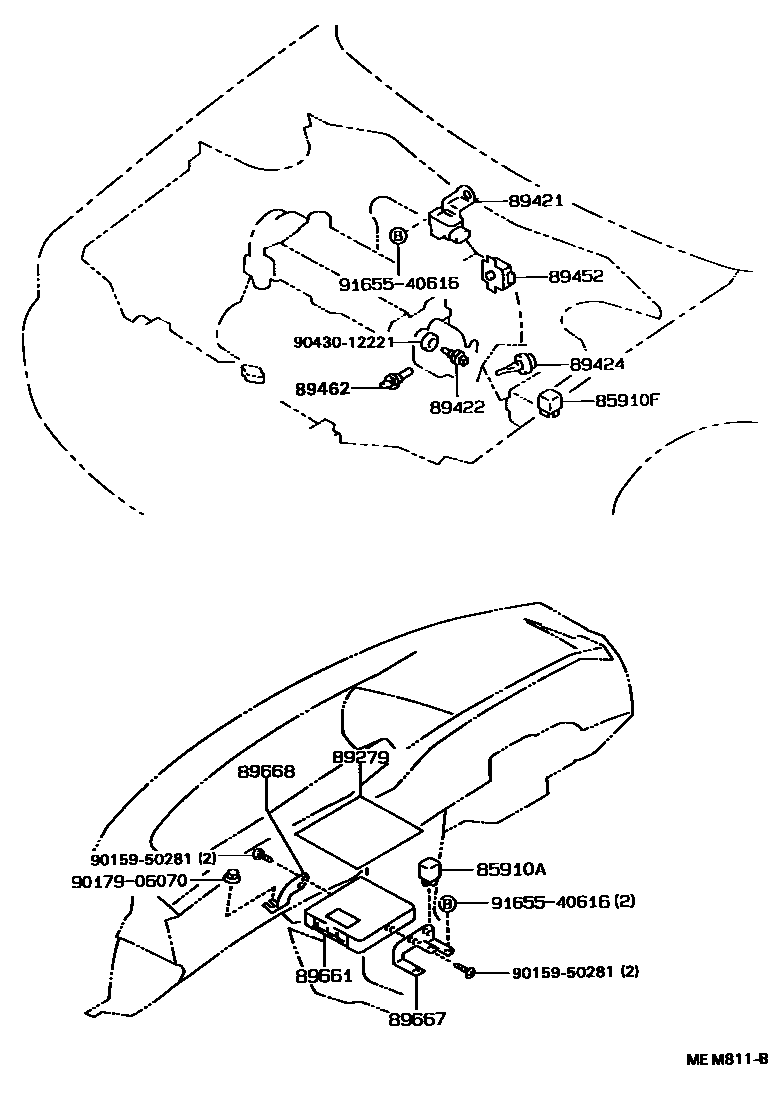

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28380 | Fuel pump relay assembly | 28381-16010 |
| 28515 | Solenoid valve resistor | 28515-16010 · 28515-16020 |
| 28519 | Solenoid valve resistor bracket | 28519-16030 · 28519-16040 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-12010 · 85910-30050 |
| 85910F | ECU relay (for EFI) | 90987-02006 |
| 85932 | supercharger relay | 85932-12010 · 85932-12020 |
| 89279 | Engine control ECU cover | 89279-12020 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-12010 · 89420-12040 |
| 89421A | turbo pressure sensor | 89421-12070 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-12010 · 89422-20010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 · 89424-28010 |
| 89426 | Vacuum sensor holder | 89426-12070 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12010 · 89452-12040 · 89452-12050 · 89452-14020 · 89452-20050 |
| 89462 | Start injector timing switch | 89462-12010 · 89462-20030 |
| 89661 | Engine control ECU | 89661-12170 · 89661-12171 · 89661-12180 · 89661-12181 · 89661-12182 · 89661-12230 · 89661-12232 · 89661-12330 · 89661-12331 · 89661-12430 · 89661-12431 · 89661-12450 · 89661-12570 · 89661-12610 · 89661-12611 · 89661-12612 · 89661-12661 · 89661-12690 · 89661-20890 |
| 89667 | Engine control ECU bracket | 89667-12020 |
| 89668 | No. 2 engine control ECU bracket | 89668-12030 |
