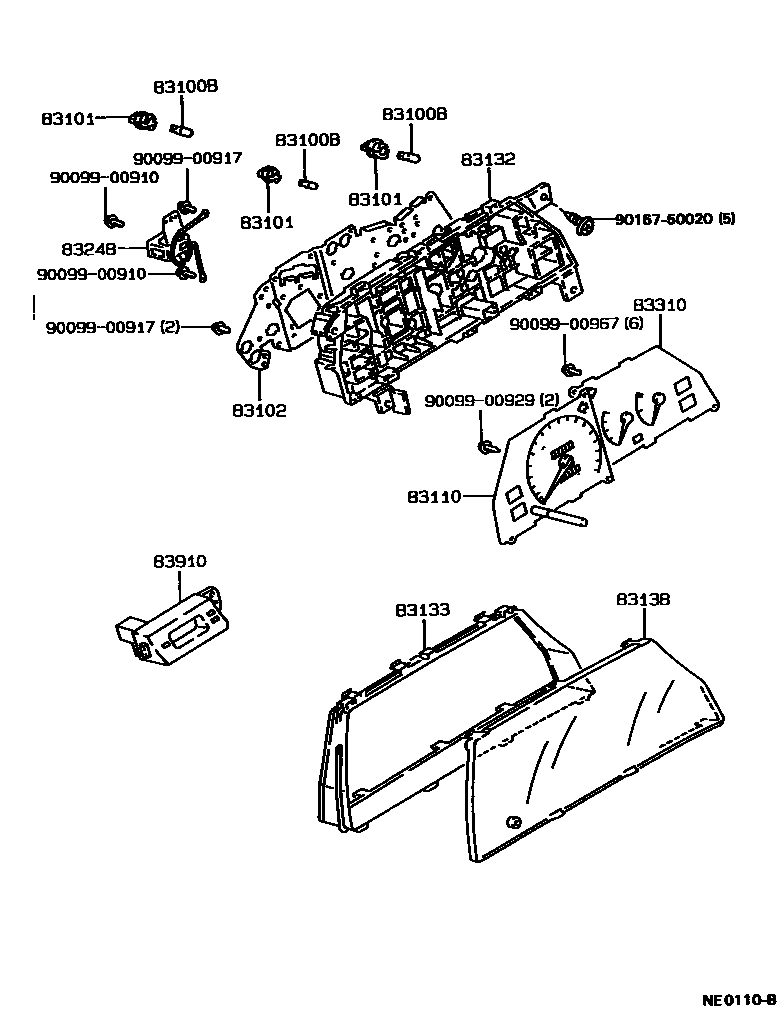

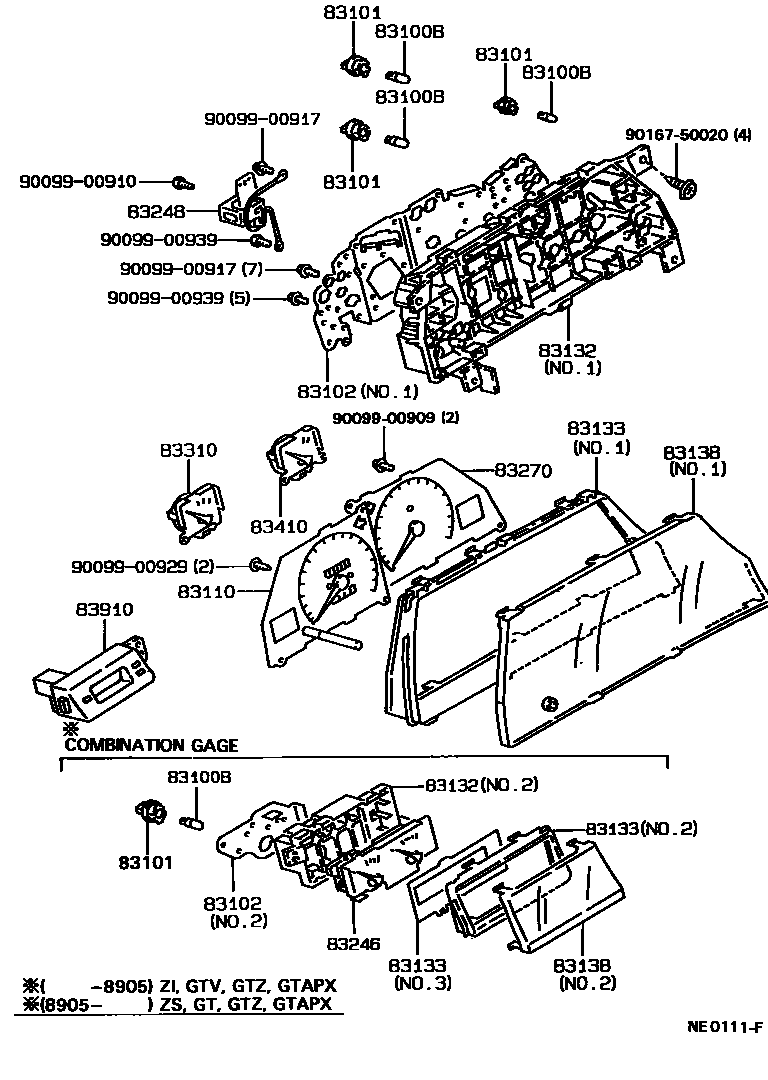

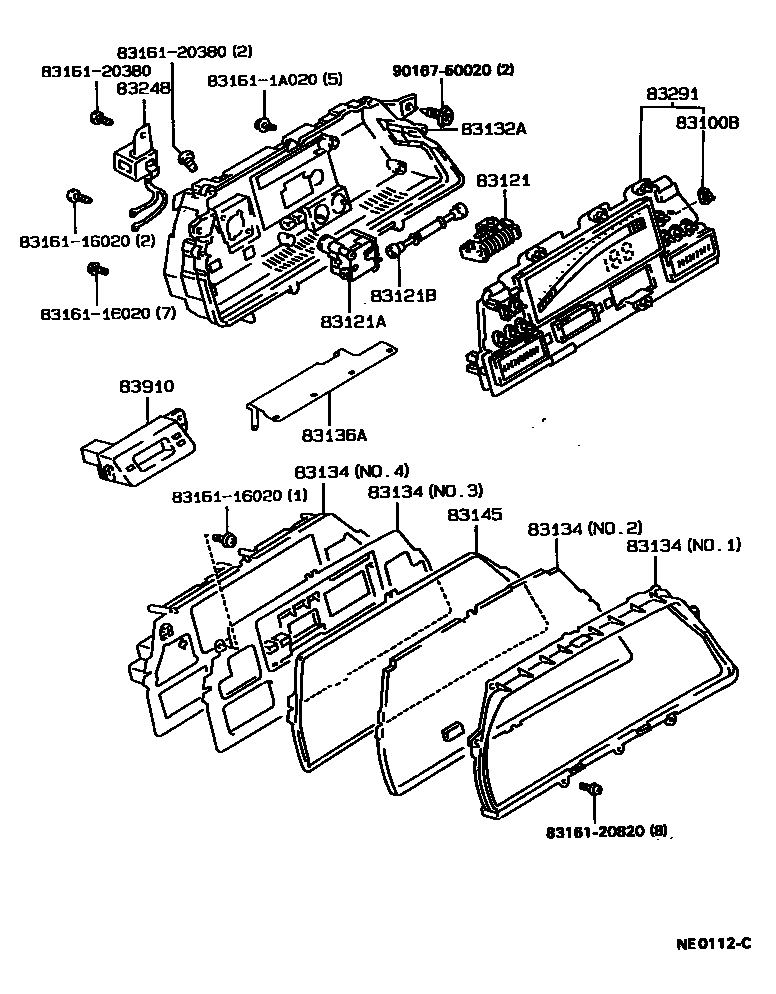

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-12030 · 83109-12040 · 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-13190 · 83247-13210 · 83247-13230 · 83247-13250 · 83247-13270 · 83247-13290 · 83247-13310 · 83247-13330 · 83247-13350 · 83247-13370 · 83247-1E020 · 83247-1E040 · 83247-1E060 · 83247-1E890 |
| 83110 | Speedometer assembly | 83110-1E140 · 83110-1E141 · 83110-1E150 · 83110-1E151 · 83110-1E160 · 83110-1E161 · 83110-1E170 · 83110-1E171 · 83110-1E570 |
| 83121 | total counter | 83121-1A020 · 83121-1A021 |
| 83121A | Speed sensor | 83121-1A040 |
| 83121B | Counter and sensor cables | 83121-1A060 |
| 83132 | Instrument cluster housing | 83132-1A030 · 83132-1A050 · 83132-1A070 · 83132-1A370 · 83132-1A390 · 83132-1A410 |
| 83132A | Instrument case | 83132-1A100 · 83132-1A101 |
| 83133 | Combined instrument panel No. 1 | 83133-1A190 · 83133-1A210 · 83133-1A230 |
| 83134 | Combination instrument cover No. 1 | 83114-1A020 · 83114-1E020 · 83134-1A180 · 83134-1A200 · 83134-1A220 · 83134-1A240 · 83136-1E020 |
| 83136A | Instrument combination cover | 83136-1A020 |
| 83138 | speedometer glass | 83138-12830 · 83138-12850 |
| 83145 | Instrument No. 1 lampshade | 83145-1A140 · 83145-1A200 |
| 83189 | instrument bracket | 83189-20020 |
| 83246 | Oil pressure gauge | 83246-12150 · 83246-12230 · 83246-12250 |
| 83248 | speed warning bell | 86640-12110 |
| 83270 | Engine tachometer assembly | 83242-1A570 · 83242-1A590 · 83242-1A610 · 83242-1A630 · 83242-1A650 · 83242-1A670 · 83242-1E090 · 83242-1E110 · 83242-1E130 · 83242-1E150 · 83242-1E170 · 83242-1E190 · 83242-1E210 · 83242-1E230 · 83242-1E250 |
| 83291 | Instrument cluster ECU | 83291-12060 · 83291-12061 · 83291-12070 · 83291-12071 · 83291-12090 |
| 83310 | Fuel gauge assembly | 83243-1A110 · 83243-1A130 · 83243-1A530 · 83243-1A550 · 83243-1A570 |
| 83410 | Water temperature meter assembly | 83244-1A530 · 83244-1A750 · 83244-1A770 |

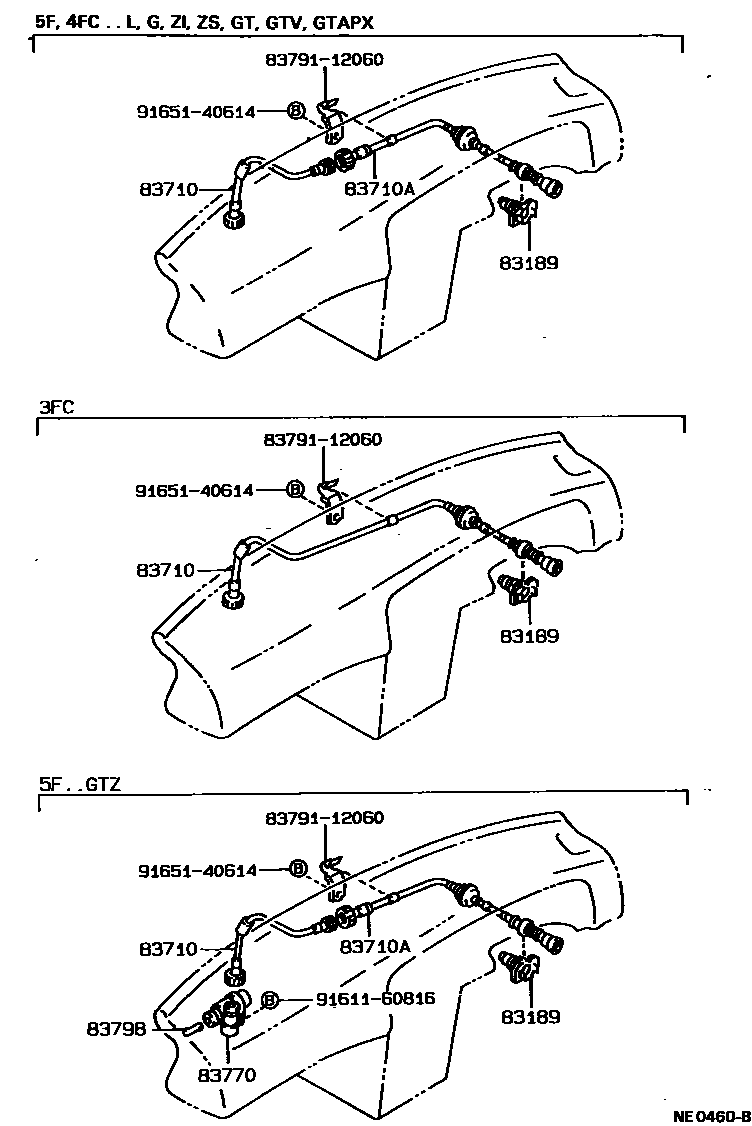

| 83710 | No. 1 speedometer transmission cable assembly | 83710-12460 · 83710-12461 · 83710-12480 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-12490 · 83710-12491 · 83710-12540 · 83710-12541 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-17010 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-17010 |
| 83910 | clock assembly | 83910-12420 |
