Toyota COROLLA 前转向灯 — Figure 8103

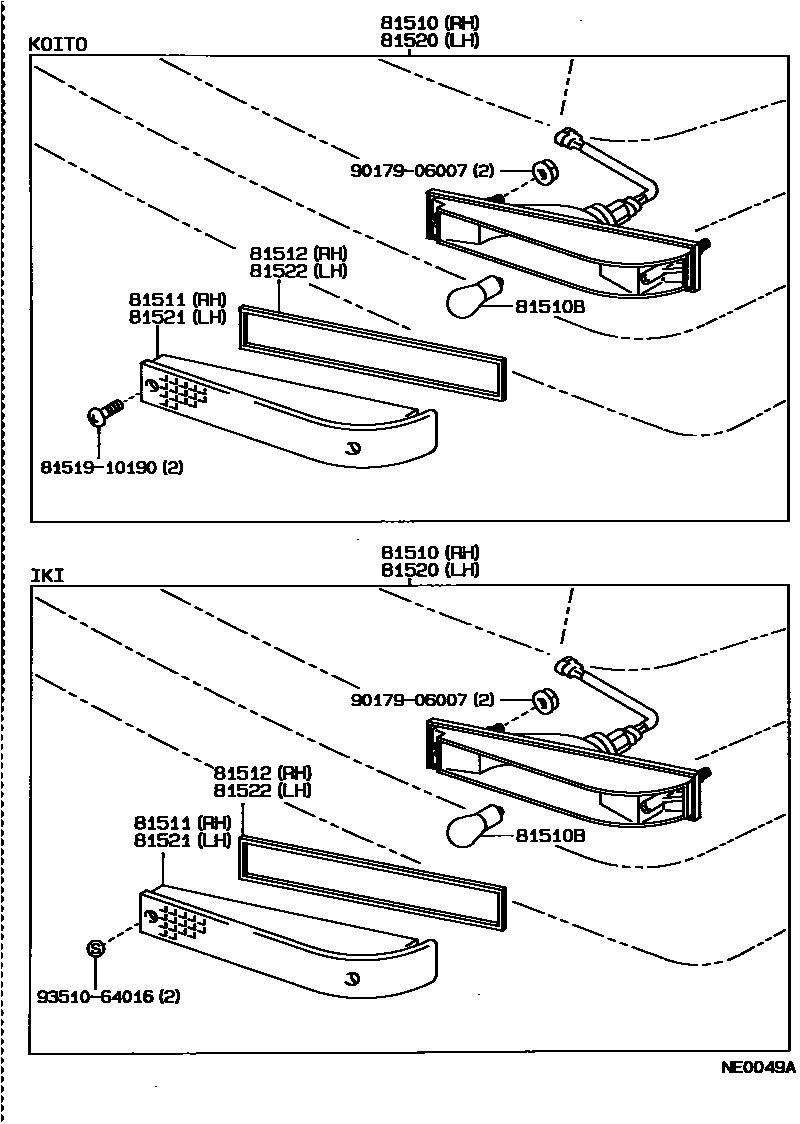

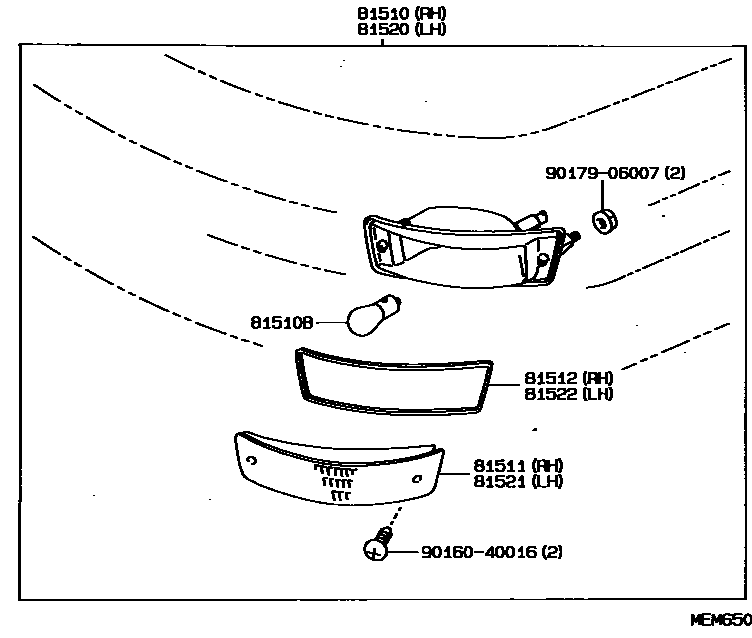

Toyota COROLLA EPC diagram 8103, 前转向灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-80049 · 81510-80050 · 81510-80066 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-12470 · 81511-12480 · 81511-12611 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12470 · 81512-12480 · 81512-12611 |
| 81520 | Left front turn signal lamp assembly | 81520-80049 · 81520-80050 · 81520-80066 |
| 81521 | Left front turn signal lamp cover | 81521-12450 · 81521-12460 · 81521-12611 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12470 · 81512-12480 · 81512-12611 |
