Toyota COROLLA Headlamp — Figure 8101

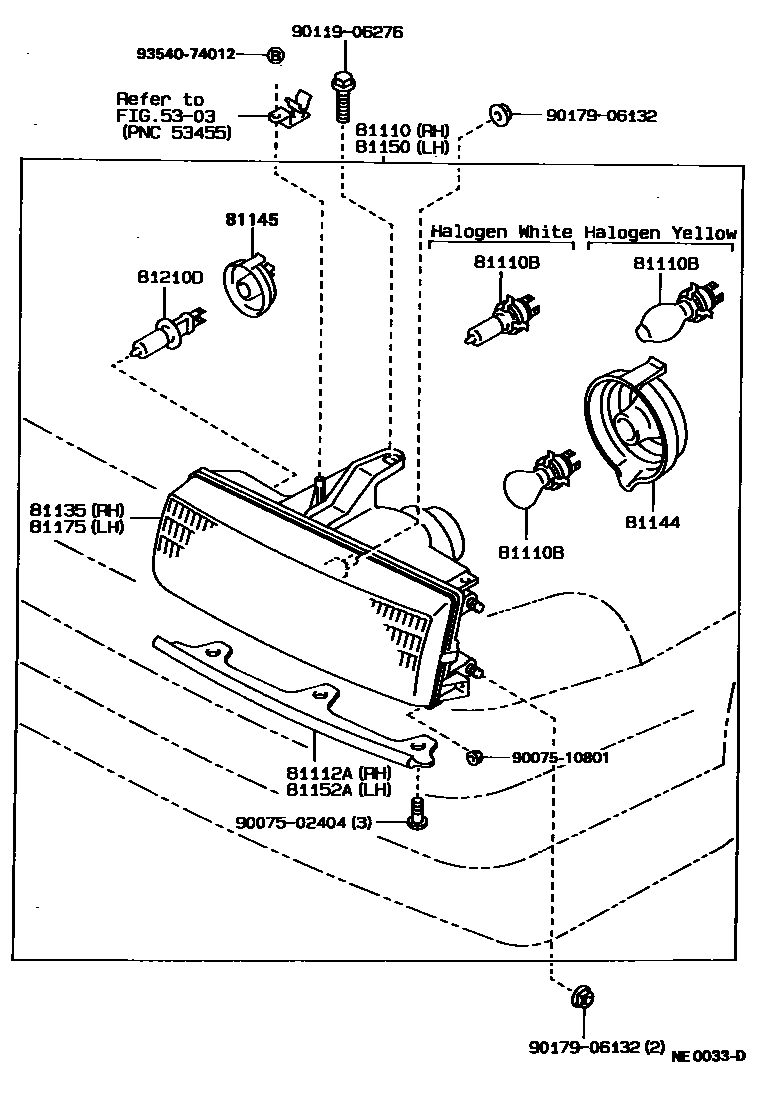

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-1A220 · 81110-1A330 · 81110-1A331 · 81110-1A470 · 81110-1A471 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13016 · 90981-13022 |
| 81112A | Right headlight frame | 81116-1A330 |
| 81135 | Right headlight assembly | 81130-1A220 · 81130-1A330 · 81130-1A331 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81145 | No. 2 headlight cover | 90075-99002 |
| 81150 | Left headlight assembly | 81160-1A260 · 81160-1A400 · 81160-1A401 · 81160-1A410 · 81160-1A411 |
| 81152A | Left headlight frame | 81156-1A400 |
| 81175 | Left headlight assembly | 81170-1A260 · 81170-1A400 · 81170-1A401 |
| 81210D | fog light bulb | 90981-13038 |
