Toyota COROLLA accelerator pedal connecting rod — Figure 7801

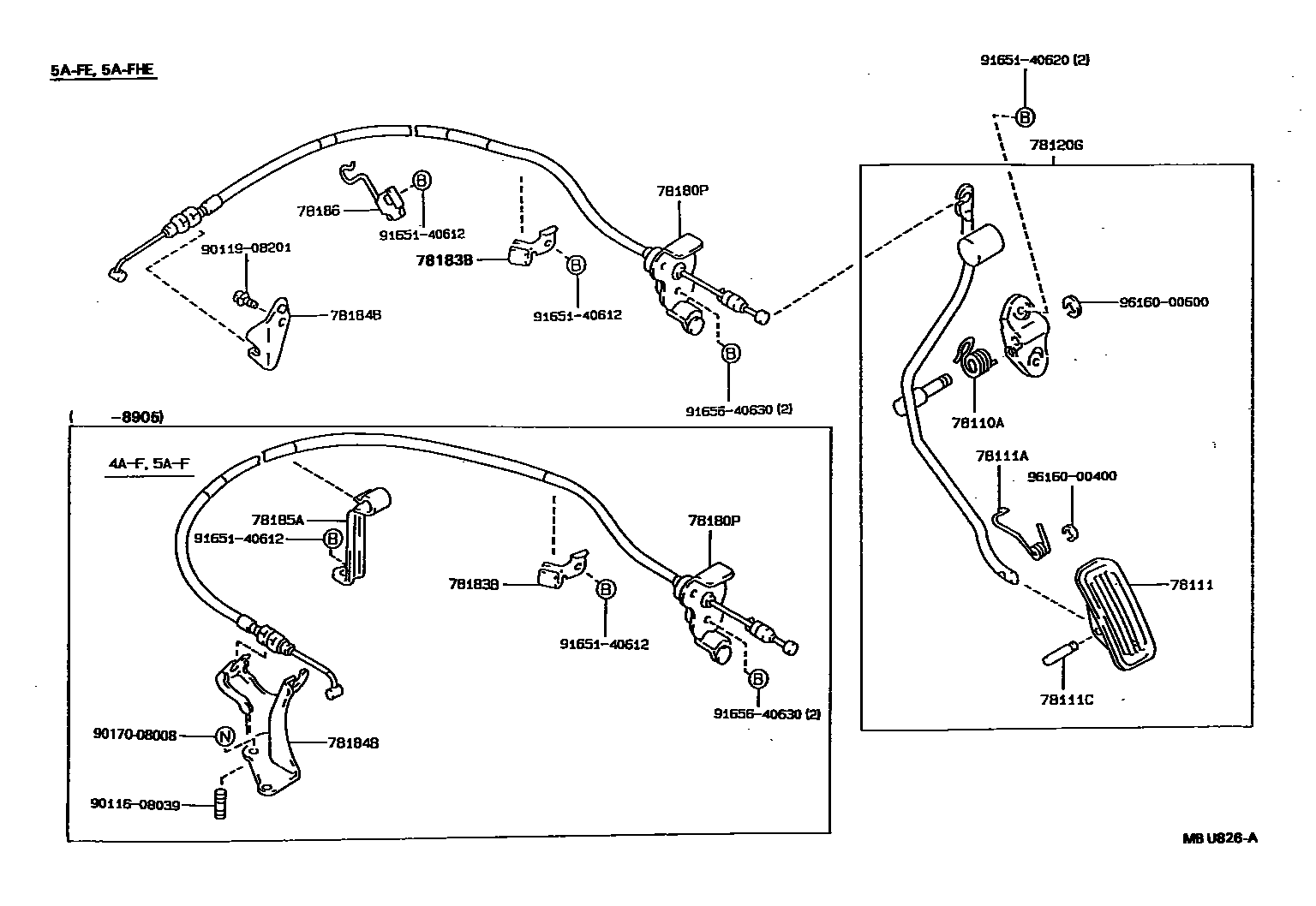

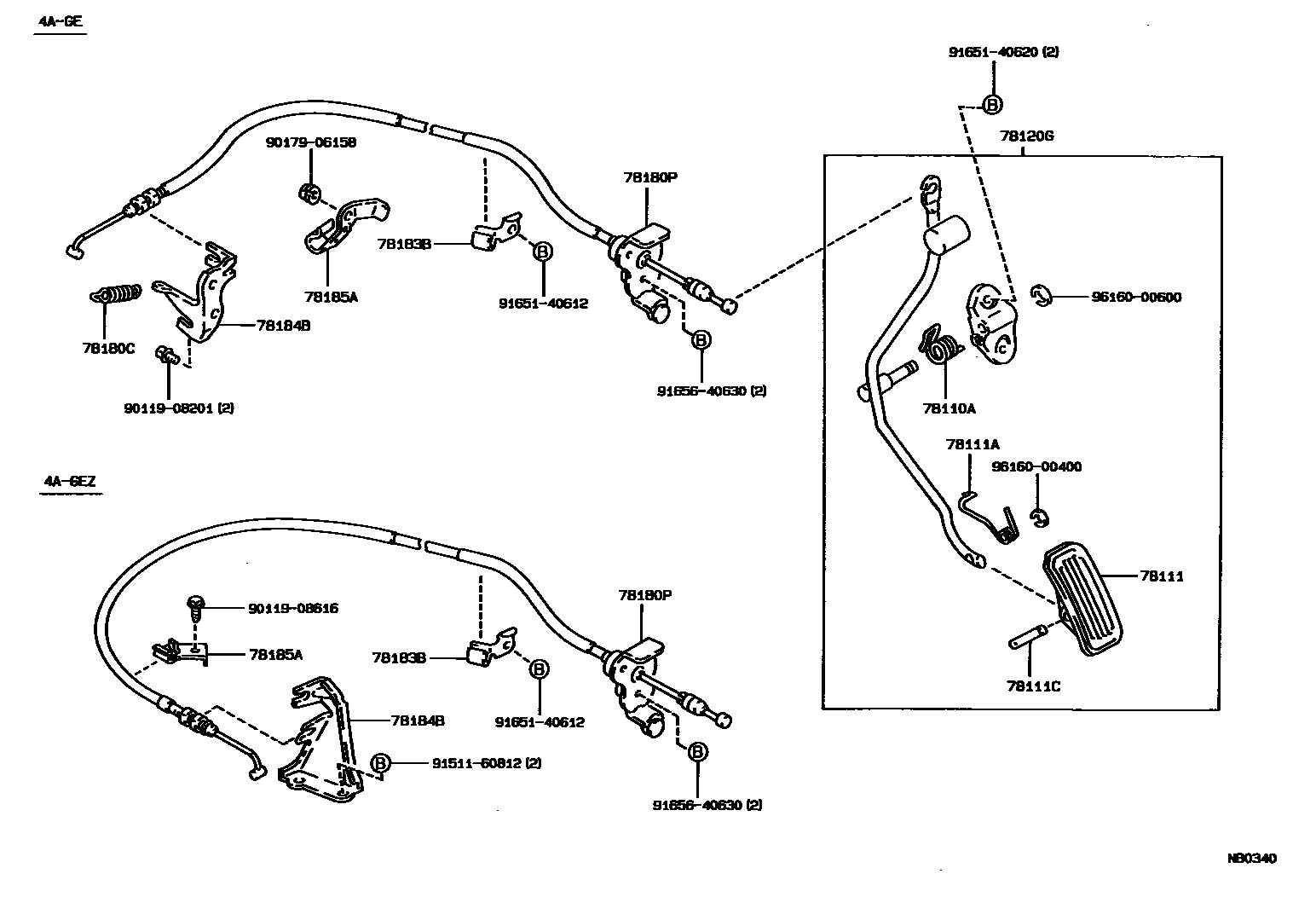

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12070 · 78120-12080 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78180P | Accelerator pedal control cable assembly | 78180-12780 · 78180-12870 · 78180-12871 · 78180-12880 · 78180-1A080 · 78180-1A081 · 78180-1A100 · 78180-1A101 · 78180-1A110 · 78180-1A151 |
| 78183B | Accelerator pedal control cable clip | 78183-12100 |
| 78184B | Throttle pedal control cable bracket | 78184-12220 · 78184-12230 · 78184-12240 · 78184-12260 · 78184-17030 |
| 78185A | No. 2 accelerator pedal control cable clip | 78183-12110 · 78183-12130 · 78183-12140 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12220 · 78186-12260 |
