Toyota COROLLA 挡泥板和扰流板 — Figure 7601

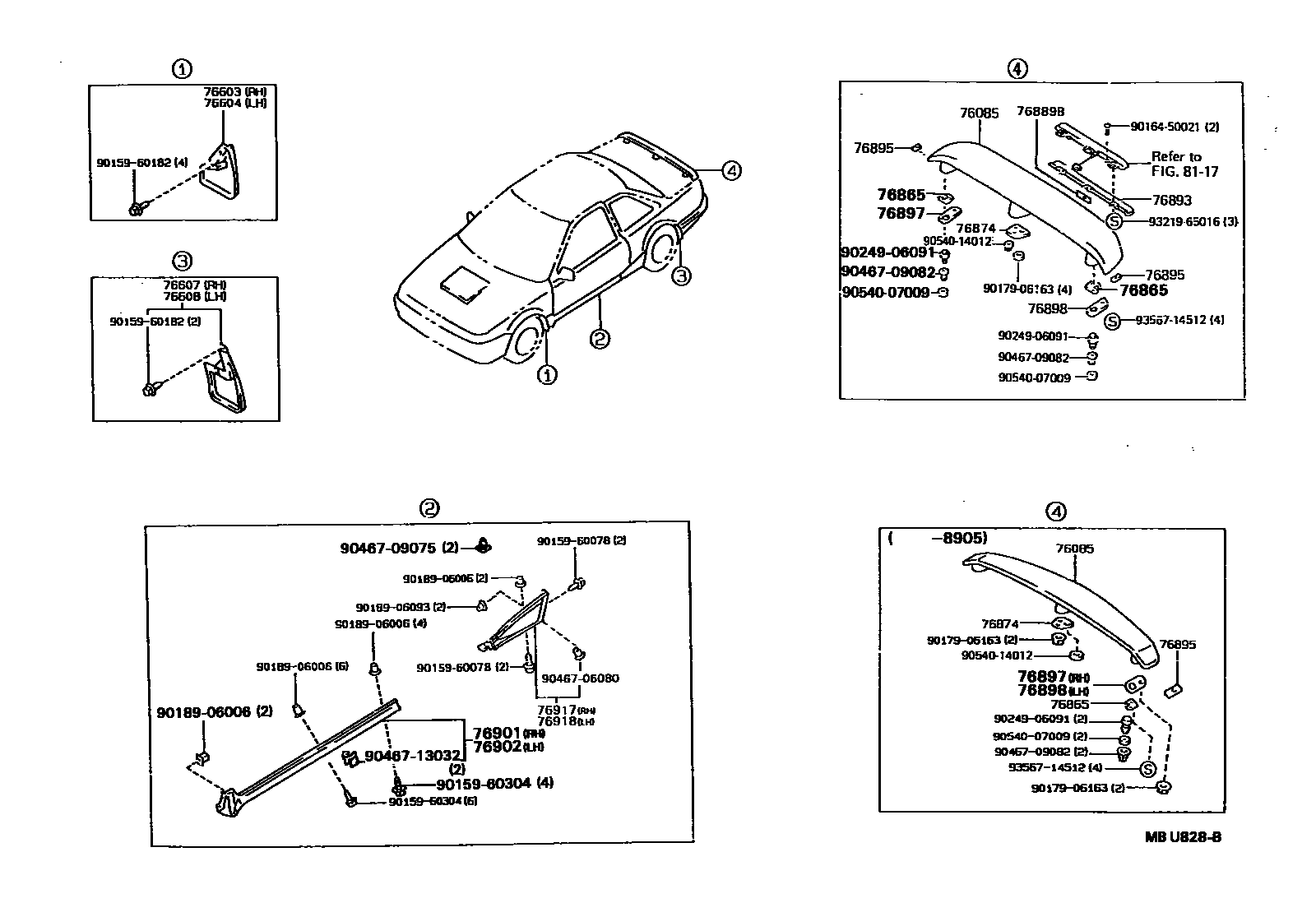

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-12902 · 76085-12908 |
| 76603 | Right front fender fender sub-assembly | 76621-12070 |
| 76604 | Left front fender fender sub-assembly | 76622-12070 |
| 76607 | Right rear side fender sub-assembly | 76607-19465 |
| 76608 | Left rear side fender sub-assembly | 76608-19465 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-12110 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12050 |
| 76889B | No. 1 rear spoiler seal | 76889-12020 |
| 76893 | No. 1 rear spoiler cover | 76893-12900 |
| 76895 | No. 5 rear spoiler protective strip | 76895-12020 |
| 76897 | Right rear spoiler protection strip | 76897-12010 |
| 76898 | Left rear spoiler protection strip | 76898-12010 |
