Toyota COROLLA 后防护条 — Figure 7504

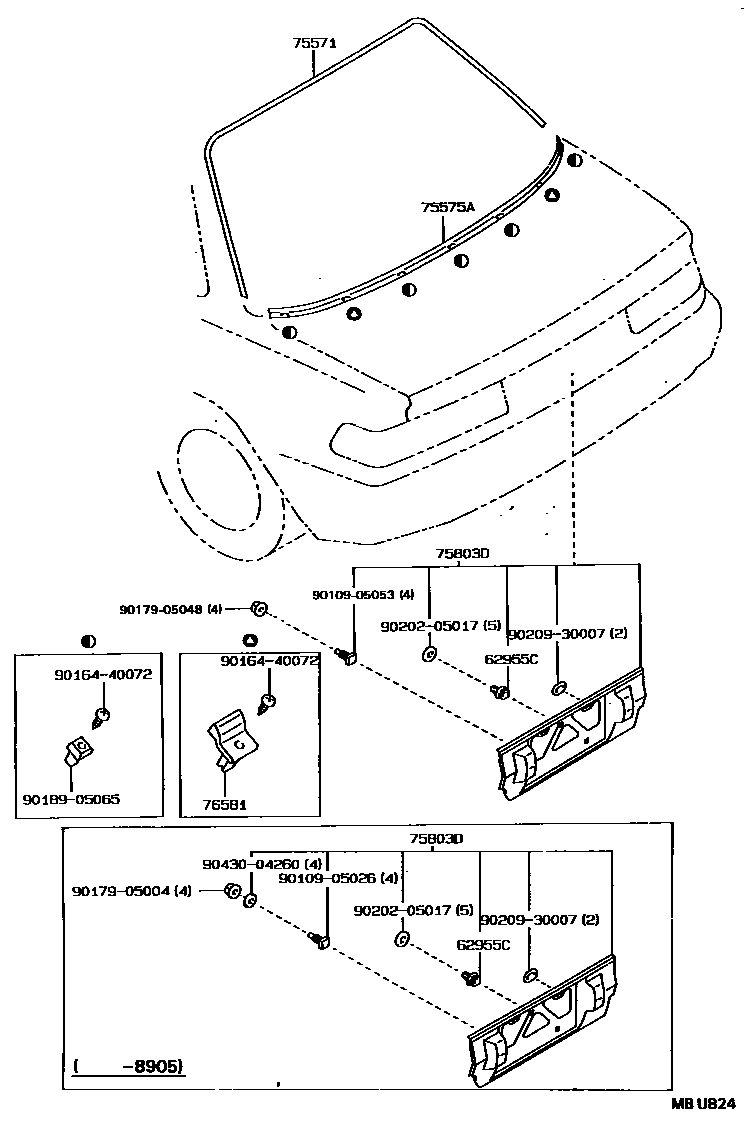

Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955C | Back door protective strip fixings | 62955-20020 |
| 75571 | Protective strips on the outside of the rear window | 75571-12270 · 75571-12280 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-12280 · 75575-12290 · 75575-12320 |
| 75803D | Rear door outer lower protective strip sub-assembly | 75803-12100 · 75803-12110 |
| 76581 | Rear window protective strip fixings | 76581-12010 |
