Toyota COROLLA 侧防护条 — Figure 7503

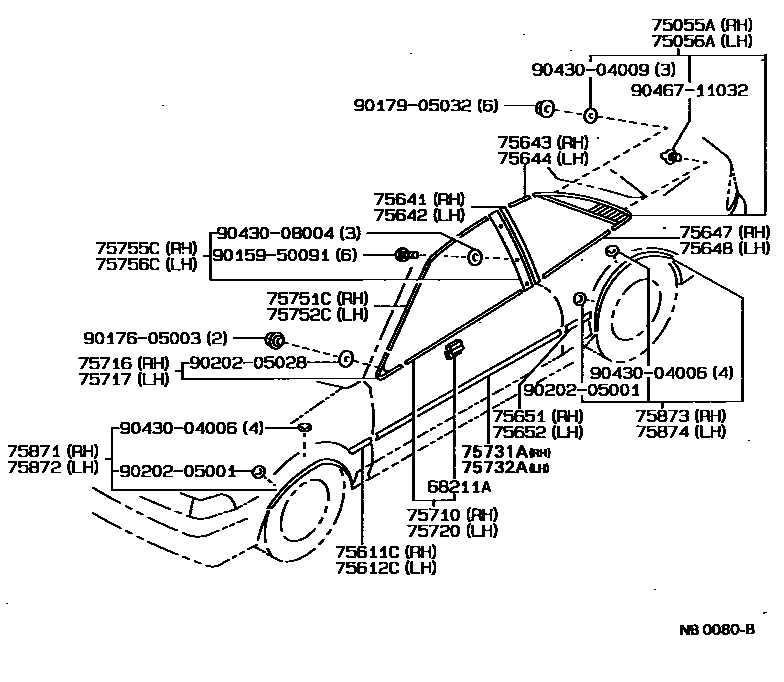

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68211A | Door belt line protection strip clip | 68211-12150 |
| 75055A | Right side enclosure outer decorative panel sub-assembly | 75055-12100 · 75055-12110 |
| 75056A | Left side enclosure outer decorative panel sub-assembly | 75056-12100 · 75056-12110 |
| 75611C | Right front fender outer protective strip | 75611-12340 · 75611-12360 · 75611-12380 · 75611-12420 |
| 75612C | Left front fender outer protective strip | 75612-12300 · 75612-12320 · 75612-12340 · 75612-12380 |
| 75641 | Right front corner window outer protective strip | 75641-12150 |
| 75642 | Left front corner window protection strip | 75642-12150 |
| 75643 | Protective strip on the outside of the right corner window | 75643-12060 · 75643-12070 · 75643-12090 |
| 75644 | Protective strip on the outside of the left corner window | 75644-12060 · 75644-12070 · 75644-12090 |
| 75647 | Right corner window outer lower protective strip | 75647-12060 · 75647-12070 · 75647-12090 |
| 75648 | Left corner window outer lower protective strip | 75648-12060 · 75648-12070 · 75648-12090 |
| 75651 | Right side outer protective strip | 75651-12740 · 75651-12760 · 75651-12820 · 75651-12880 |
| 75652 | Left side outer protective strip | 75652-12740 · 75652-12760 · 75652-12820 · 75652-12880 |
| 75710 | Right front door waistline protection strip assembly | 75710-12450 · 75710-12460 · 75710-12470 |
| 75716 | Right front door waistline front protective strip end cover | 75716-12070 · 75716-12080 · 75716-12090 |
| 75717 | Left front door waistline front protective strip end cover | 75717-12080 · 75717-12090 · 75717-12100 |
| 75720 | Left front door waistline protection strip assembly | 75720-12450 · 75720-12460 · 75720-12470 |
| 75731A | Right front door outer protective strip | 75731-1A060 · 75731-1A080 · 75731-1A190 · 75731-1A320 |
| 75732A | Left front door outer protective strip | 75732-12790 · 75732-12810 · 75732-1A030 · 75732-1A160 |
| 75751C | Right front door window frame front protective strip | 75751-12160 · 75751-12170 · 75751-12180 |
| 75752C | Left front door window frame front protective strip | 75752-12160 · 75752-12170 · 75752-12180 |
| 75755C | Right front door window frame rear protective strip | 75755-12080 |
| 75756C | Left front door window frame rear protective strip | 75756-12100 |
