Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

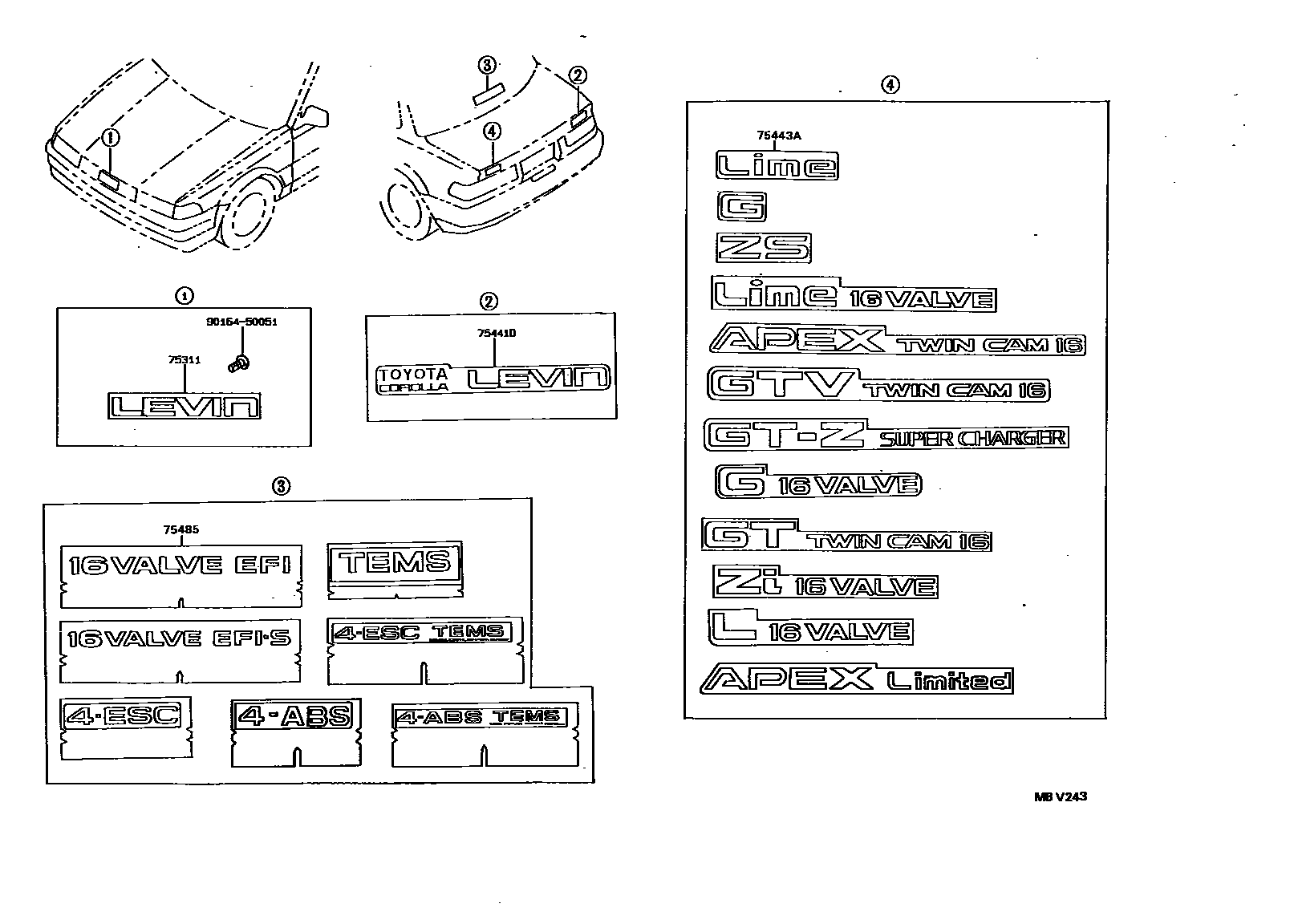

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A550 · 75311-1A620 · 75311-1A630 |
| 75441D | Trunk door No. 1 name plate | 75441-12610 · 75441-12630 |
| 75443A | Trunk door No. 3 nameplate | 75443-1A460 · 75443-1A530 |
| 75485 | Back window nameplate | 75485-12100 · 75485-12120 · 75485-12130 · 75485-12140 · 75485-12160 · 75485-12190 · 75485-12200 · 75485-12220 |
