Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

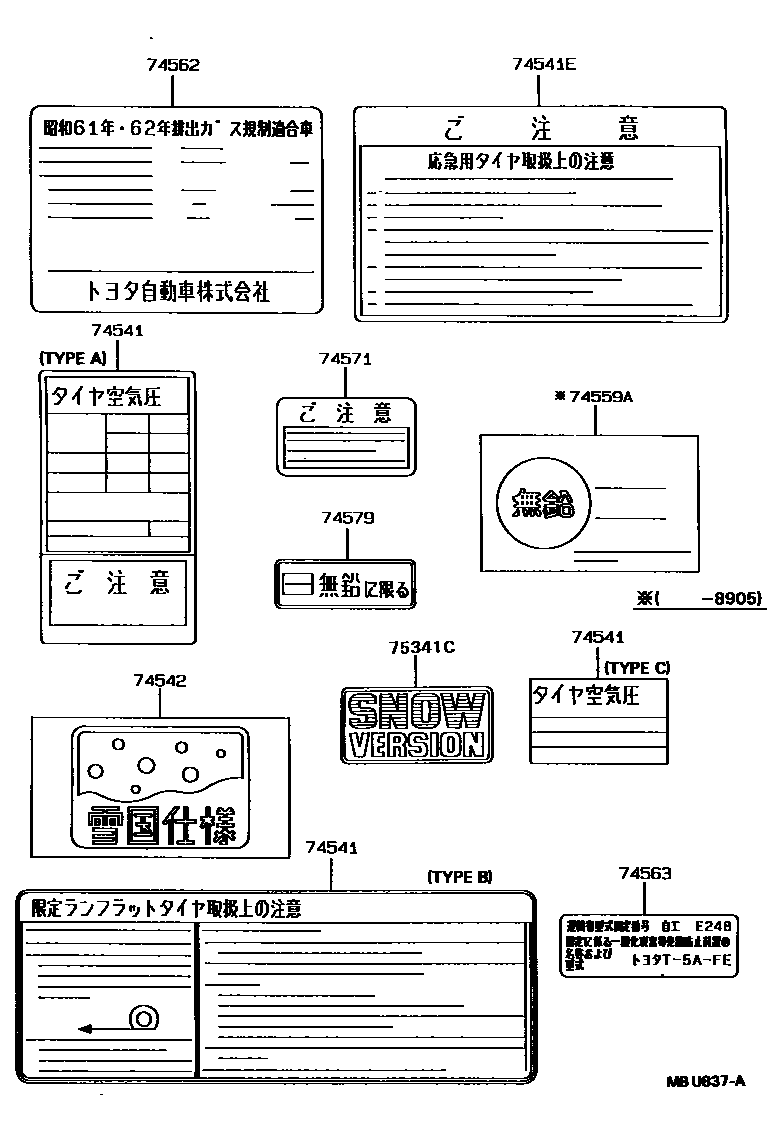

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74541 | tire pressure warning plate | 42661-12670 · 42661-12671 · 42661-12750 · 42661-12780 · 42661-12781 · 42661-12790 · 42661-12800 · 42661-1A170 · 42661-1A190 |
| 74541E | Small spare tire warning plate | 42668-32010 |
| 74542 | Rear window marking plate | 74542-12020 |
| 74559A | Fuel warning plate | 74559-14010 |
| 74562 | Emission control system information plate | 74562-12410 · 74562-12420 · 74562-12480 · 74562-17030 · 74562-20400 |
| 74563 | Emission control equipment identification plate | 74563-12150 · 74563-12160 |
| 74571 | Brake fluid warning plate | 47288-32010 |
| 74579 | Unleaded fuel warning nameplate | 74579-24010 · 74579-30011 |
| 75341C | engine cover plate | 75341-20060 |
