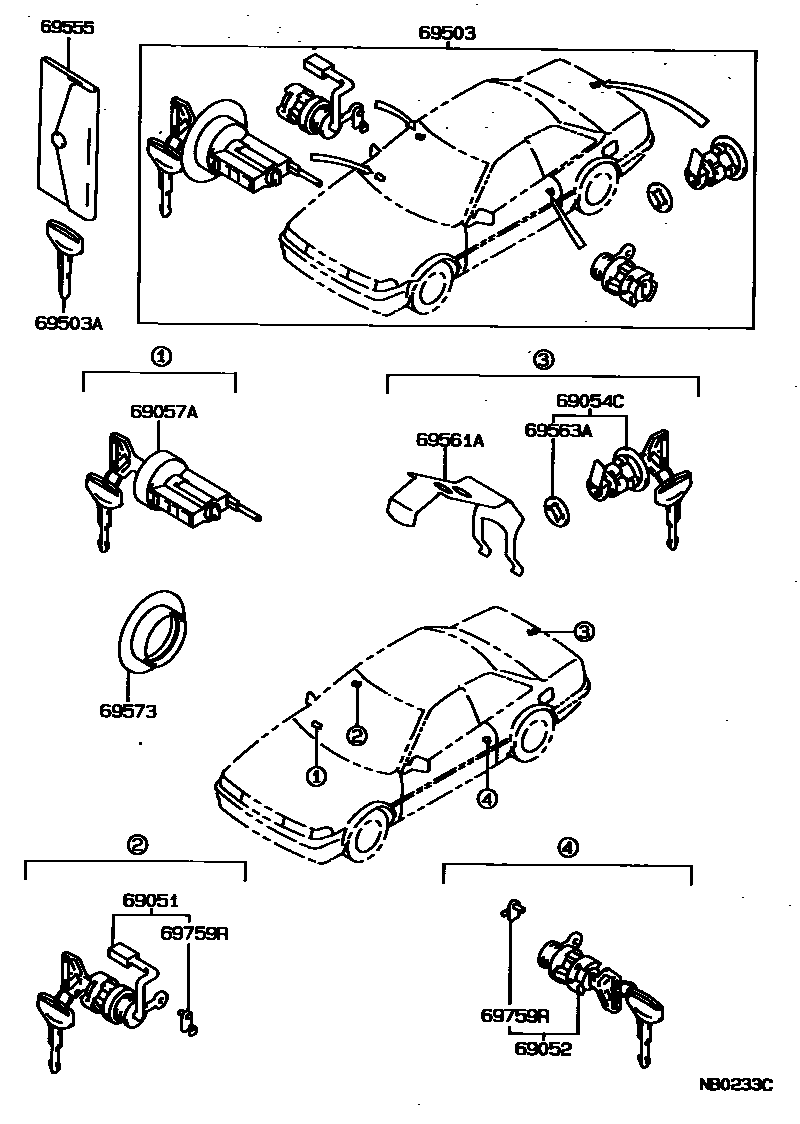

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12230 · 69051-12250 |
| 69052 | Left door lock cylinder and key assembly | 69052-12230 |
| 69054C | Luggage lock cylinder and key assembly | 69055-12510 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12080 |
| 69503 | Door lock cylinder components | 69005-12890 · 69005-1A010 |
| 69503A | external tooth key | 90999-00130 · 90999-00131 · 90999-00132 · 90999-00133 |
| 69555 | key cover | 69555-20010 |
| 69561A | Luggage lock core fixing parts | 69561-12190 |
| 69563A | Trunk door lock cylinder lining | 69563-32010 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69759R | Front door lock cylinder buckle | 69759-30040 · 69759-30050 |
