Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 33 PNC and OE references.

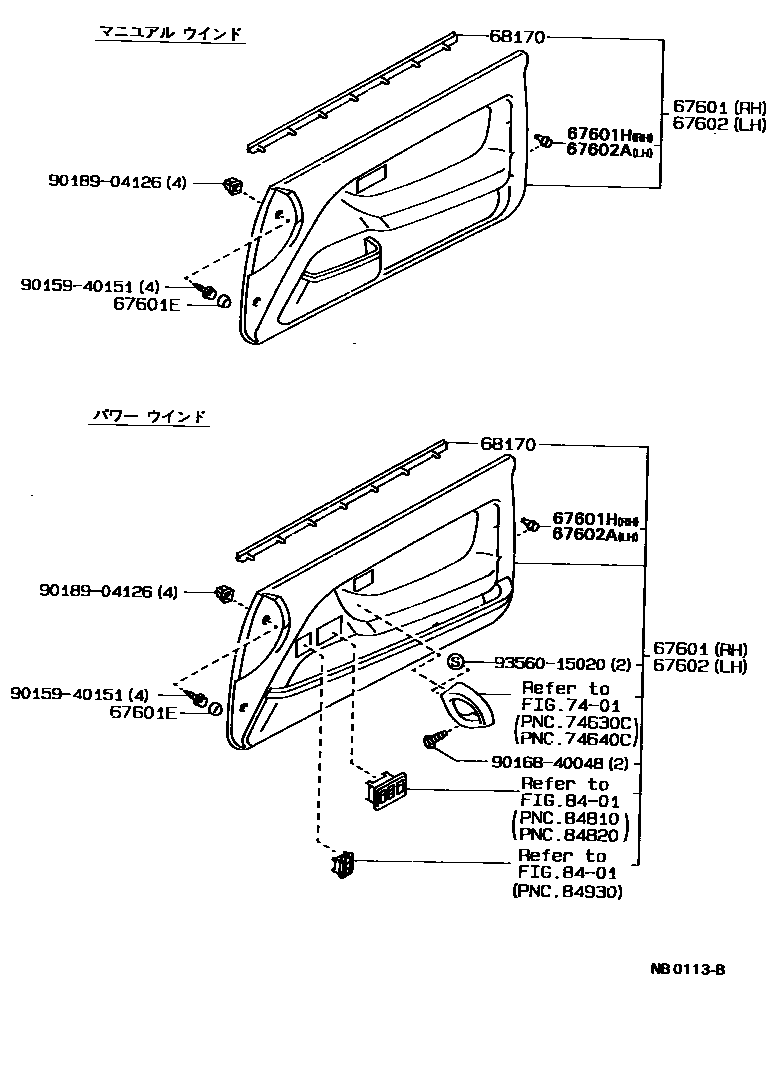

Toyota COROLLA 前门板和前门玻璃 EPC diagram — NB0113B
前门板和前门玻璃 — NB0113B (198705 – 999999)

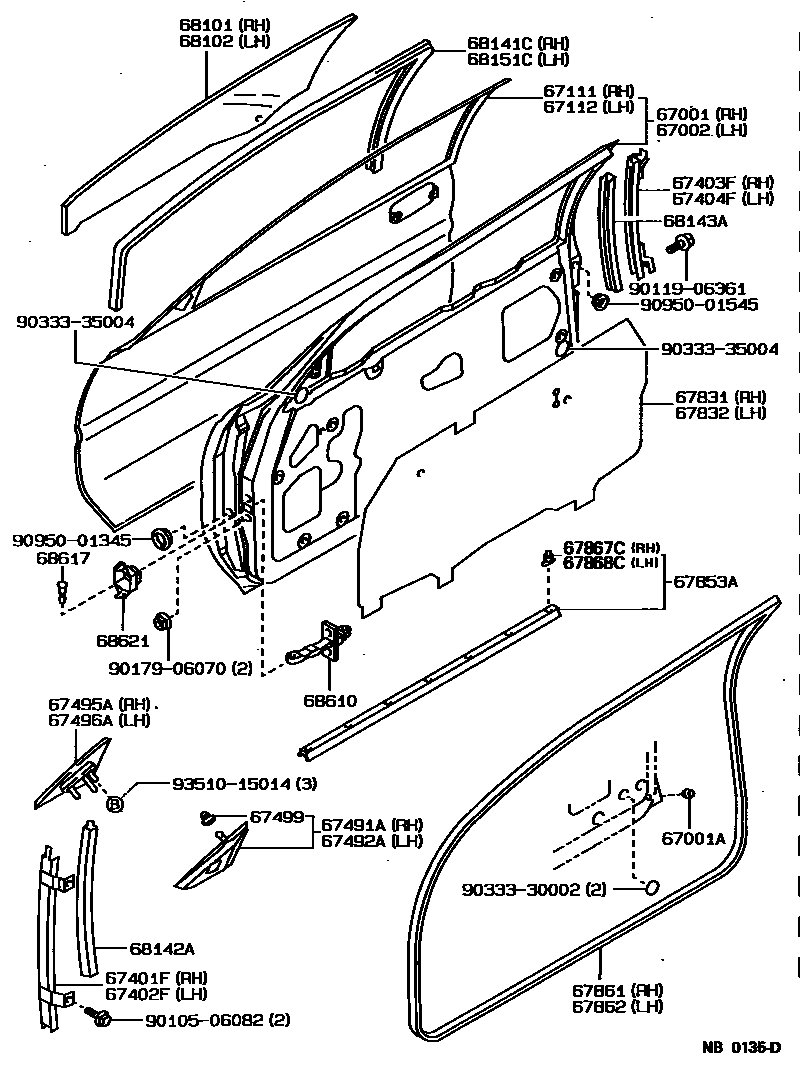

Toyota COROLLA 前门板和前门玻璃 EPC diagram — NB0135D
前门板和前门玻璃 — NB0135D (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-1A310 · 67001-1A360
67001AFront door panel cushion90541-09130
67002Left front door panel sub-assembly67002-1A290 · 67002-1A340
67111Outer right front door panel67111-12490
67112Outer left front door panel67112-12480
67401FRight front door front lower door frame sub-assembly67401-12300
67402FLeft front door front lower door frame sub-assembly67402-12320
67403FRight front door rear lower door frame sub-assembly67403-12120
67404FLeft front door rear lower door frame sub-assembly67404-12120
67491ARight front door lower door frame bracket decorative strip67491-12210
67492ALeft front door lower door frame bracket decorative strip67492-12210
67495ARight front door front lower door frame upper cover67495-12150
67496ALeft front door front lower door frame upper cover67496-12150
67499Front door lower door frame bracket trim strip fixing67499-12030 · 67499-32010
67601HRight door trim panel fixing67771-12040 · 67771-12050
67602ALeft door trim panel fixing67771-12040 · 67771-12050
67831Right front door access hole cover67831-12450
67832Left front door access hole cover67831-12450
67853AFront door outer lower seal strip67853-12030
67861Right front door seal67861-12650
67862Left front door seal67861-12650
67867CRight front door seal strip fixing67868-12020 · 67868-12050
67868CLeft front door seal strip fixing67868-12020 · 67868-12050
68101Right front door glass sub-assembly68111-12720 · 68111-12750 · 68111-12790
68102Left front door glass sub-assembly68112-12720 · 68112-12750 · 68112-12790
68141CRight front door glass lift channel68141-12370
68142AFront door glass side lift slot68142-12150 · 68144-12070
68143AFront door glass lift channel No. 268143-12100 · 68145-12060
68151CLeft front door glass lift channel68151-12090
68170Front door glass inner sealing strip assembly68170-12290 · 68220-12200
68610Front door opening limiter assembly68610-12060
68617Front door opening limiter pin68617-90K00
68621Door opening limiter seal68621-12020
