Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

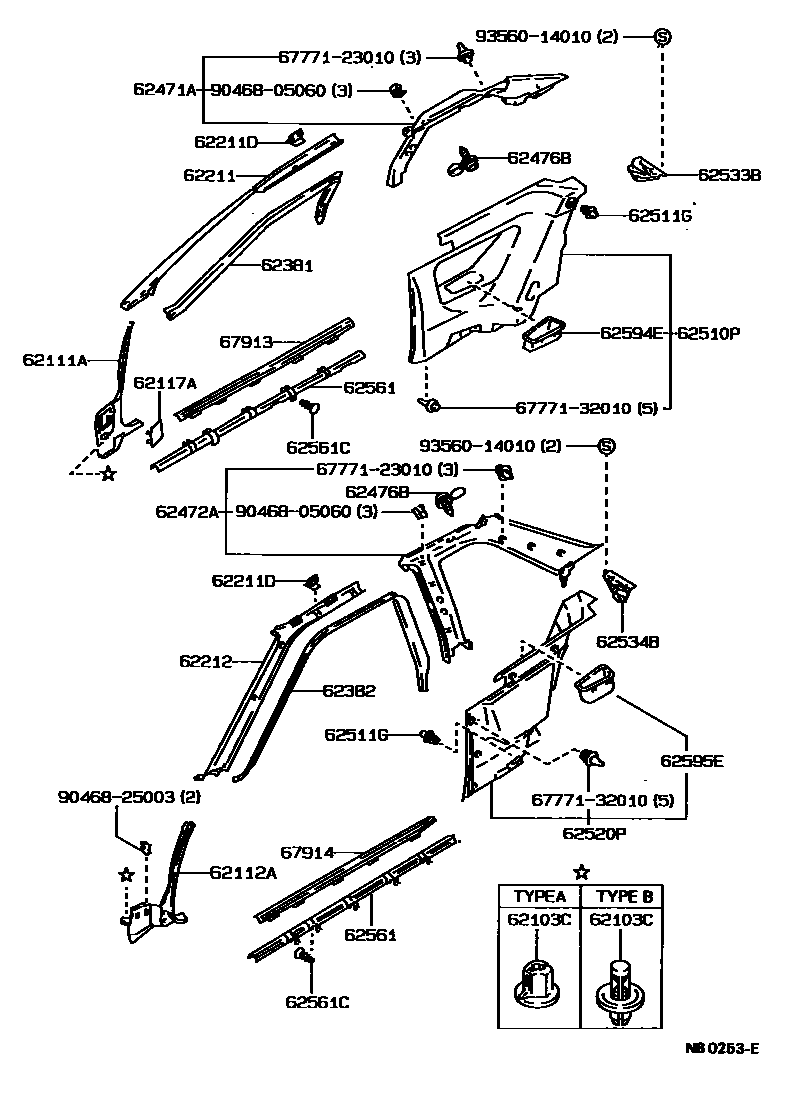

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103C | Front wall side trim panel fixing clips | 90467-05050 |
| 62211D | Clip (for body front pillar decorative panel) | 90468-05060 |
| 62381 | Right front roof rail sealing strip | 62381-12170 |
| 62382 | Left front roof rail sealing strip | 62382-12180 |
| 62533B | Right side decorative panel bracket | 62533-12120 |
| 62534B | Left side decorative panel bracket | 62534-12050 |
| 62561 | Front door inner sill protection strip | 62561-12050 · 62562-12030 |
