Toyota COROLLA 角窗 — Figure 6103

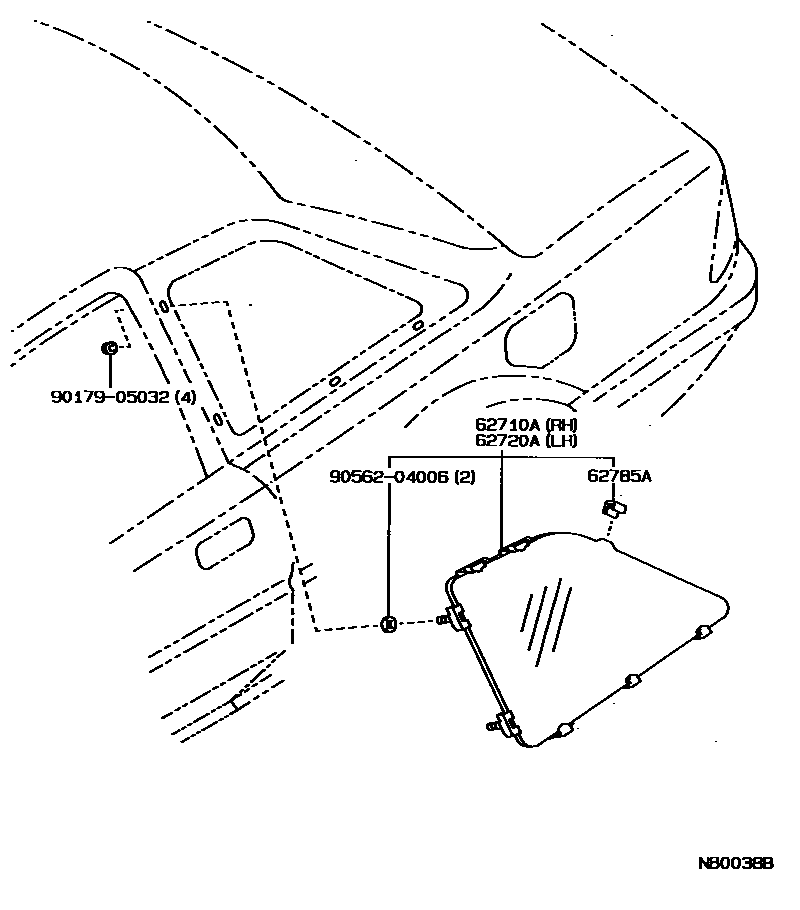

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62710A | Right corner window assembly | 62710-12550 · 62710-12560 · 62710-12660 |
| 62720A | Left corner window assembly | 62720-12550 · 62720-12560 · 62720-12660 |
| 62785A | Corner window glass spacer | 62785-12030 |
